Woods BATWING BW12E - Center Deck Drive Assembly; Wing Drive Assembly

46 Parts
MAN1126 (1/9/2015)

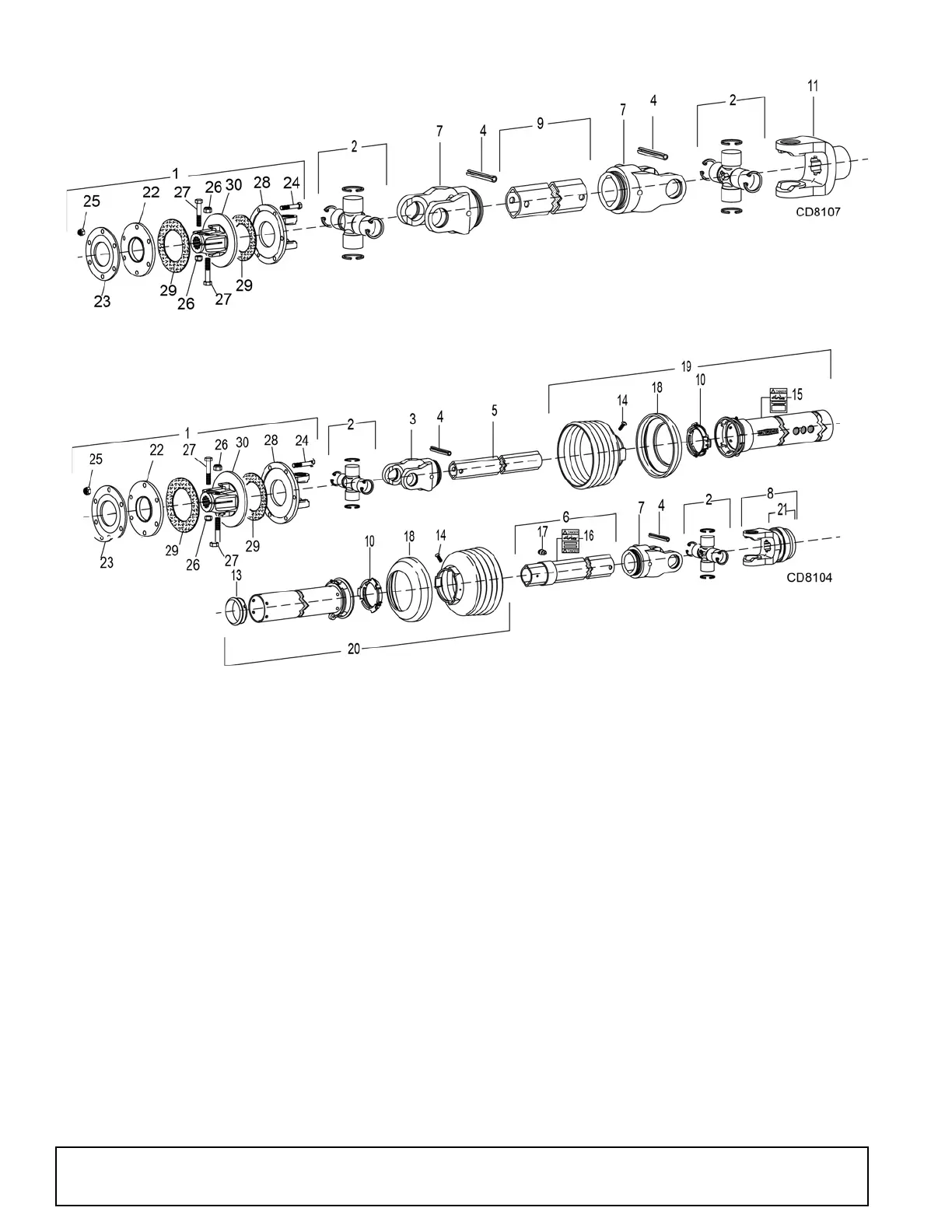

CENTER DECK DRIVE ASSEMBLY
WING DRIVE ASSEMBLY
REF PART PART QTY DESCRIPTION
CENTER
DECK DRIVE
WING
DRIVE
A 1038049 1038095 Complete drive assem-
bly
1 1029960 1029960 1 Friction clutch
2 38478RP 38478RP 2 Cross and bearing kit
3 1029963 1 Inboard yoke
4 40775 40775 2 10 x 65 Spring pin
5 40583 1 Inner profile
6 1029964 1 Profile & sleeve
7 1029961 1029961 1 Inboard yoke
8 38498 1 Yoke 1-3/8-6 SPL assy
9 40592 1 Outer profile
10 40776 2 Bearing ring
11 1029962 1 Slip yoke
13 40780 1 Support bearing
14 40778 2 Screw, package of 10
15 18864RP 1 Decal, danger
16 33347RP 1 Decal, danger
REF PART PART QTY DESCRIPTION
CENTER
DECK DRIVE
WING
DRIVE
17 40779 1 Grease fitting
18 1029932 2 Reinforcing collar
19 1029965 1 Outer guard half
20 1029966 1 Inner guard half
21 40589 1 1.375-6&21 Slide collar kit
22 57434 57434 1 Thrust plate
23 57435 57435 1 Belleville spring
24 57259 57259 6 M10x1.5Px55mm HHCS
8.8
25 57260 57260 6 M10 x 1.5P Hex lock nut
26 57261 57261 2 M12 x 1.75P Hex lock nut
27 57262 57262 2 M12x1.75Px65mm HHCS
8.8
28 57431 57431 1 Flange Yoke
29 57432RP 57432RP 1 Friction Disc (pkg of 2)
30 57440 57440 1 Hub, 1-3/4, 20 Spline
