Woods BATWING BW12E - 5-Bolt Wheel & Tire Assembly

Parts 47
MAN1126 (1/9/2015)

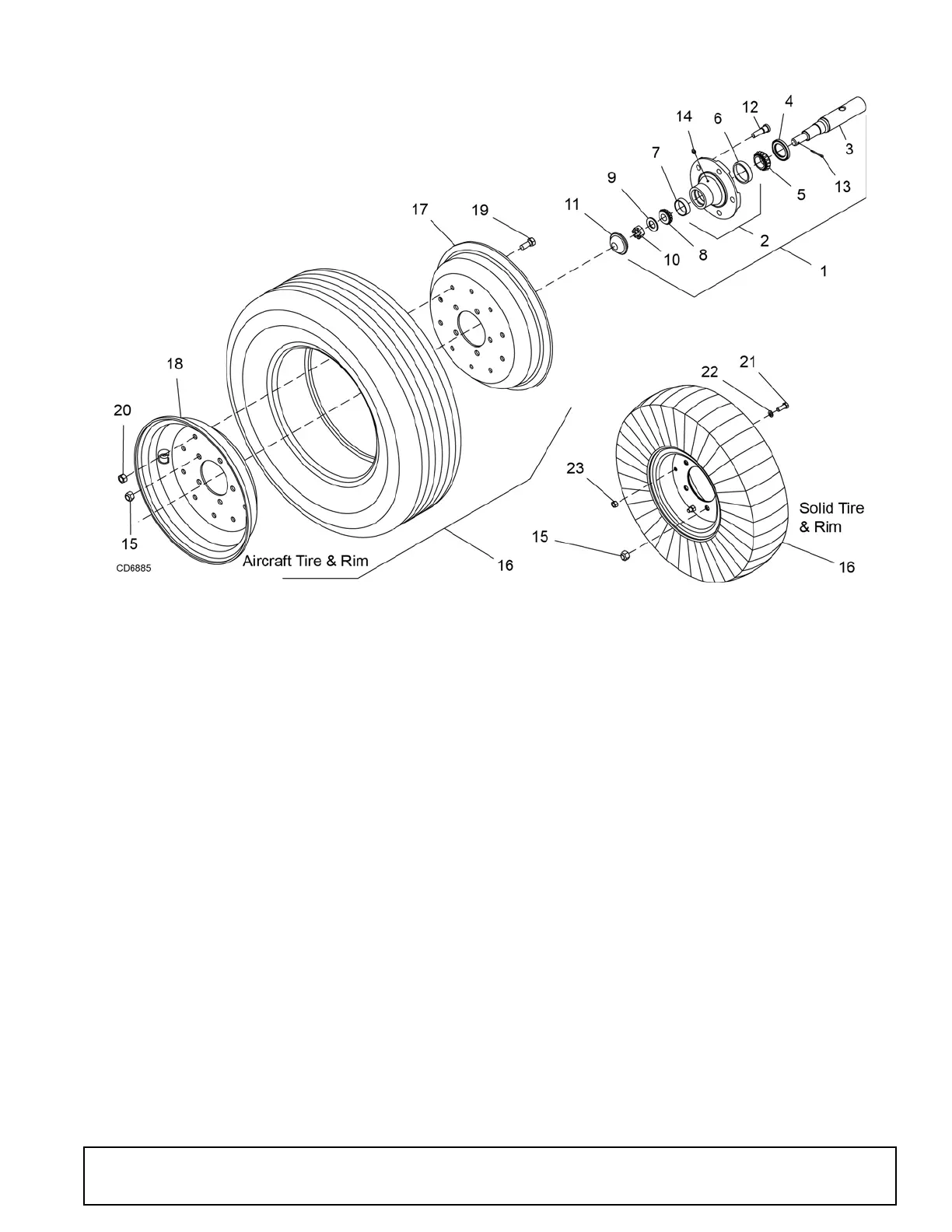

5-BOLT WHEEL & TIRE ASSEMBLY
REF PART QTY DESCRIPTION
1 1017050RP 1 Heavy hub assembly
(includes items 1 through 15)
2 1017034RP 1 Heavy wheel hub with cups
(includes items 6,7,14)
3 1017033RP 1 Axle
4 1017027RP 1 Seal
5 1017028RP 1 Bearing cone
6 1017036RP 1 Bearing cup
7 1017037RP 1 Bearing cup
8 1017029RP 1 Bearing cone
9 1017031RP 1 Washer
10 1017032RP 1 Castle nut
11 1017035RP 1 Hub cap
12 1017038 5 Stud
13 1017069 1 Cotter pin
14 1017067 1 Grease fitting
15 35317 5 Nut, lug 1/2 NF
16 1017040 1 533.4 mm (21") Solid laminate tire,
rim & hardware - 5 bolt -or-
REF PART QTY DESCRIPTION
16 1028820 1 609.6 x 184.2 x 304.8 mm (24" x
7.25" x 12") Aircraft tire,
rim & hardware - 5 bolt -or-
16 1028820F 1 609.6 x 184.2 x 304.8 mm (24" x
7.25" x 12") Aircraft tire,
rim & hardware, foam filled - 5 bolt
16 1039976 1 Whl assy 25.5x8-14 20 PR TRAKS
-or-
16 1039976F 1 Whl assy 25.5x8-14 Foam TRAKS
17 1028821 1 304.8 x 152.4 mm (12.0" x 6") Rim
half (for 609.6 mm (24") aircraft
wheel only) -or-
18 1028822 1 304.8 x 152.4 mm (12.0" x 6") Rim
half (for 609.6 mm (24") aircraft
wheel only)
19 6100RP * 1/2 NC x 1-1/4 HHCS GR5
20 765 * 1/2 NC Lock nut
21 19887 * 3/8 NC x 1 HHCS GR8
22 838RP * 3/8 Standard lock washer
23 835 * 3/8 NC Hex nut
- 1017042 2 Rim half for 152.4 x 228.6 mm (6" x
9" solid tire
* Standard hardware, obtain locally
(Rev. 3/11/2015)
