Woods BATWING BW12E - Page 45

Parts 45
MAN1126 (1/9/2015)

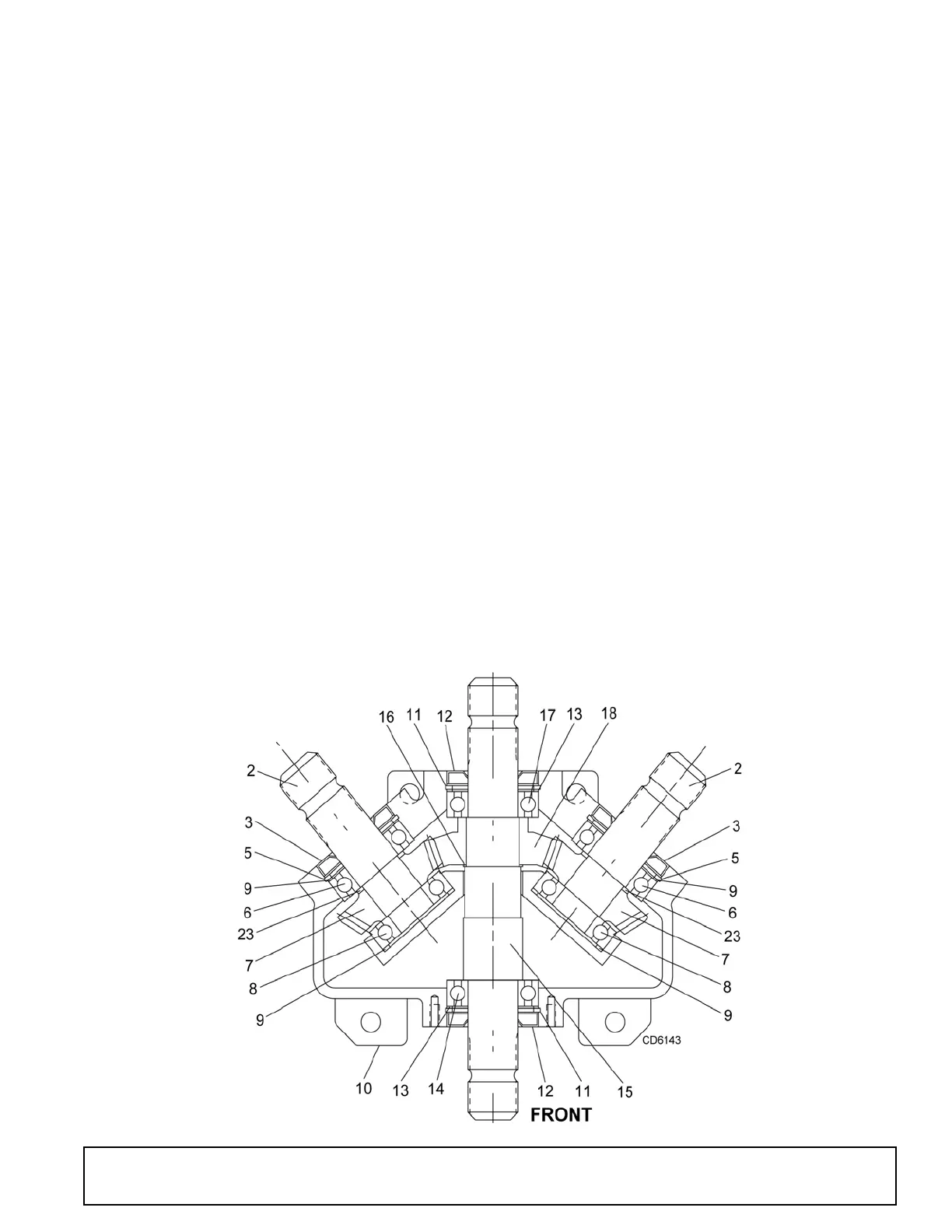

SPLITTER GEARBOX ASSEMBLY
REF PART QTY DESCRIPTION
1 1038897 - Complete splitter gearbox
2 1005308 2 Shaft 1-3/4-20 spline, wing
3 1005304 2 Oil seal
4 ------- 2 3/8 Plug (not shown)
5 39251 2 Snap ring
6 20891 2 Bearing
7 1005305 2 Gear
8 39414 2 Bearing
9 1005306 4 Shim
10 ------- 1 Casting
11 57320 2 Snap ring
12 57318RP 2 Oil seal
13 1005307 2 Shim
14 1034979 1 Bearing
15 1005303 1 Shaft 1-3/4-20 spline, center
16 1005309 1 Snap ring
17 1034979 1 Bearing
18 1005310 1 Gear
19 57076 1 1/2 Breather
20 2472 * 5/16 Lock washer, standard
21 ------- * M8 x 30 mm HHCS CL 8.8
22 1005311 1 Cover
23 20895 2 Snap ring
* Standard hardware, obtain locally
(Rev. 9/27/2018)
