40 Parts
MAN1126 (1/9/2015)

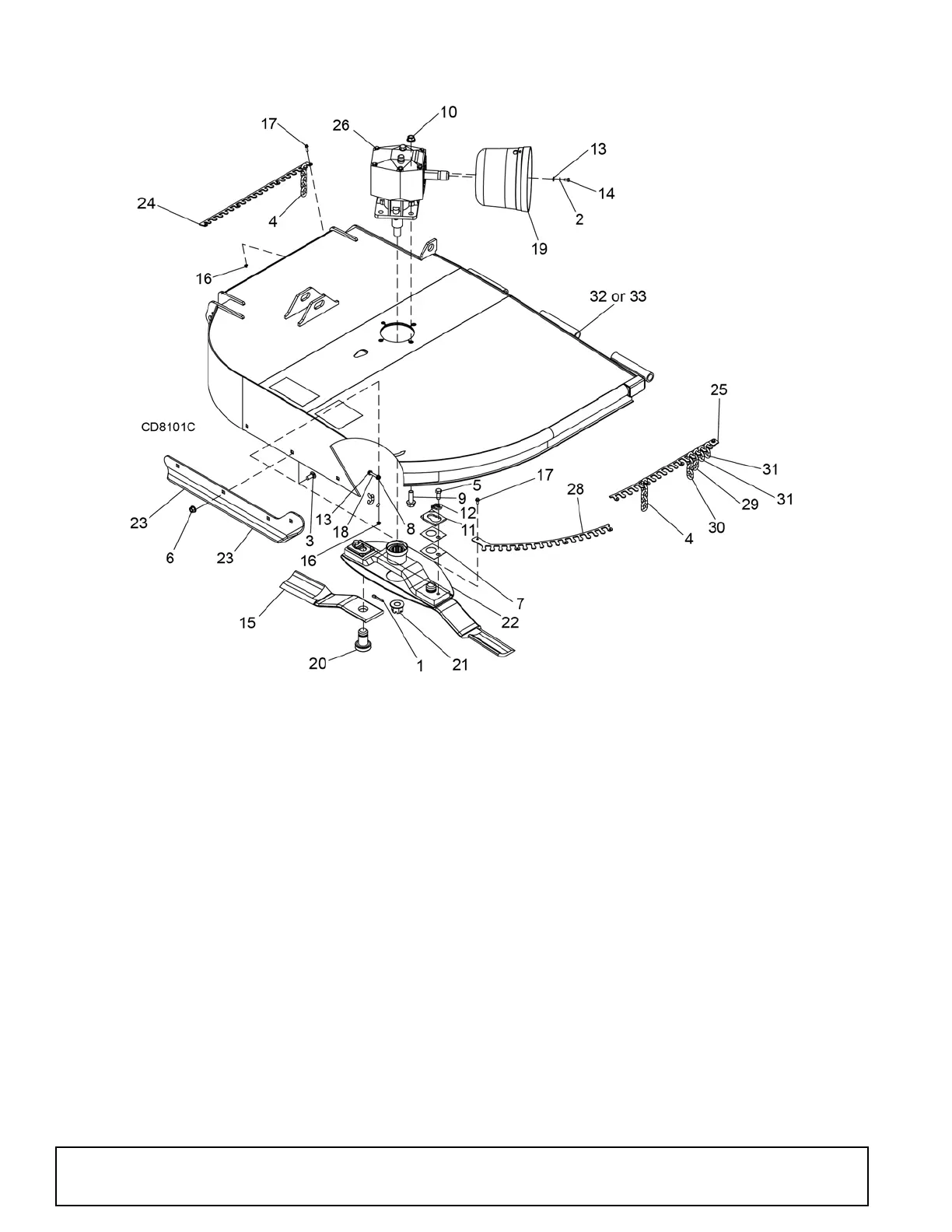

WING ASSEMBLY
REF PART QTY DESCRIPTION
1 1285RP * 1 1/4 x 1-1/2 Cotter pin
2 2472 * 4 5/16 Lock washer ZP
3 2615 * 4 1/2 NC x 1-1/4 Carriage bolt ZP
4 3994 54 5/16 Chain 5 link
5 6100RP * 2 1/2 NC x 1-1/4 HHCS GR5 ZP
6 11900RP * 4 1/2 NC Flanged lock nut
7 13946RP 2 Shim, 20 GA, 1-1/2 blade pin
8 14139RP * 1 5/16 NC Flanged lock nut HD ZP
9 1038890 4 5/8 NC x 2 Hex flanged screw GR8
10 19025RP * 4 5/8 NC Flanged lock nut
11 32603RP 2 Keyhole plate - special
12 32604 2 Blade pin lock clip - special
13 35155RP * 5 5/16 SAE Flat washer ZP
14 39254 4 M8-1.25P x 14mm HHCS CL8.8
15A 57099KT 1 Blade kit 57099 (right wing) -or-
15B 1003490KT 1 Blade kit 1003490 (left wing)
16 70065 * 12 1/4 NC Whiz nut
17 70046 12 .25-20 x .75 Hex/MR Whiz bolt
18 300105 * 1 5/16 NC x 2 HHCS GR5 ZP
19 1002048RP 1 Clutch shield, 100&143 MM BC
20 1009199RP 2 2.04 Pin/blade
21 1018331 * 1 1-14 Slotted flanged nut
22 1037979RP 1 Crossbar wing
23A 1038044RP 1 BW12 Skid shoe, RT
23B 1038045RP 1 BW12 Skid shoe, LT
24 1038108RP 1 Chain lock, wing
25 1038109RP 1 Chain lock, wing front
26A 1038887 1 Gearbox repair 1:1.69 CW (right
wing)
26B 1038888 1 Gearbox repair 1:1.69 CCW (left
wing)
27 10520RP 2 Shim, 18 GA, 1-1/2 blade pin
28 1038932RP 1 Chain lock, wing curved
29 1041054 1 5/16 Chain 3 link
30 4069 1 5/16 Chain 4 link
31 1041055 2 5/16 Chain 2 link
32 603834 1 Right wing with decals
33 603835 1 Left wing with decals
HHCS Hex Head Cap Screw
* Standard hardware, obtain locally
REF PART QTY DESCRIPTION
(Rev. 9/27/2018)
