Optional Chain Shielding
(See Figure 32)
The optional chain shielding assemblies are ready for
installation when you receive them.
1. Install front chain shielding to the front of the frame
using cap screws (6) and lock nuts (8).
2. Attach rear chain shielding to the rear of the frame
using carriage bolts (7) and lock nuts (8).

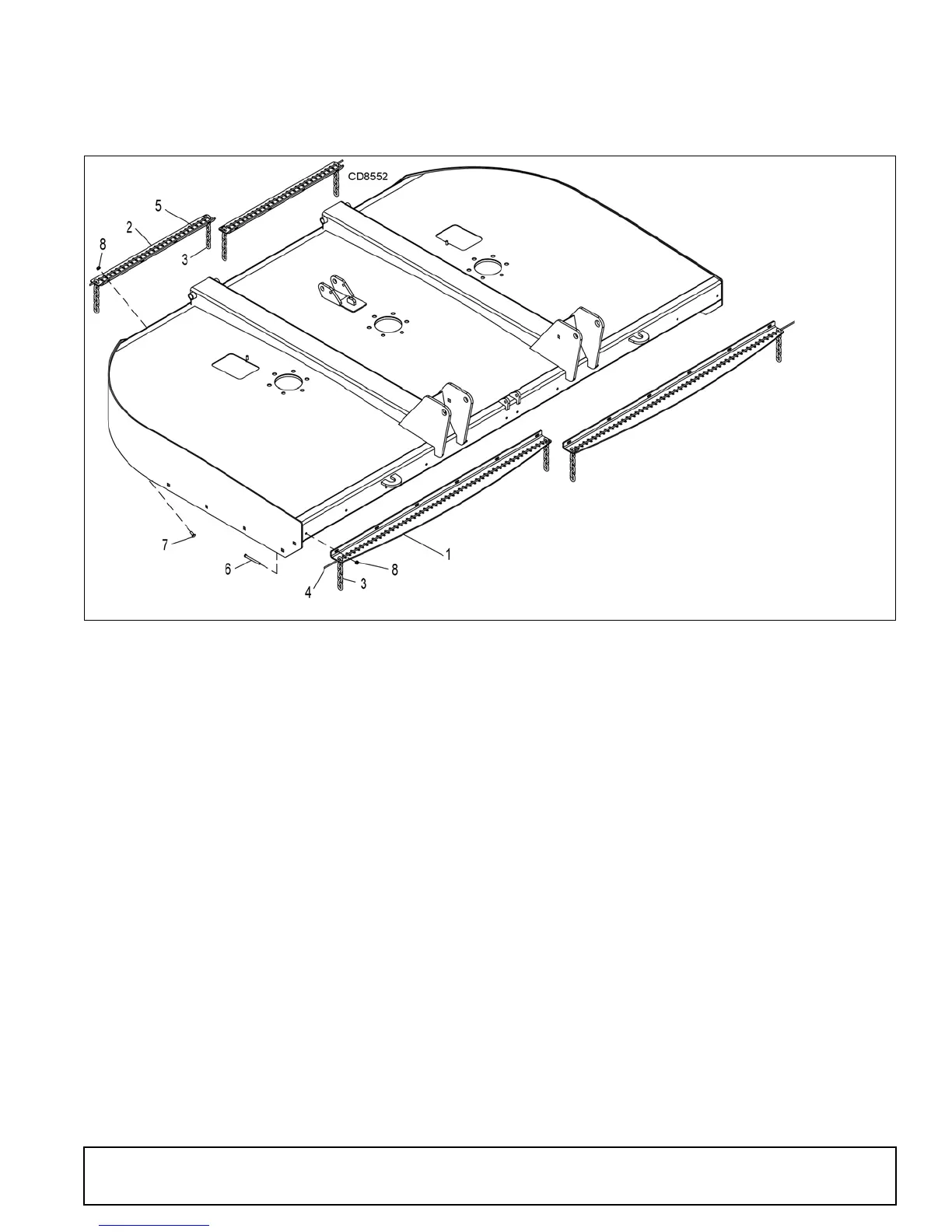

Figure 32. Optional Chain Shielding Installation
1. Front chain bracket
2. Rear chain bracket
3. 5/16 Chain - 7 link
4. Front bent pin
5. Rear bent pin
6. 3/8 NC x 4 HHCS, GR5
7. 3/8 NC x 1 Carriage bolt, GR5
8. 3/8 NC Flange lock nut
