Woods DS8.50 - Wheel & Tire Assembly

Parts 63
MAN1168 (5/27/2016)

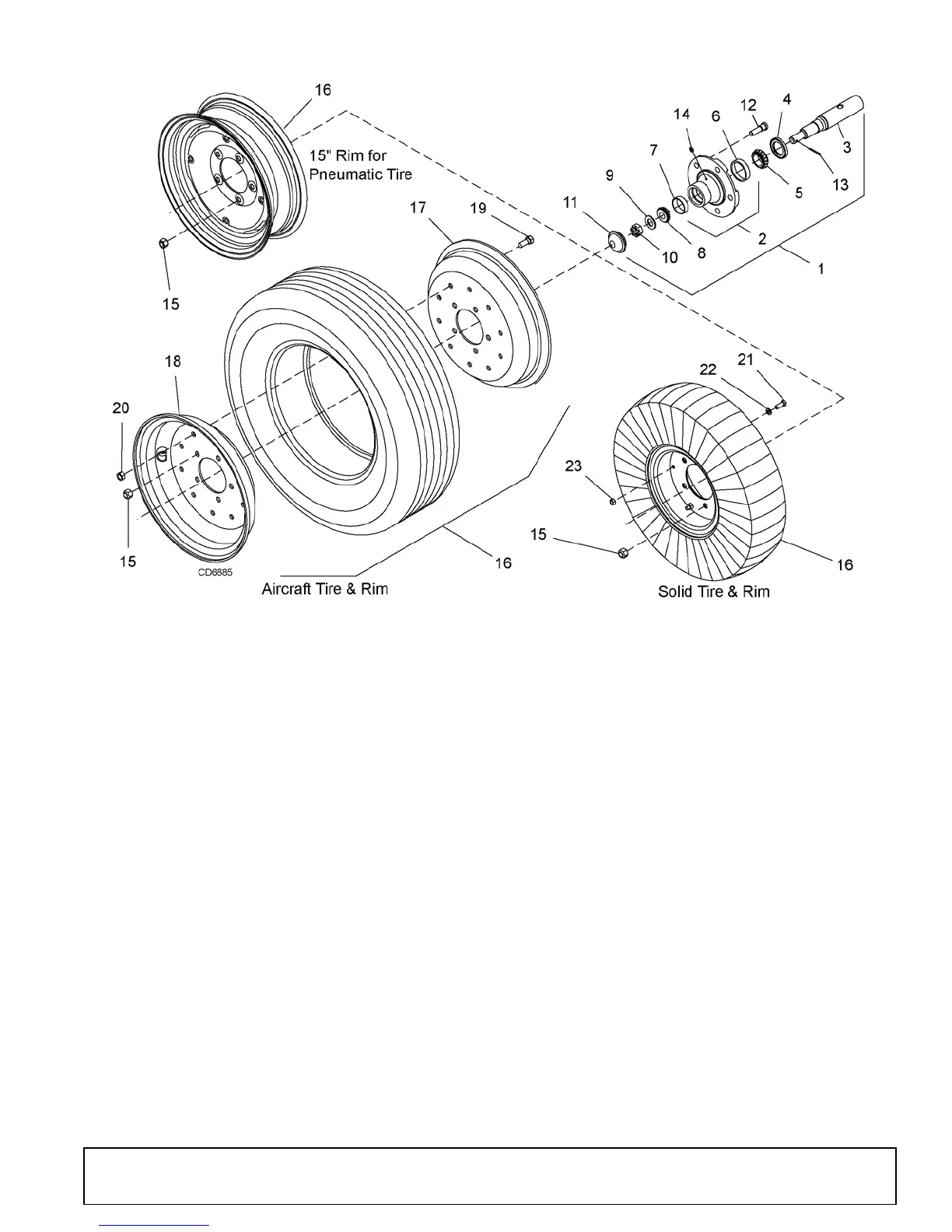

WHEEL & TIRE ASSEMBLY
REF PART QTY DESCRIPTION
1 1017050 1 Heavy hub assembly
(includes items 1 through 15)
2 1017034 1 Heavy wheel hub with cups
(includes items 6, 7, 14)
3 1017033 1 Axle
4 1017027 1 Seal
5 1017028 1 Bearing cone
6 1017036 1 Bearing cup
7 1017037 1 Bearing cup
8 1017029 1 Bearing cone
9 1017031 1 Washer
10 1017032 1 Castle nut
11 1017035 1 Hub cap
12 1017038 5 Stud
13 1017069 1 Cotter pin
14 1017067 1 Grease fitting
15 35317 5 Nut, lug 1/2 NF
16 1017088 1 15" Rim for pneumatic tire - 5 bolt
-or-
16 1017040 1 6.00 x 9 Solid tire,
rim & hardware - 5 bolt
-or-
16 1039976 1 25 x 8 -14 Severe duty ag tire,
rim & hardware - 5 bolt
-or-
REF PART QTY DESCRIPTION
16 1039976F 1 25 x 8 - 14 Severe duty ag tire, rim
& hardware, foam filled - 5 bolt
-or-
16 1017030 1 29 x 9 x 15 Aircraft tire,
rim & hardware - 5 bolt
17 1017026 1 15.0 x 6.0 Rim half
(for 29" aircraft wheel only)
18 1017025 1 15.0 x 6.0 Rim half w/ valve hole
(for 29" aircraft wheel only)
19 6100 * 1/2 NC x 1-1/4 HHCS GR5
20 765 * 1/2 NC Locknut
21 19887 * 3/8 NC x 1 HHCS GR8
22 838 * 3/8 Standard lock washer
23 835 * 3/8 NC Hex nut
- 1015833 1 29 x 9 x 15 Inner tube
(for 29" aircraft wheel only)
- 1017042 2 Rim half for 6 x 9 solid tire
HHCS Hex head cap screw
* Standard hardware, obtain locally
