28 Parts
MAN1177
(
07/28/2023
)

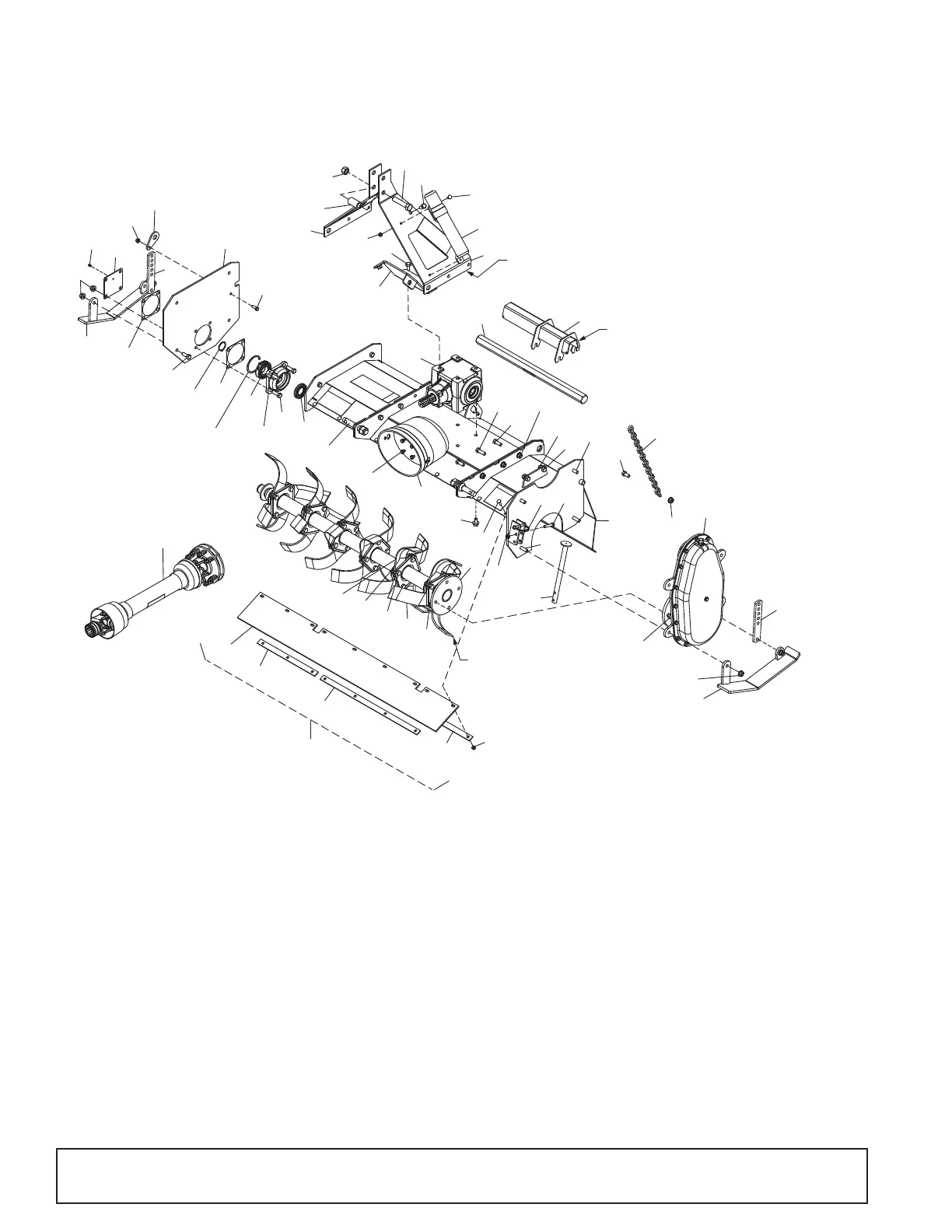

RT42.30/RTR42.30 & RT48.30/RTR48.30 ROTARY TILLER ASSEMBLY
1
2
5
17, 17A, 17B
7
8
9
9
10
11
12
22
18
13
15
51
6
43
45
44
46
45
27
25
24
48
47, 50
MAST PLATES INSTALLED
TO INSIDE OF DECK RUNNERS
HEX SHIELD INSTALLED TO
INSIDE OF MOUNTS ON RT48
19
49
3
20
21
16
4
28
25
29
30
31
32
23
26
33
33
48
47
48
45
46
45
48
48
BLADE ORIENTATION
FORWARD ROTATION
37
38, 39, 40
35
36
53
41
54
47
48
42
47
47
52
55
56
57
CD8623A
HEX SHIELD INSTALLED TO
OUTSIDE OF MOUNTS ON RT42
58 - COMPLETE RT TILLER MODEL DECAL SET
59 - COMPLETE RT REVERSE TILLER MODEL DECAL SET
60 - COMPLETE SAFETY DECAL SET
REVERSE TILLERS
ONLY
14
REF
RT/RTR42.30
PART
RT/RTR48.30
PART QTY DESCRIPTION
1 1042319 1042319 1 Side drive assembly (see page 34)
2 1042304 1042304 1
Gearbox assembly, 1.46:1 1.50 hex
(see page 35)
3 1031934 (10) 1031934 (12) Speed blade, RH
4 1031935 (10) 1031935 (12) Speed blade, LH
5 104391142 104391148 1 Hex shaft - 1.50
6 1043901 1043901 1 Mast plate, right
7 1043902 1043902 1 Mast plate, left
8 1043903 1043903 1 Skid shoe, left
9 1043904 1043904 2 Link, bolt on
10 1043905 1043905 1 Skid shoe, right
11 104390642 104390648 1 Tailgate
12 1043919 1043919 1 Link, tailgate mount
13 104390842 104390848 1 Shield, hex shaft
14 1043910 1043910 1 Parking stand
