30 Parts
MAN1177
(
07/28/2023
)

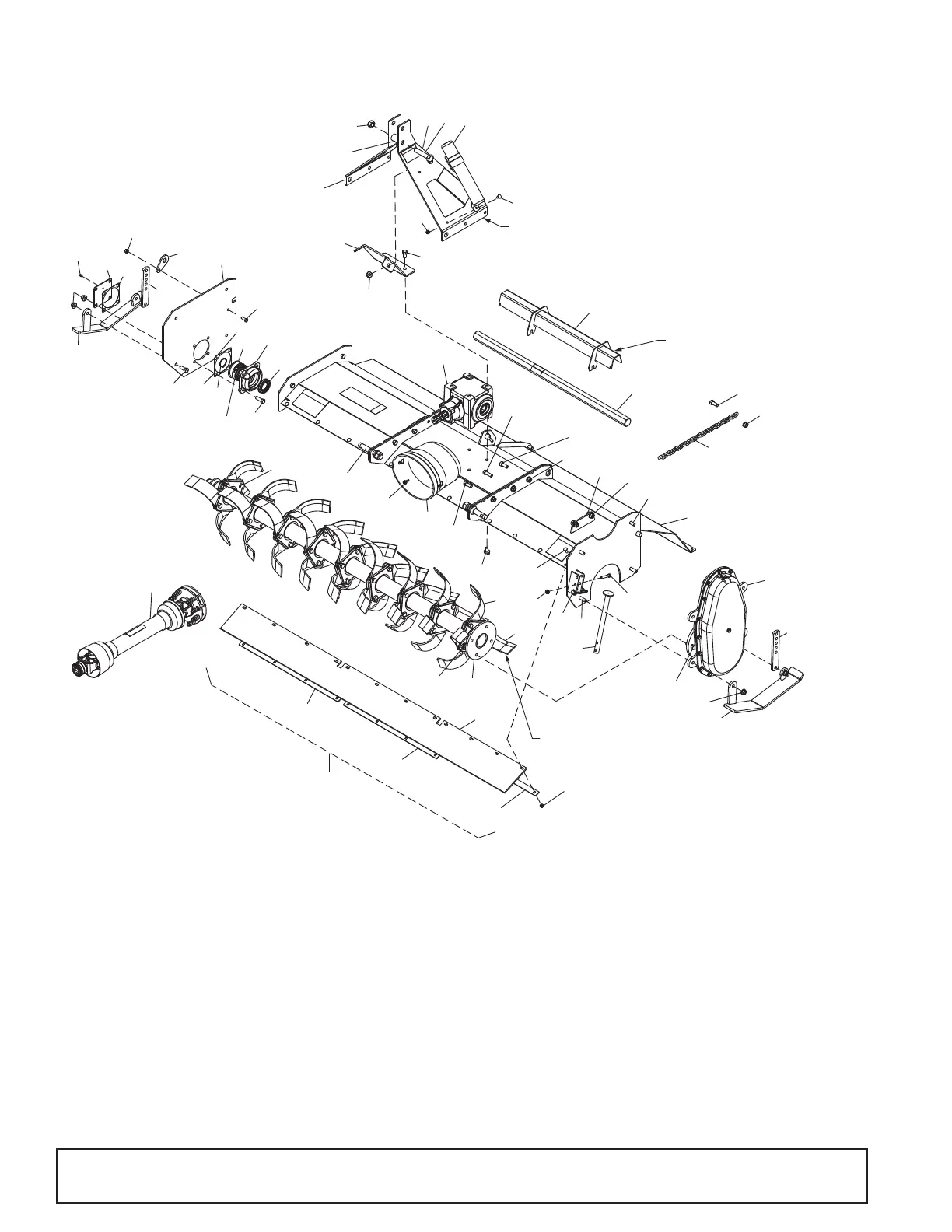

RT/RTR60.40 & RT/RTR72.40 ROTARY TILLER ASSEMBLY
1
24
2
5
17, 17A, 17B
6
8
CD8624A
10
9
22
13
29
14
12
15
47
48
MAST PLATES INSTALLED
TO INSIDE OF DECK RUNNERS
51
48
46
28
45
25
25
49
48
20
18
43
44
HEX SHIELD INSTALLED
TO INSIDE OF MOUNTS
19
47, 50
7
9
4
3
32
31
30
47
48
11
23
26
45
33
33
16, 37
27
45
46
BLADE ORIENTATION
FORWARD ROTATION
45
52
38, 39, 40
48
41
21
53
54
36
35
42
46
55
57
56
CD8624A
48
48
47
REVERSE TILLERS
ONLY
58 - COMPLETE RT TILLER MODEL DECAL SET
59 - COMPLETE RT REVERSE TILLER MODEL DECAL SET
60 - COMPLETE SAFETY DECAL SET
REF
RT/RTR60.40
PART
RT/RTR72.40
PART QTY DESCRIPTION
1 1042319 1042319 1 Side drive assembly (see page 34)
2 1042304 1042304 1 Gearbox assembly, 1.46:1 1.50 hex (see page 35)
3 1031934 (14) 1031934 (18) Speed blade, RH
4 1031935 (14) 1031935 (18) Speed blade, LH
5 104391160 104391172 1 Hex shaft - 1.50
6 1043901 1043901 1 Mast plate, right
7 1043902 1043902 1 Mast plate, left
8 1043903 1043903 1 Skid shoe, left
9 1043904 1043904 2 Link, bolt on
10 1043905 1043905 1 Skid shoe, right
11 104390660 104390672 1 Tailgate
12 1043919 1043919 1 Link, tailgate mount
