Woods RT60.40 - Page 32

32 Parts
MAN1177
(
07/28/2023
)

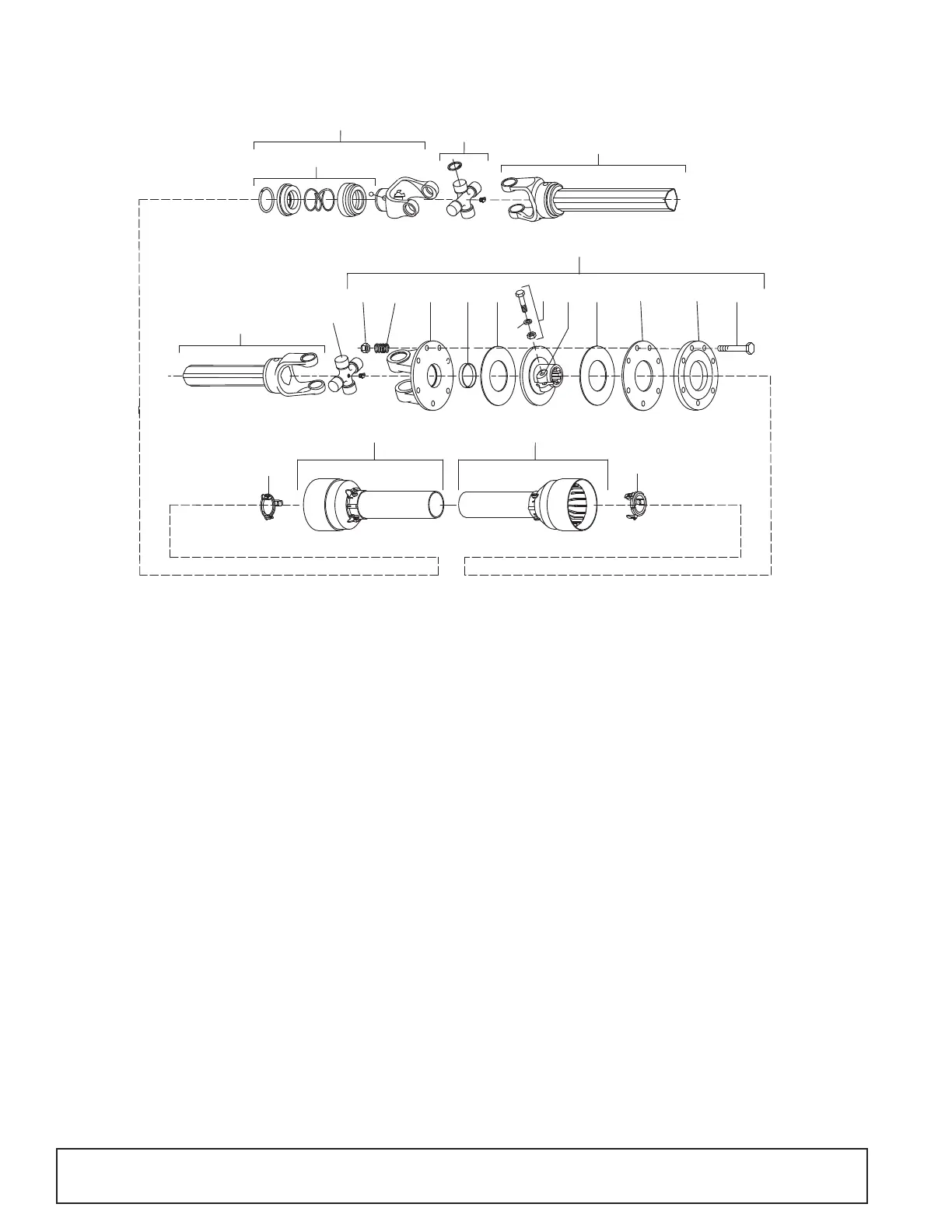

1042364 SLIP CLUTCH DRIVE ASSEMBLY
RT42.30 / RTR42.30 / RT48.30 / RTR48.30 TILLERS
3
1
2
4
6
14
7
12 11
16
8
11 9 13
3
5
17
CD7659B
10
18
15
19
20
21
REF PART QTY DESCRIPTION
A 1042364 1 Complete 540 driveline and clutch assembly
1 1044064 1 Complete collar yoke 1-3/8-6 spline
2 1044063 1 Lock collar repair kit
3 1044065 2 U-Joint cross & bearing kit
4 1043996 1 Outer prole tube & yoke
5 1043997 1 Inner prole tube & yoke
6 1044057 1 Friction clutch assembly
7 1043995 1 Flange yoke
8 1043993 Clutch hub
9 1044054 1 Internal disc
10 1044053 1 Pressure plate
11 1044055 2 Friction disc
12 1043994 1 Bushing
13 W307208 8 M10 x 1.5P x 85, HHCS
14 1044056 8 Clutch spring
15 57260 8 M10 x 1.5P nylon lock nut
16 1001315 1 Bolt & nut, M12 x 65
17 1043998 1 Outer shield kit, T2 (includes item 20)
18 1043999 1 Inner shield kit, T2 (includes item 21)
19 1044074 1 M12 spring washer
20 602514 1 Bearing, outer
21 602515 1 Bearing, inner
HHCSHex Head Cap Screw
