Woods RT60.40 - Page 33

Parts 33
MAN1177
(
07/28/2023
)

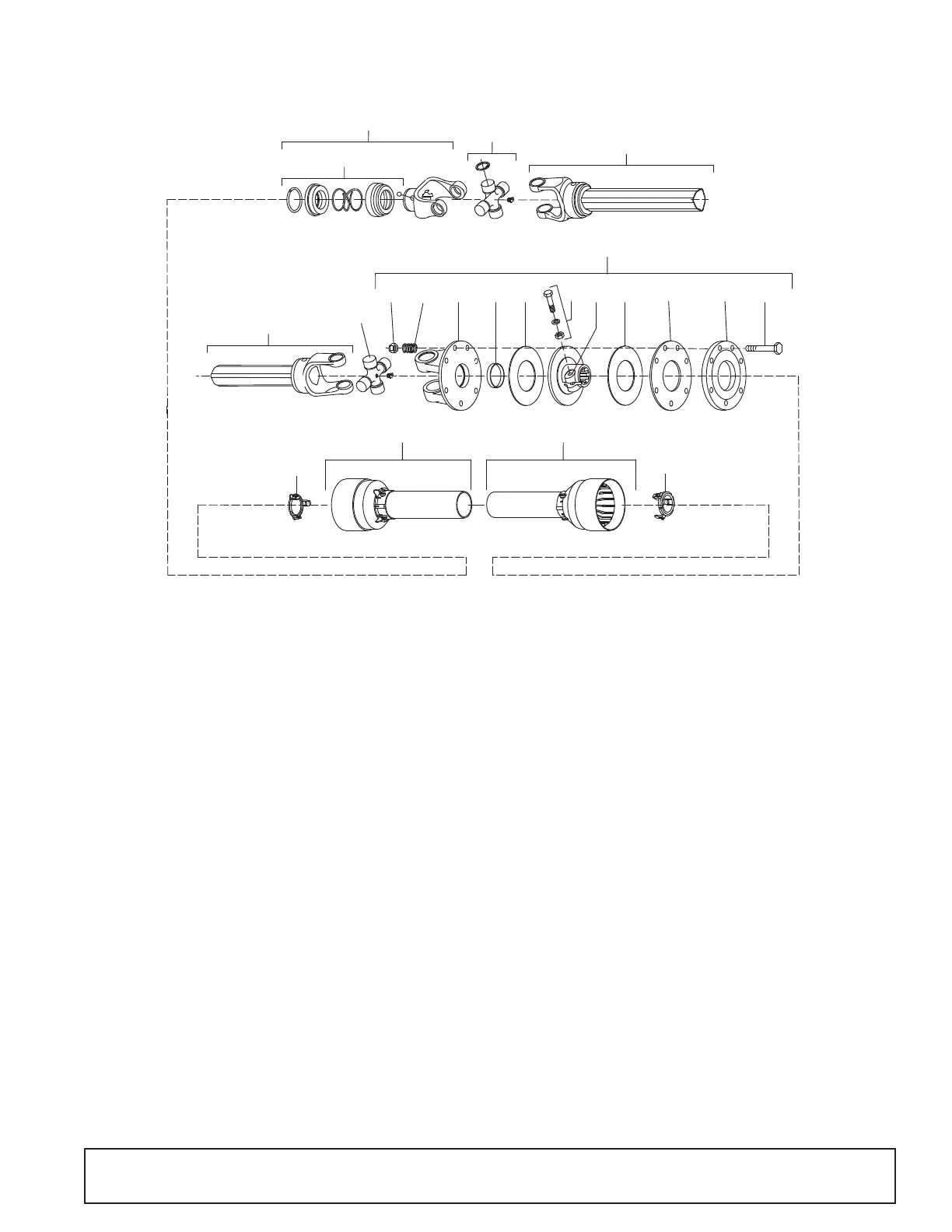

1042365 SLIP CLUTCH DRIVE ASSEMBLY
RT60.40 / RTR60.40 / RT72.40 / RTR72.40 TILLERS
3
1
2
4
6
14
7
12 11
16
8
11 9 13
3
5
17
CD7659C
10
18
15
19
20
REF PART QTY DESCRIPTION
A 1042365 1 Complete 540 driveline and clutch assembly
1 1044051 1 Complete collar yoke 1-3/8-6 spline
2 1044050 1 Lock collar repair kit
3 1044052 2 U-joint cross & bearing kit
4 1044059 1 Outer prole tube & yoke
5 1044060 1 Inner prole tube & yoke
6 1044058 1 Friction clutch assembly
7 1044077 1 Flanged yoke
8 1044076 1 Clutch hub
9 1044082 1 Internal disc
10 1044081 1 Pressure plate
11 1044083 2 Friction disc
12 1043994 1 Bushing
13 W307208 8 M10 x 1.5P x 85, HHCS
14 1044056 8 Clutch spring
15 57260 8 M10 x 1.5P nylon lock nut
16 1044091 1 Tapered pin & nut
17 1044061 1 Outer shield kit, T40
18 1044062 1 Inner shield kit, T40
19 605784 1 Bearing, outer
20 605785 1 Bearing, inner
HHCSHex Head Cap Screw
