76 Parts
MAN0577 (6/29/2007)

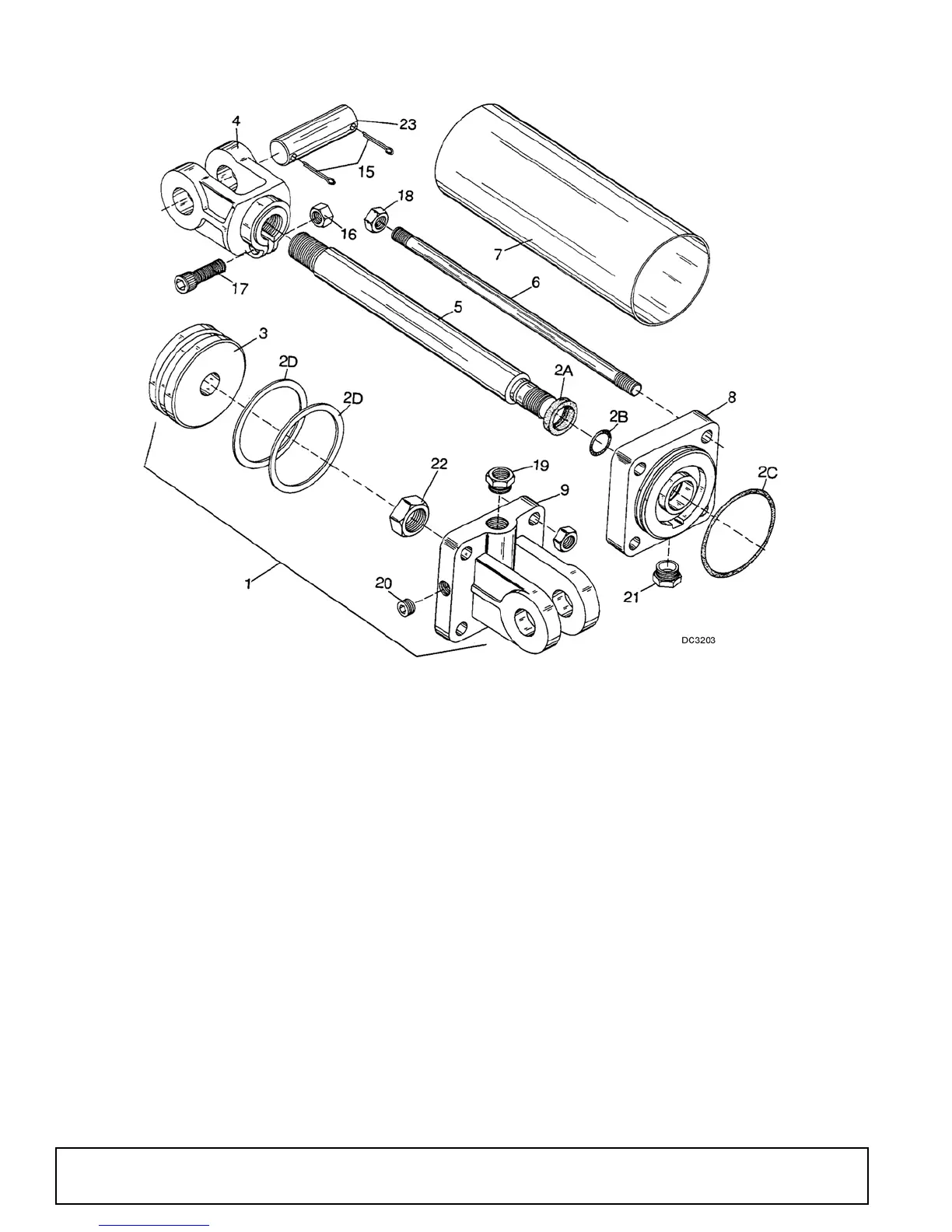

3-1/2 x 8" STROKE HYDRAULIC CYLINDER (OPTIONAL)
REF PART QTY DESCRIPTION
1 10475 Hydraulic cylinder complete, single
acting (for pull-type & semi-mounted)
-or-
1 18725 Hydraulic cylinder complete, double
acting (for mounted unit only)
2 23540 Seal repair kit
(includes items 2A - 2D)
2A – – – – † 1-1/4 ID Wiper seal
2B – – – – † 1-1/4 ID O-Ring
2C – – – – † 3/16 x 3-1/2 OD O-Ring
2D – – – – † 3-1/2 OD Back-up washer
3 23544 1 Piston
4 23549 1 Cylinder rod clevis
5 23551 1 Cylinder rod
6 NSS 4 Tie rod
7 NSS 1 Cylinder barrel
REF PART QTY DESCRIPTION
8 23543 1 Rod end housing, 1-1/4 bore
9 23546 1 Cylinder butt end
15 923 * 1/4 x 1-3/4 Cotter pin
16 6698 * 3/8 NC Hex lock nut
17 23550 3/8 NC x 1-1/2 Socket head cap
screw
18 1093 * 1/2 NC Heavy hex nut
19 11893 1/2 x 1/4 Pipe reducer bushing
20 – – – – * 1/2 Pipe plug
21 11975 1/2 NPT Vent plug
22 25496 1-14 UNS Jam nut
23 1631 1 x 3-5/8 Clevis pin
* Standard hardware, obtain locally
NSS Not serviced separately
† Included in seal kit
