Parts 75
MAN0577 (6/29/2007)

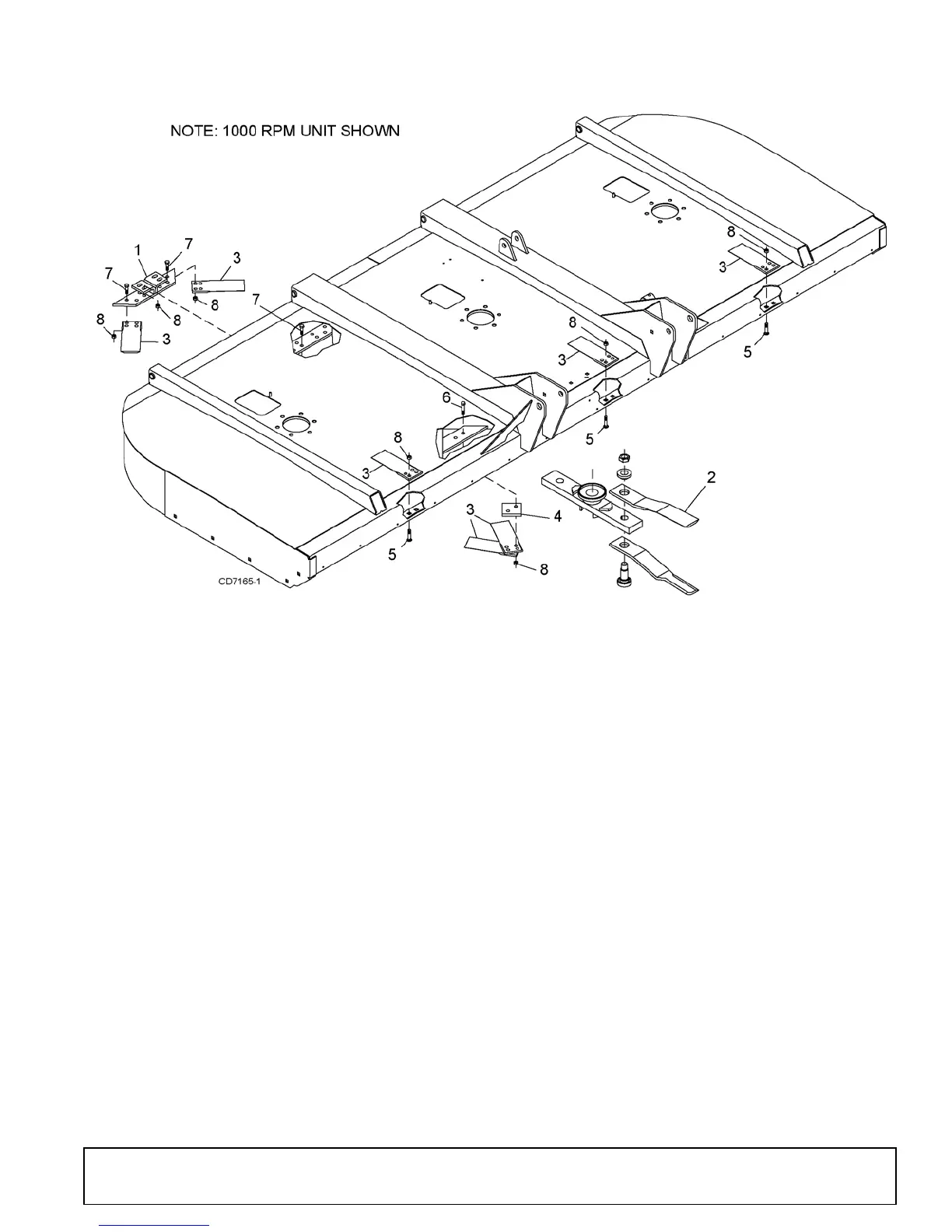

SHREDDER KIT (OPTIONAL)
REF PART QTY DESCRIPTION
A 1021463 Complete shredder kit
1 1021462 1 Blade holder
2 39004KT 6 Double edge blade, .5 x 4 x 22.5
3 39089 7 Double edge blade, 3/8 x 4 x 11.13
4 39048 1 Link, .5 x 4 x 4
5 5607 * 6 5/8 NC x 1-1/2 Carriage bolt GR5
6 34473 * 5/8 NC x 3 HHCS GR5
7 4548 * 8 5/8 NC x 1-3/4 HHCS GR5
8 6239 * 5/8 NC Lock nut
HHCS Hex Head Cap Screw
* Standard hardware, obtain locally
