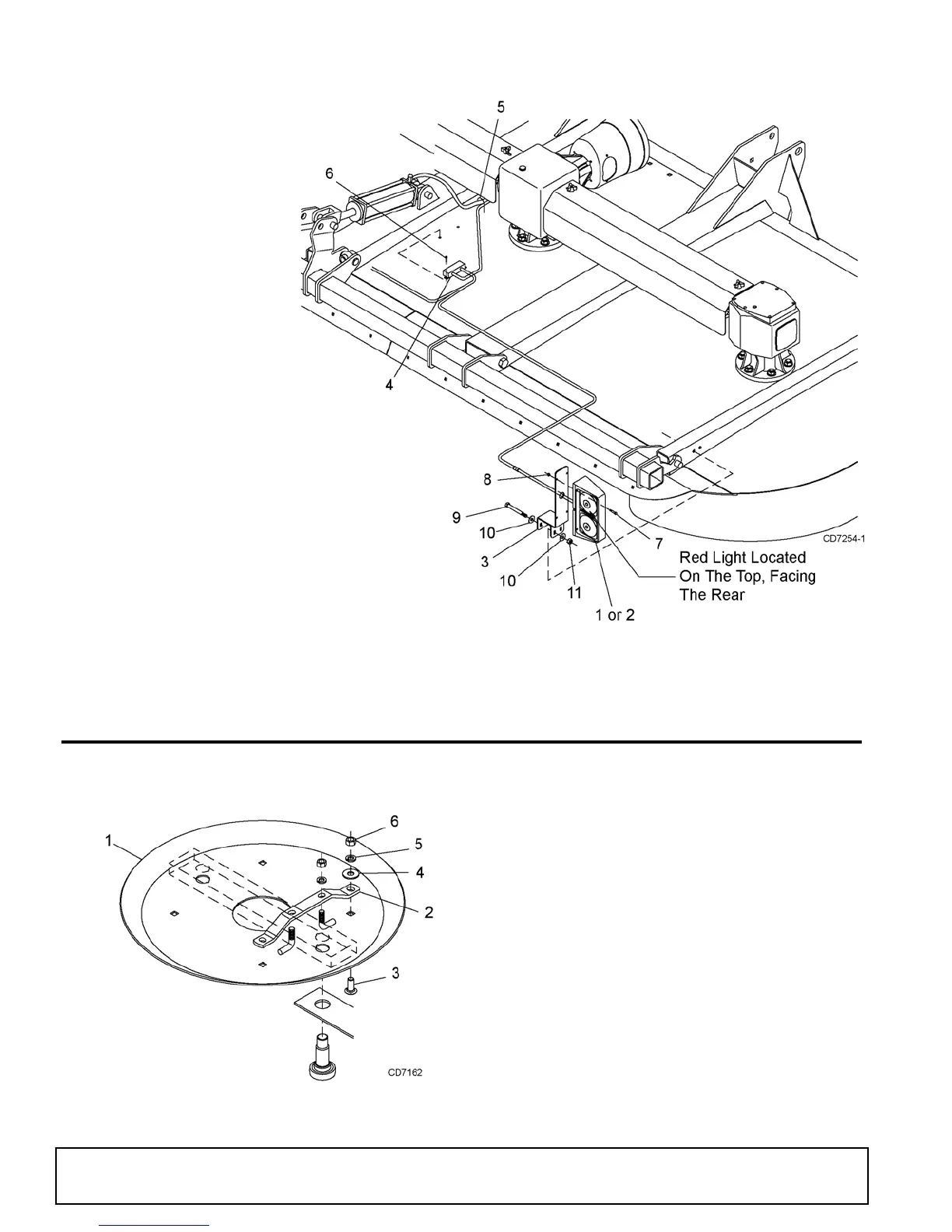

REF PART QTY DESCRIPTION
A 1022245 Complete TS1680 light kit
1 90401149 1 Light, 4 pin right
2 90401150 1 Light, 4 pin left
3 1022246 2 Light bracket
4 1004479 1 Wire harness
5 31407 * 7" Tie strap
6 21374 * #10 x 1/2 Self-tapping screw
7 10378 * 1/4 NC x 1 HHCS GR5
8 6128 * 1/4 NC Lock nut
9 12915 * 3/8 NC x 4-1/2 HHCS GR5
10 565 * 3/8 Flat washer
11 14350 * 3/8 NC Flange lock nut
HHCS Hex Head Cap Screw
* Standard hardware, obtain locally
REF PART QTY DESCRIPTION
1 1021435 1 Complete stump jumper assembly
2 1021436 2 Stump jumper strap
3 5607 * 5/8 NC x 1-1/2 Carriage bolt
4 692 * 5/8 Standard flat washer
5 1286 * 5/8 Heavy lock washer
6 230 * 5/8 NC Hex nut
* Standard hardware, obtain locally
