Parts 73
MAN0577 (6/29/2007)

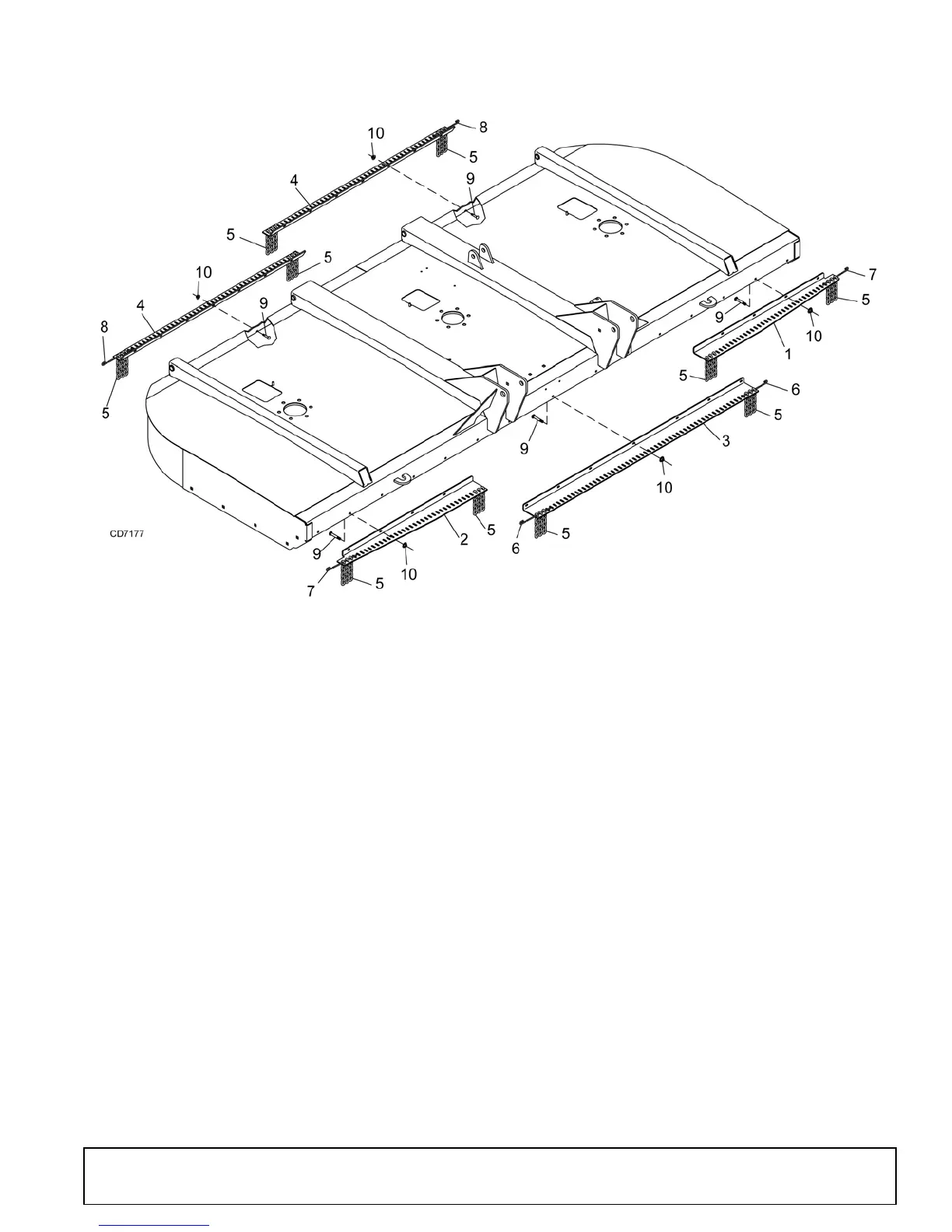

CHAIN SHIELDING
REF PART QTY DESCRIPTION
1 1021456 1 Left front chain shield plate
2 1021457 1 Right front chain shield plate
3 1021458 1 Center front chain shield plate
4 1021461 2 Rear chain shield plate
5 5498 237 5/16 Chain, 6 link
6 1007850 2 Pin 31 to 33 chains
7 1007853 2 Pin 37 to 39 chains
8 1007856 2 Pin 52 to 54 chains
9 20973 * 3/8 NC x 1-1/4 Carriage bolt GR5
10 14350 * 3/8 NC Flange nut
HHCS Hex Head Cap Screw
* Standard hardware, obtain locally
To Next Page
