72 Parts
MAN0577 (6/29/2007)

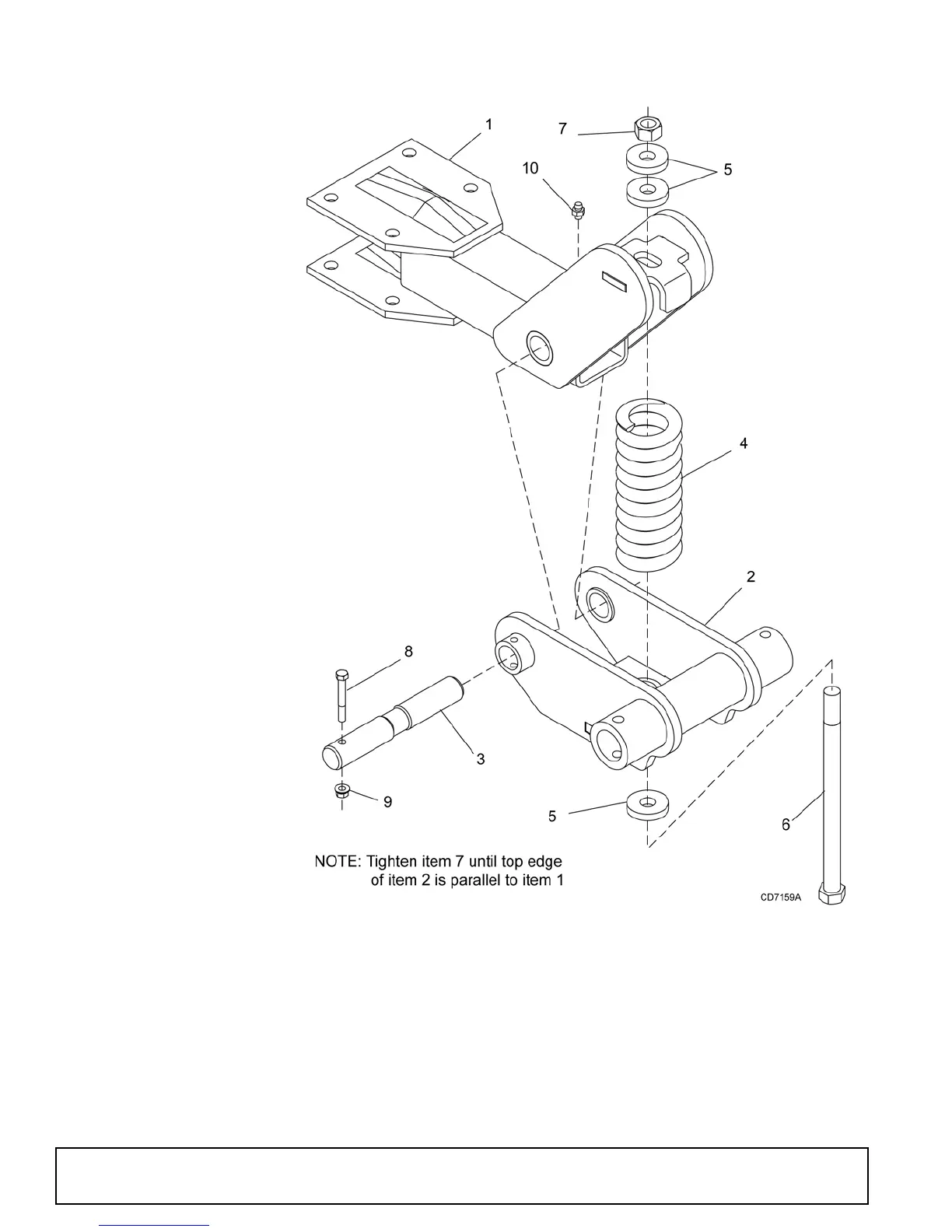

SPRING WHEEL ARM ASSEMBLY - PULL TYPE
REF PART QTY DESCRIPTION
1 1021441 1 Spring arm
2 1021445 1 Lower spring arm
3 1021449 1 1.25 x 8.35 Pivot pin
4 17195 1 Compression spring 3.12 x .62 x 9.5
5 8424 3 3/4 x 2 x 3/8 Washer
6 52196 1 3/4 NC x 13 HHCS GR5
7 2371 * 3/4 NC Lock nut
8 10509 * 5/16 NC x 2-1/2 HHCS GR5
9 14139 * 5/16 NC Flange lock nut
10 12296 * 1/4 - 28 Grease fitting
HHCS Hex Head Cap Screw
* Standard hardware, obtain locally
(Rev 7/9/2010)
