20 Owner Service
MAN0826 (8/31/2010)
LUBRICATION INFORMATION
When lubricating telescoping PTO drives, keep
fingers out of shield access slots to prevent injury.
Do not let excess grease collect on or around parts,
particularly when operating in sandy areas.
Figure 7 and Figure 8 shows lubrication points. The
accompanying charts give the frequency of lubrication
in operating hours, based on normal operating condi-
tions. Severe or unusual conditions may require more
frequent lubrication.
Use a lithium grease of #2 consistency with a MOLY
(molybdenum disulfide) additive for all locations unless
otherwise noted.
Be sure to clean fittings thoroughly before attaching
grease gun. When applied according to the lubrication
chart, one good pump of most guns is sufficient. Use
SAE 90W gear lube in gearboxes.
Daily lubrication of PTO slip joints is necessary. Failure
to maintain proper lubrication can result in damage to
U-joints, gearboxes and/or drive shafts. Raise or lower
mower until grease fittings in PTO shields are exposed.
Insert grease gun through slots and apply grease to all
sides of shafts. Always stand clear of mower and wing
arm mechanism to avoid being pinched or crushed
should the mower or wing suddenly lower.
Raise and lower mower after applying grease so that it
spreads over the slip joint working area.

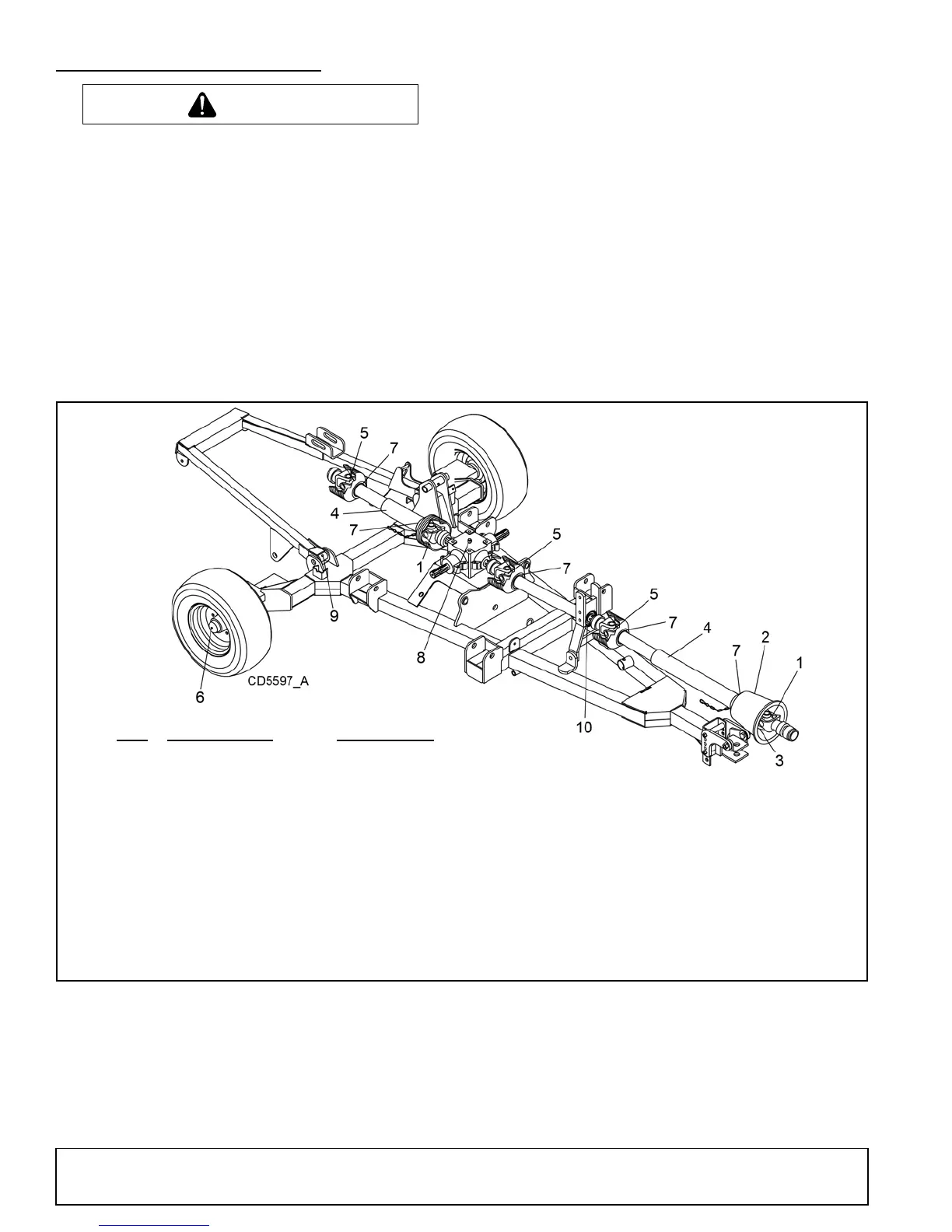

Figure 7
. Lubrication Points - Trailer
REF DESCRIPTION FREQUENCY
1 Driveline U-Joint 8 Hours
2 Drive Carrier Bearing 8 Hours
3 CV Body 8 Hours
4 Telescoping Shaft 8 Hours
5 Rear Deck Pivot Arm 8 Hours
6 Transport Wheel Hub 8 Hours
7 Shield Bearing 8 Hours
8 Splitter Gearbox (Fill 1/2 Check For Leaks Daily
full w/SAE 90W gear lube)
(Rev. 11/15/2013)
