Woods Turf Batwing TBW144 User Manual

62 Parts MAN0826 (8/31/2010)

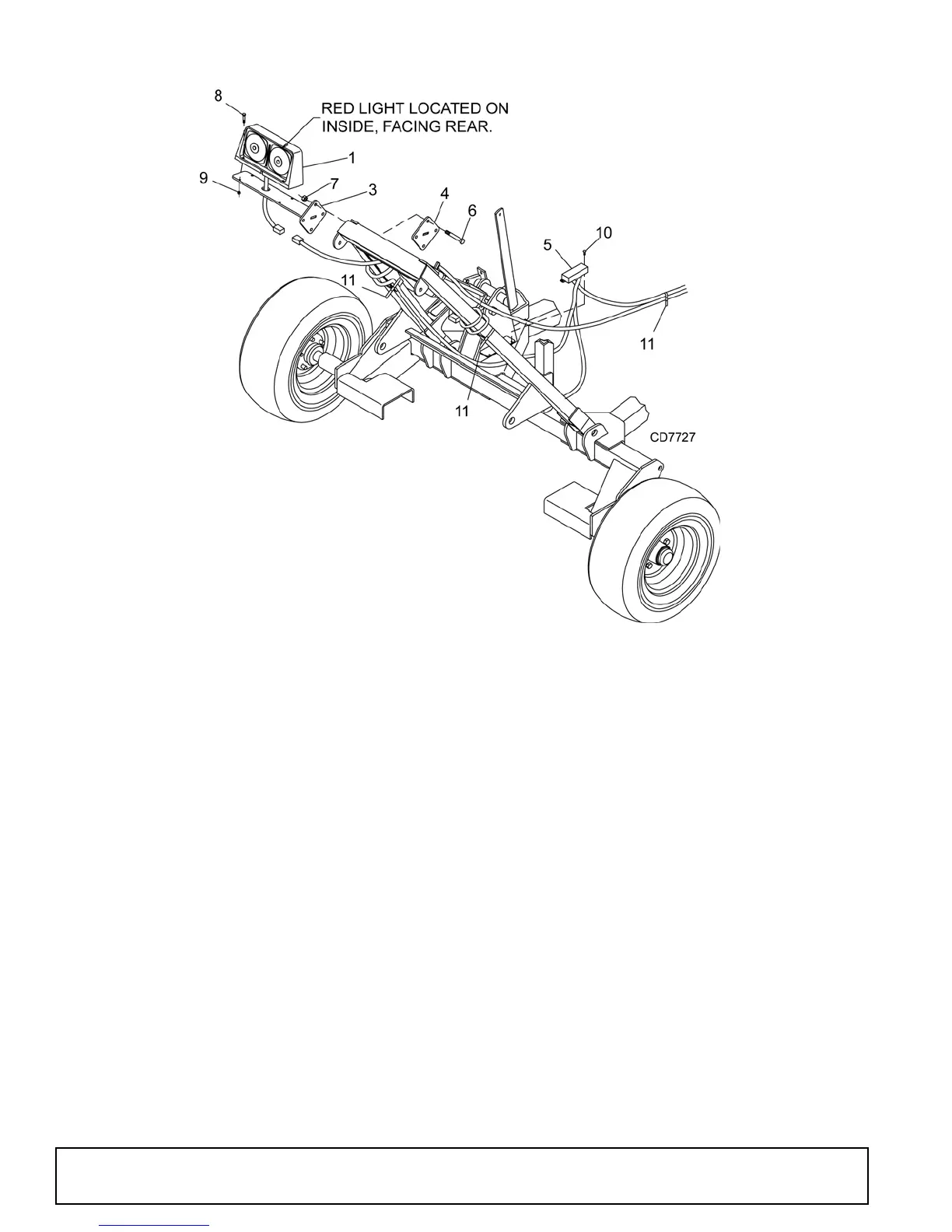

LIGHT KIT (OPTIONAL)
REF PART QTY DESCRIPTION
1031385 TBW Light kit
1 90401149 1 Light, 4 pin right
2 90401150 1 Light, 4 pin left
3 1031386 2 Light bracket
4 1031388 2 Blank .16 x 4.00 x 4.00
5 1004479 1 Wire harness
6 31138 * 3/8 NC x 3-1/2 HHCS GR5
7 14350 * 3/8 NC Flange lock nut
8 10378 * 1/4 NC x 1 Hex head cap screw GR5
9 6128 * 1/4 NC Lock nut
10 21374 * #10 x 1/2 Tapping screw
11 65766 * 34 Cable tie
HHCS
Hex head cap screw
* Standard hardware, obtain locally
