REF PART QTY DESCRIPTION
10041111 Skid shoe kit
(contains 1 left and 1 right skid shoe)
1 1004105 1 Skid shoe, left
2 1004106 1 Skid shoe, Right
3 6100 * 1/2 NC x 1-1/4 Hex head cap screw
GR5
4 11900 * 1/2 NC Flange lock nut
* Standard hardware, obtain locally
INSTALLATION INSTRUCTION
1.

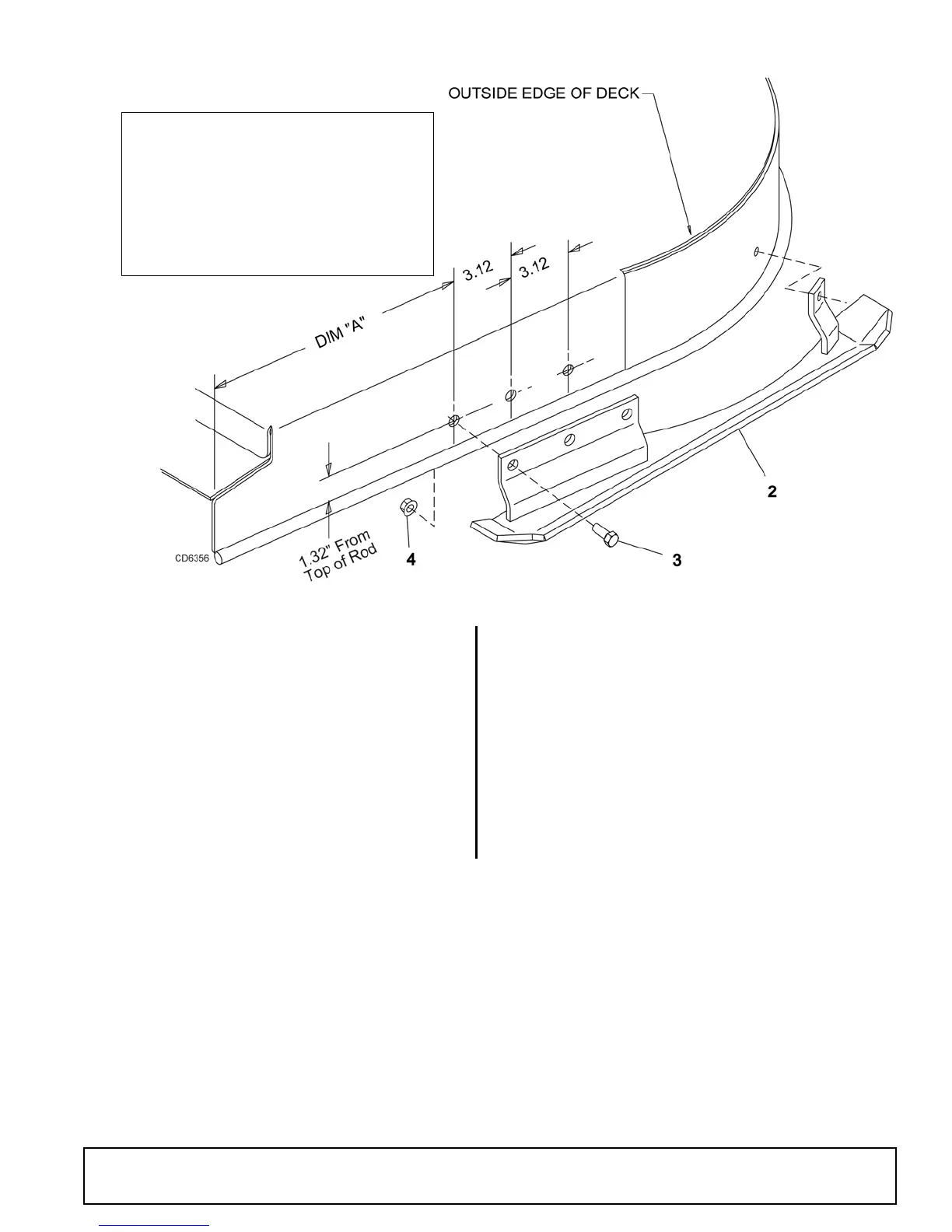

Locate and drill three 17/32” holes using the dimensions
from the drawing and table above.
2.
Secure skid shoe with three cap screws (3) and flange
washers (4).
3.
Use the skid shoe as a guide and drill the remaining
hole. Make sure skid shoe is parallel to the top of the
deck.
Mower Deck DIM “A”
TBW144 Wing Deck (Outside) 18.75
TBW144 Wing Deck (Inside) 9.5
TBW144 Rear Deck 7.25
TBW180 Wing Deck 7.25
TBW180 Rear Deck 9.50
TBW180 All Decks 9.5
