54 Parts
MAN0826 (8/31/2010)
TBW144 REAR DECK AND
TBW180 & TBW204 FRONT ROLLER ASSEMBLY (OPTIONAL)

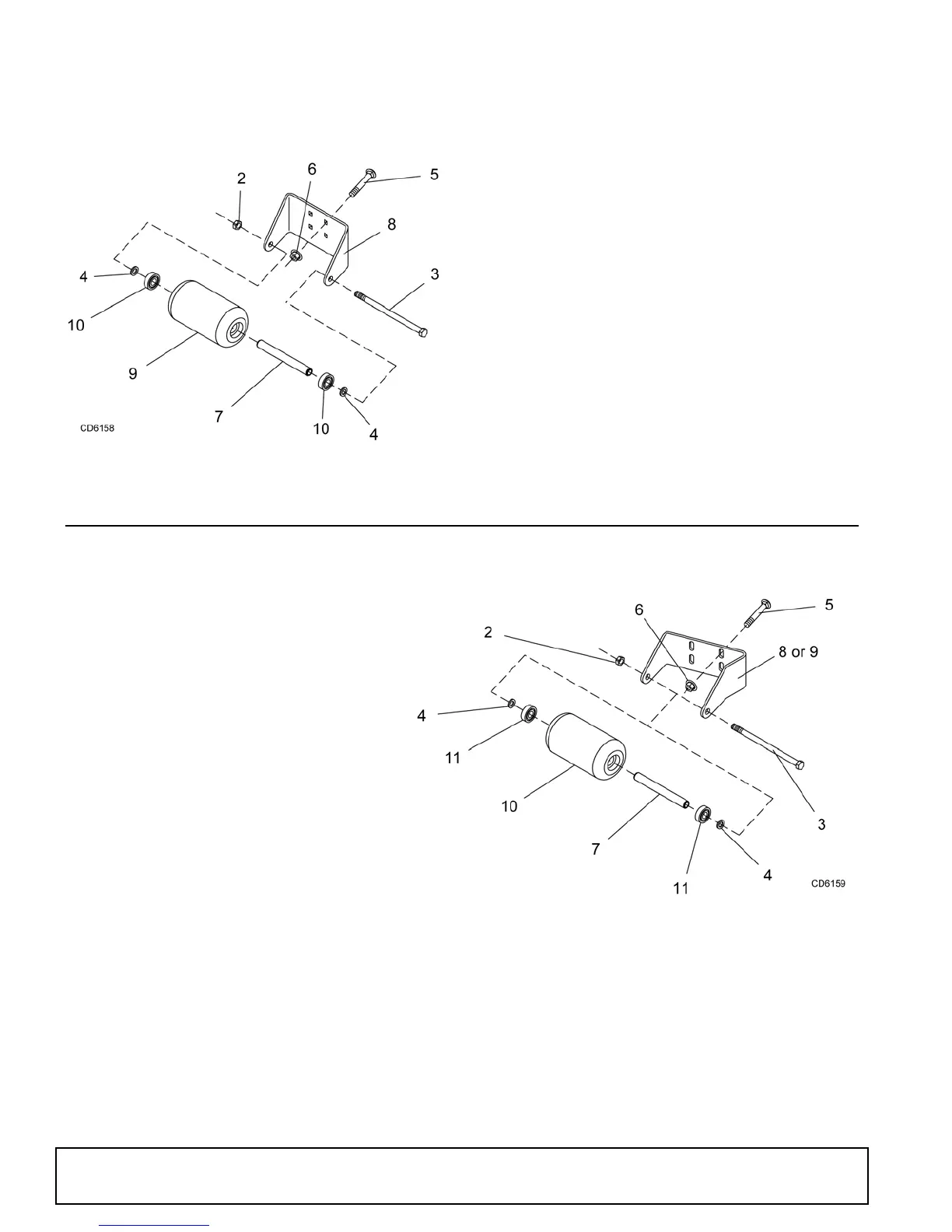

TBW144 WING DECK FRONT ROLLER ASSEMBLY (OPTIONAL)
REF PART QTY DESCRIPTION
1006417KT 1 Front roller kit, complete
(one per deck)
2 11900 * 1 1/2 NC Flanged lock nut
3 38107 1 1/2 NC x 9 Cap screw GR5
4 3598 2 1/2 Flat washer SAE
5 6697 * 4 3/8 NC x 1 Carriage bolt
6 70069 4 3/8 NC Flanged whiz nut
7 1006420 1 Spacer, .75 x 6.62
8 1006419 1 Bracket, front roller
9 1006418 1 Roller, 4 x 7.37
10 35193 2 Bearing
* Standard Hardware, Obtain Locally
REF PART QTY DESCRIPTION
1006421 Roller Kit, Front Complete
(for both Right & Left wing decks)
2 11900 * 1 1/2 NC Flanged lock nut
3 38107 1 1/2 NC x 9 Cap screw GR5
4 3598 2 1/2 Flat washer SAE
5 6697 * 4 3/8 NC x 1 Carriage bolt
6 70069 4 3/8 NC Flanged whiz nut
7 1006420 1 Spacer, .75 x 6.62
8 1006422 1 Bracket, front roller right
9 1006423 1 Bracket, front roller left
10 1006418 1 Roller, 4 x 7.37
11 35193 2 Bearing
* Standard Hardware, Obtain Locally
