Worcester 24I RSF User Manual

Supplied By www.heating spares.co Tel. 0161 620 6677
30

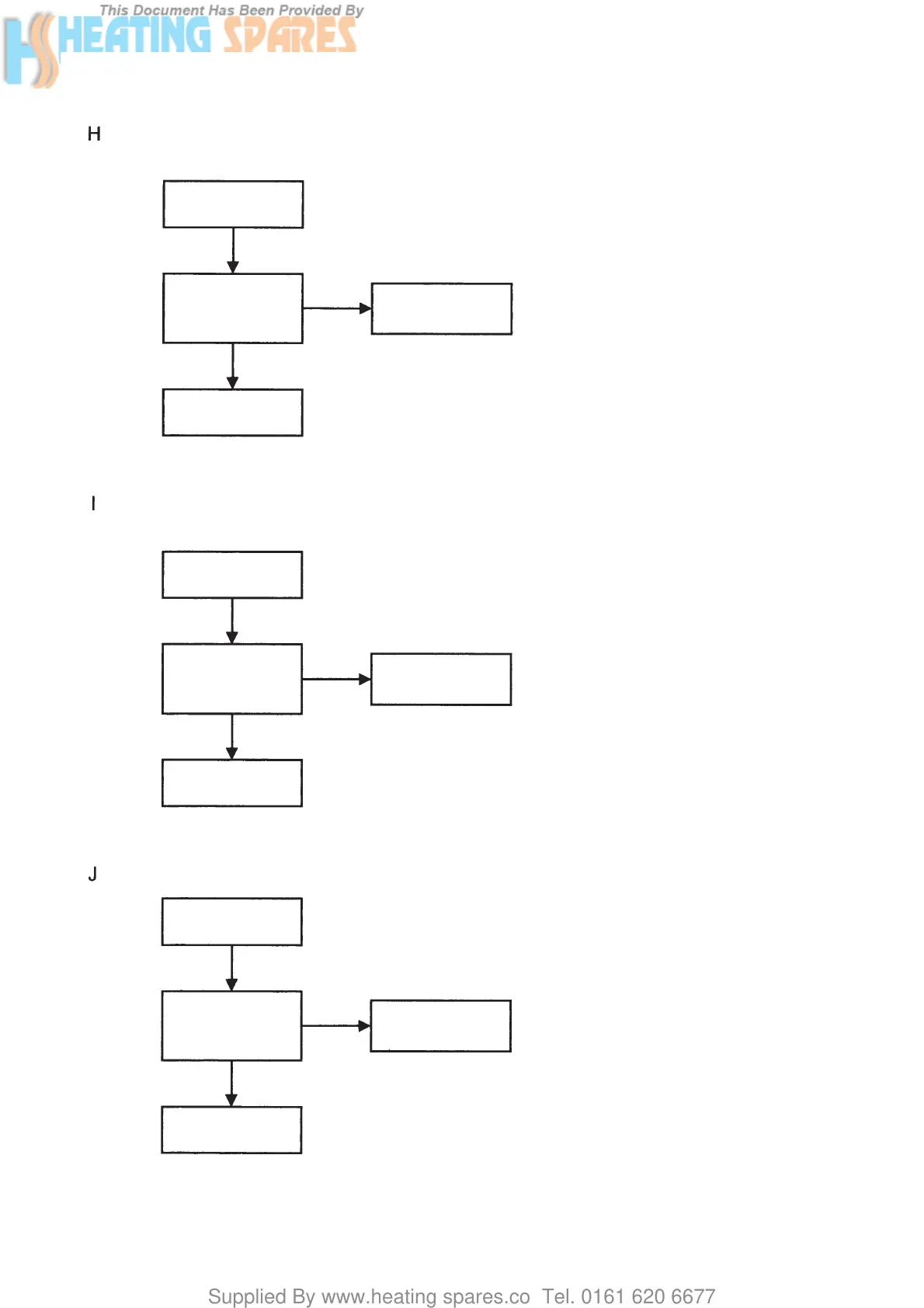

Thermistor Check
Harness Continuity Check
Harness Short Check
Remove connectors
from thermistor
Thermistor OK
Remove appropriate
connectors
Is continuity observed
between each end of
wire in question?
Faulty harness
or connector
Harness OK
Remove appropriate
connectors
Faulty harness
Harness OK
Is short circuit
observed between pair
of wires in question?
Is resistance between
terminals of thermistor
between 690ohms & 33k?
Faulty thermistor
YES
YES
YES
YES
NO
NO
YES
YES
NO

Worcester 24I RSF Specifications

General

Model	24I RSF
Category	Boiler
Output	24 kW
Fuel Type	Natural Gas
Mounting	Wall-mounted
Warranty	2 years
Type	Regular
Hot Water Flow Rate	11 L/min
