Installation and commissioning
7
Comfort+ II RF – 6720886122 (2018/07)
The control unit must not be directly influenced by radiators or
heat-emitting objects, such as TVs or table lamps.

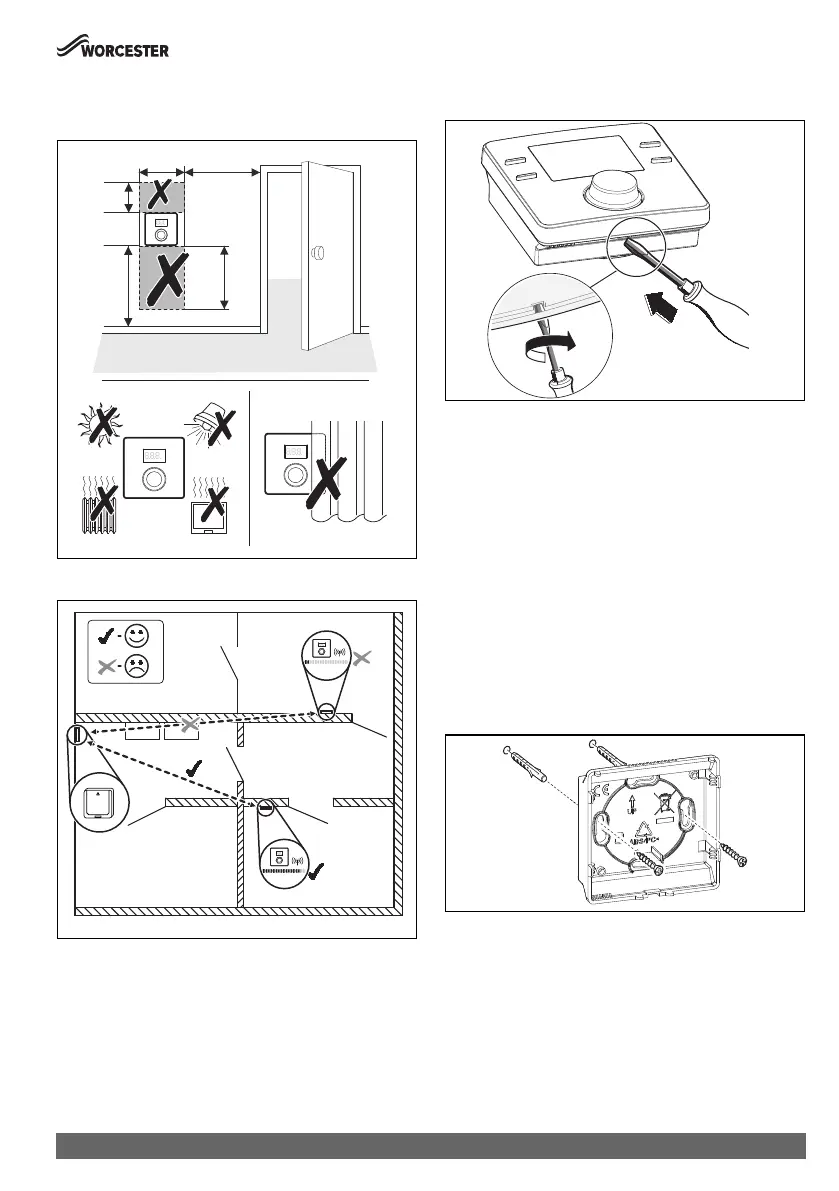

Fig. 4 Installation location of the control unit
Fig. 5 Wireless range
Releasing control unit from wall socket
Fig. 6 Releasing control unit from wall socket
▶ Insert a screwdriver into the recess on the underside of the
control unit.
▶ Gently turn the screwdriver, until the locking device opens.
Wall-mounted installation
Find a position with good signal strength before starting the
wall-mounted installation of the control unit.
If the signal is weak, try another position in the room, until the
best possible signal strength is achieved ( Section "Display
wireless signal strength", page 13).
▶ Use the wall socket as a template to mark the position of the
screws.
▶ Drill two suitable holes for the length and diameter of the
rawl plugs.
Fig. 7 Installing the wall socket for the control unit
▶ Insert the rawl plugs.
▶ Insert the screws in such a way, that they protrude
sufficiently to enable the wall socket to fit behind the screw
heads.
▶ Install the wall socket horizontally.
°C
°F
750
≥ 1000
≥ 1200
750
600
°C
°F
500
0010021101-001
°C
°F
°C
°F
°C
°F
0010021103-002
0 010 010 085-001
2.
1.
6720810965-08.1Wo

Worcester Comfort+ II RF Specifications

General

Display	LCD
Temperature control range	5°C to 30°C
Power supply	2 x AA batteries
Mounting	Wall-mounted
Control Type	Programmable
Compatibility	Worcester Bosch boilers
Type	Wireless Programmable Thermostat
Communication	Radio Frequency (RF)
Features	Frost protection, Holiday mode
Range	Up to 30 meters
