APPLIANCE INFORMATION
6 720 812 175 (2014/07) 5
2 APPLIANCE INFORMATION
2.1 GENERAL INFORMATION
BOILER FEATURES
• Pre-wired and pre-plumbed
• Galvanised steel inner frame
• Digital control system
• FX Intelligent controls*
• Automatic ignition
• Direct burner ignition electrodes
• Built-in frost protection
• Built-in fault finding diagnostics
• Modulating automatic gas valve
• Combustion air fan with speed regulator
• CH temperature sensor & control
• Pump anti-seizure protection
• Flue gas temperature sensor
• Condensate siphonic trap
• Modulating circulating pump
* If the optional integral diverter valve kit is fitted.

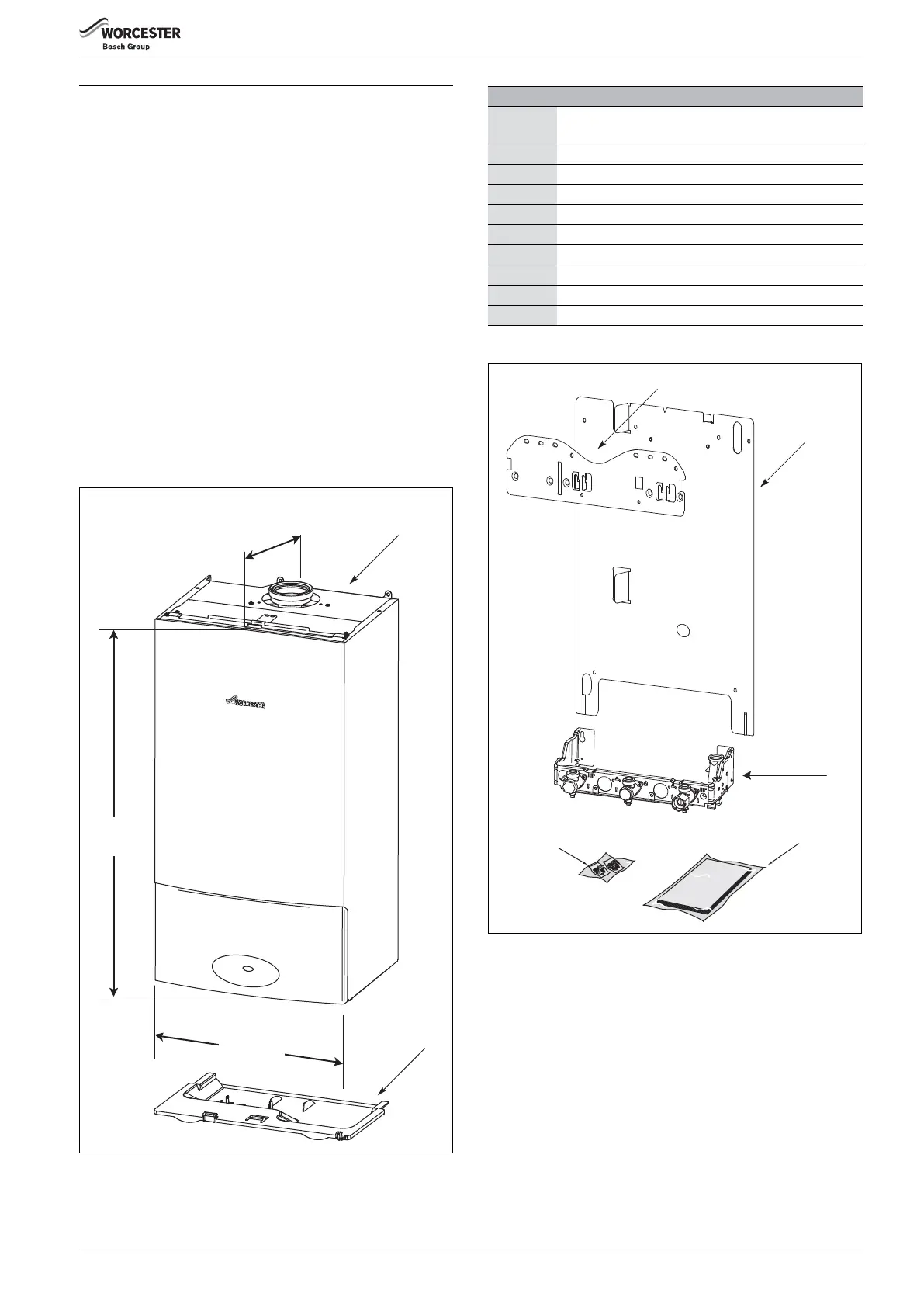

Fig. 1 Overall dimensions
Fig. 2 Standard package
G
A
ma
x.
360
mm
max.
760 mm
440mm
6 720 812 175-26.1O
STANDARD PACKAGE:
A Wall hung gas fired condensing system boiler for central
heating and domestic hot water
B Wall mounting plate
C Hanging bracket
D Pre-plumbing manifold
E Hardware pack
F Literature pack
- Installation instructions
- User instructions
- Wall mounting template
G Bottom panel
Table 5
B
C
D
E F
6 720 812 175-01.1O
