7
CONTROLS
6 720 644 864a (2010/10)
3CONTROLS
B To gain access to the boiler controls push the top centre of the flap and release.

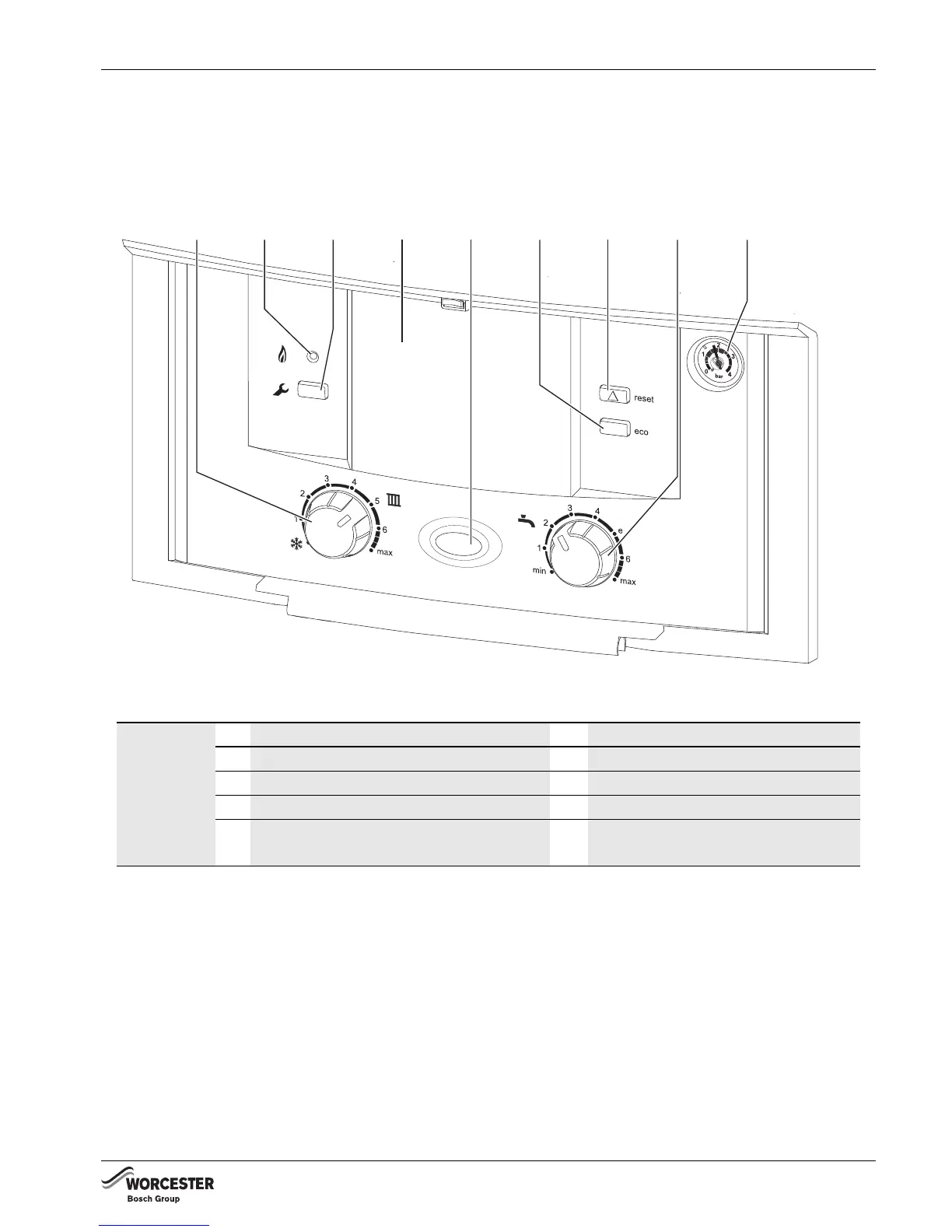

Fig. 1 Control panel fascia
Boiler
Controls
1
Central heating temperature control 6 ECO button (non functional)
2
Burner indicator (Green) 7 Reset button
3
Service button 8 Hot water temperature control*
4
Cover or optional Programmer 9 System pressure gauge
5
Power ON and fault indicator (Blue) * Requires optional integral
diverter kit to be functional
1
2
3456
78
6720643356-13.1Wo
9
