CONTROLS
Greenstar Ri Compact - 6 720 648 729 (2013/05)
3 CONTROLS
▶ To gain access to the boiler controls pull the flap down using the curved flap handle.

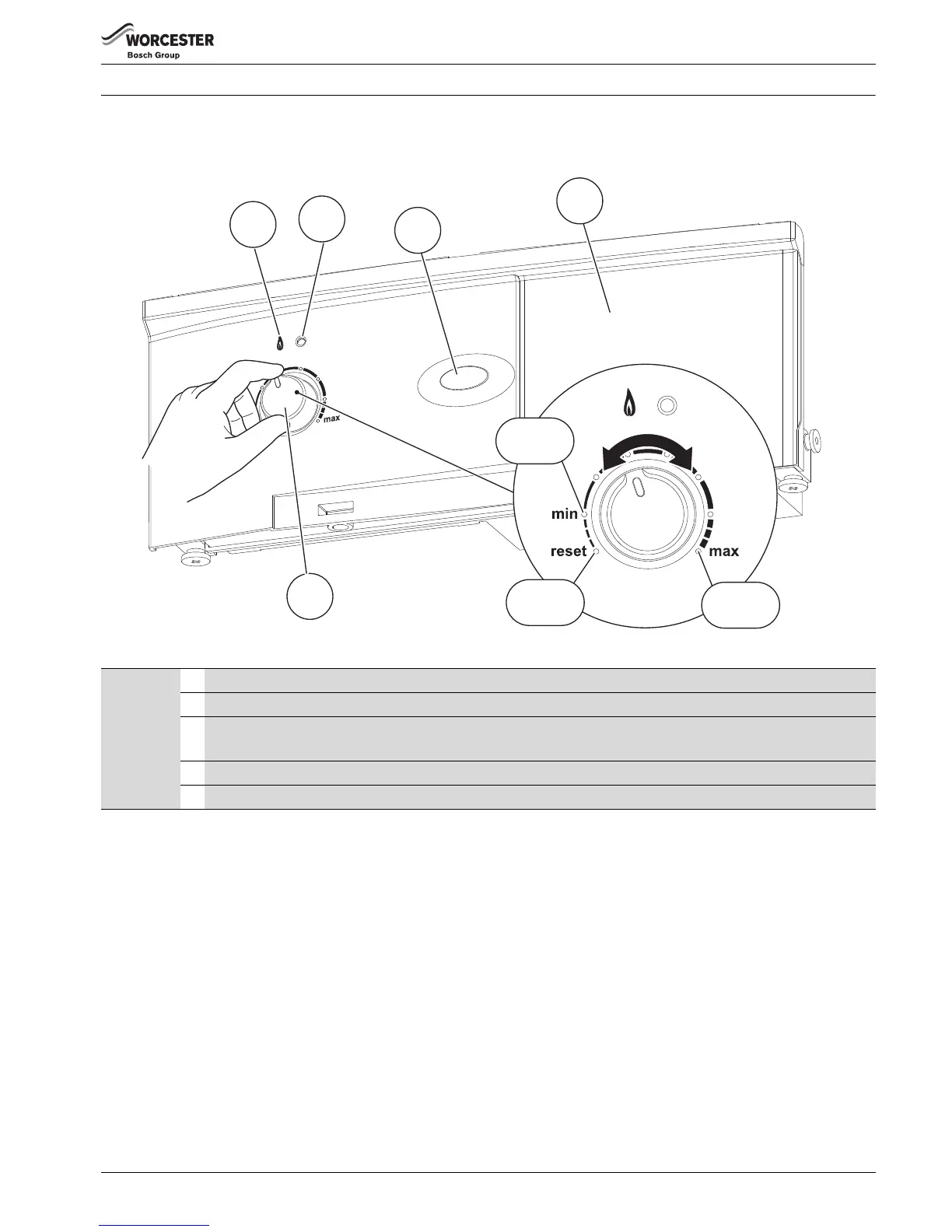

Fig. 1 Basic boiler controls
Boiler
Controls
1
Flame/Burner symbol
2
Flame/Burner ON indicator (green)
3
Operational/fault indicator (blue). The blue light is ON when the boiler is in an operational mode.
It will also flash to indicate a fault.
4
Position for optional programmer
5
Central heating temperature control incorporating reset position
6720648729-01.1Wo
1
2
3
4
reset
min
max
5
