FINISHING COMMISSIONING
8-716-106-256a (08.05)
FINISHING COMMISSIONING

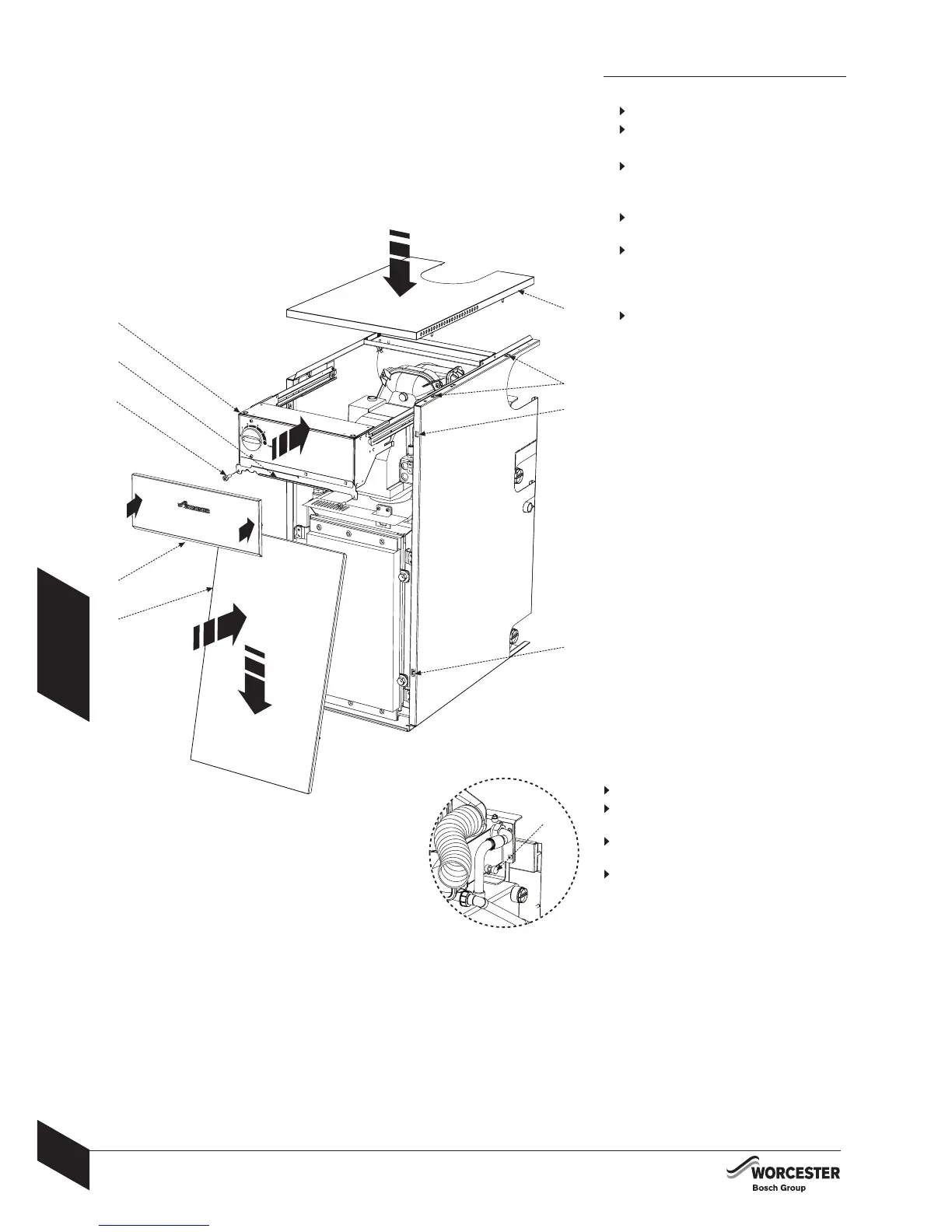

1 Slide control box (A) into the boiler.
Secure with screws (B).
2
Align the top front panel (H) and push the ball
studs into the connectors (J) to secure.
3 Locate top edge of panel (C) onto the top
supporting ledge (D) on the boiler.
Locate the ball stud connections (E) at the
base of the front panel (C) and push towards
the boiler to secure.
4
Locate the top panel (F) onto the ball stud
connections (G) and press down to secure.
Handover:
Complete the Guarantee Registration Card.
Set up the controls and show the user how to
operate all the controls shown in the User Guide.
Where applicable, instruct the customer how to
repressurise the system.
If the appliance is unused and exposed to freezing
conditions, advise the customer of the
precautions necessary to prevent damage to
the boiler, system and building.
In the event of the appliance being inoperative,
isolate the boiler and drain the system and boiler.
Note: Release drain point (K) to drain the secondary
heat exchanger.
