Worcester HEATSLAVE 9.24 RSF

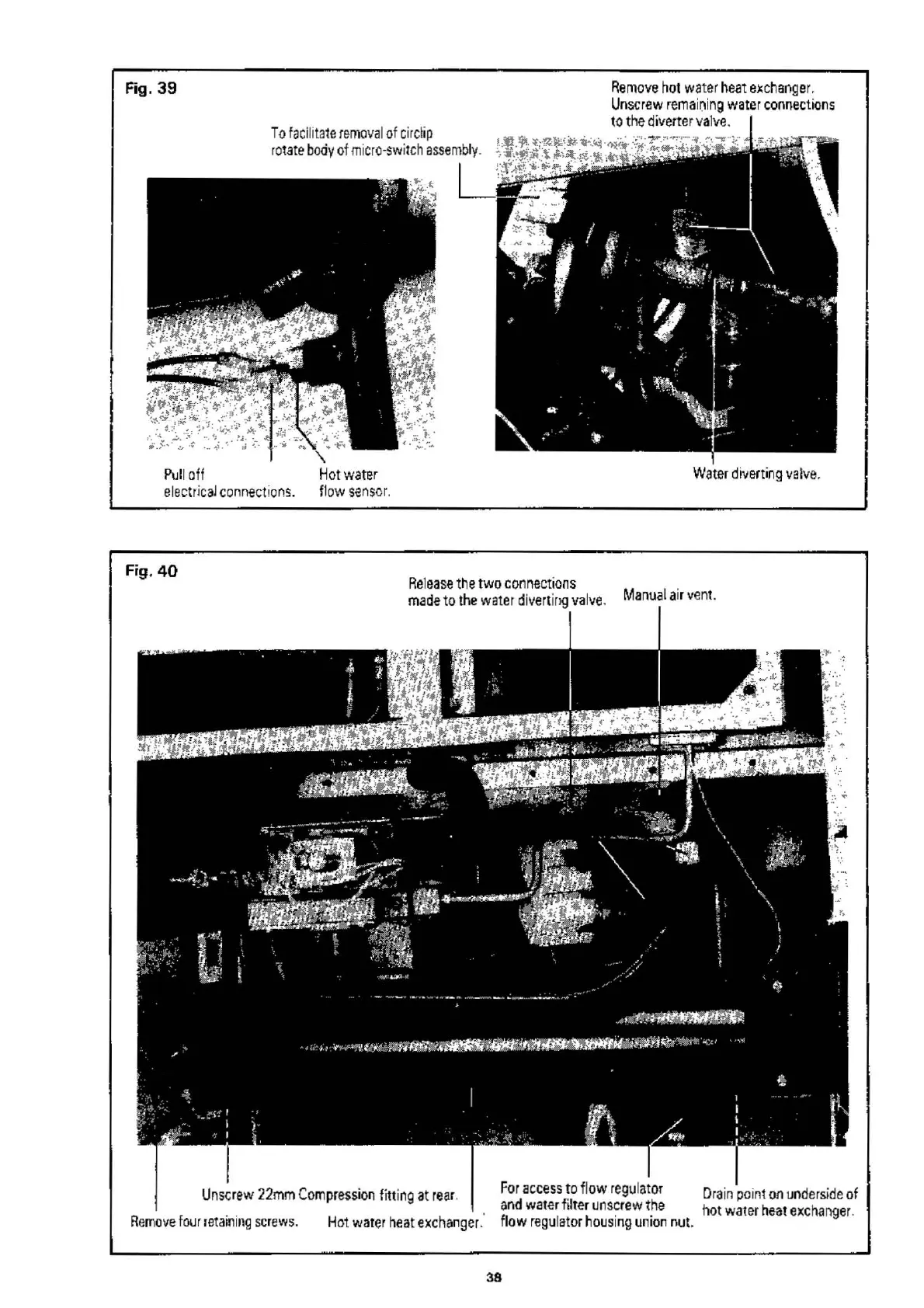

Fig . 39
To fac ili tate remova l of ci rctip
ro tate body of mi cro - sw i tc h assemb ly.
Pull off
electrical connect i ons.
Hot water
f1 ow sensor .
Fig.40
Release the two connections
made to the water di vert i ng va l ve .
Remove hot wa t er heat exchange r.
Unscrew remaining water connections
to the diverterva l ve .
Water dive rtin g valve.
Manua l air vent.
Unscrew 22mm Compression fitti ng at rear . For access to fl ow r egu l ator Dra in po i nt on unde rsi de of
and water filter unscrew the hot water heat exc h anger .
Remove four retaining screws . Hot water heat exchanger .' flow regu l ator hous i ng union nut.
38
