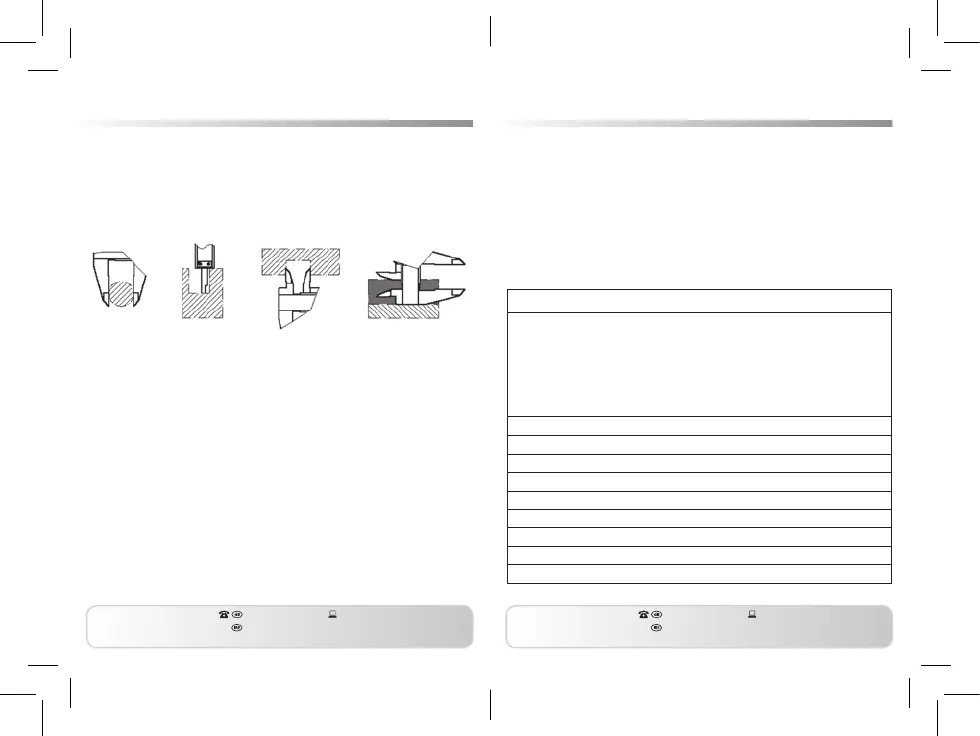

Measurements
a) Outer measurement b) Depth measurement
c) Inner measurement d) Staged measurement
a) b) c) d)
Tip
Use the fine-tuning wheel for precise measurements.
It simplifies the precise setting of the caliper gauge.
Support table
Practical support table for cutting threads (also see the back of
the caliper gauge):
Column 1: Screw size
Column 2: Thread pitch
Column 3: Min. drill hole diameter
Column 4: Matching standard drill size
Metr. ISO
Nenn
Screw
ext.
extr.
Ø mm
Stg
Thread
Pas
Paso
mm
Kern
Hole
int
núcleo
Ø mm
Bohr
Drill
mèche
broca
Ø mm
3 0,5 2,46 2,5
4 0,7 3,24 3,3
5 0,8 4,13 4,2
6 1 4,92 5
8 1,25 6,65 6,8
10 1,5 8,38 8,5
12 1,75 10,11 10,2
16 2 13,84 14
20 2,5 17,29 17,5
