8 SERVICE WORK ON THE CHASSIS
14

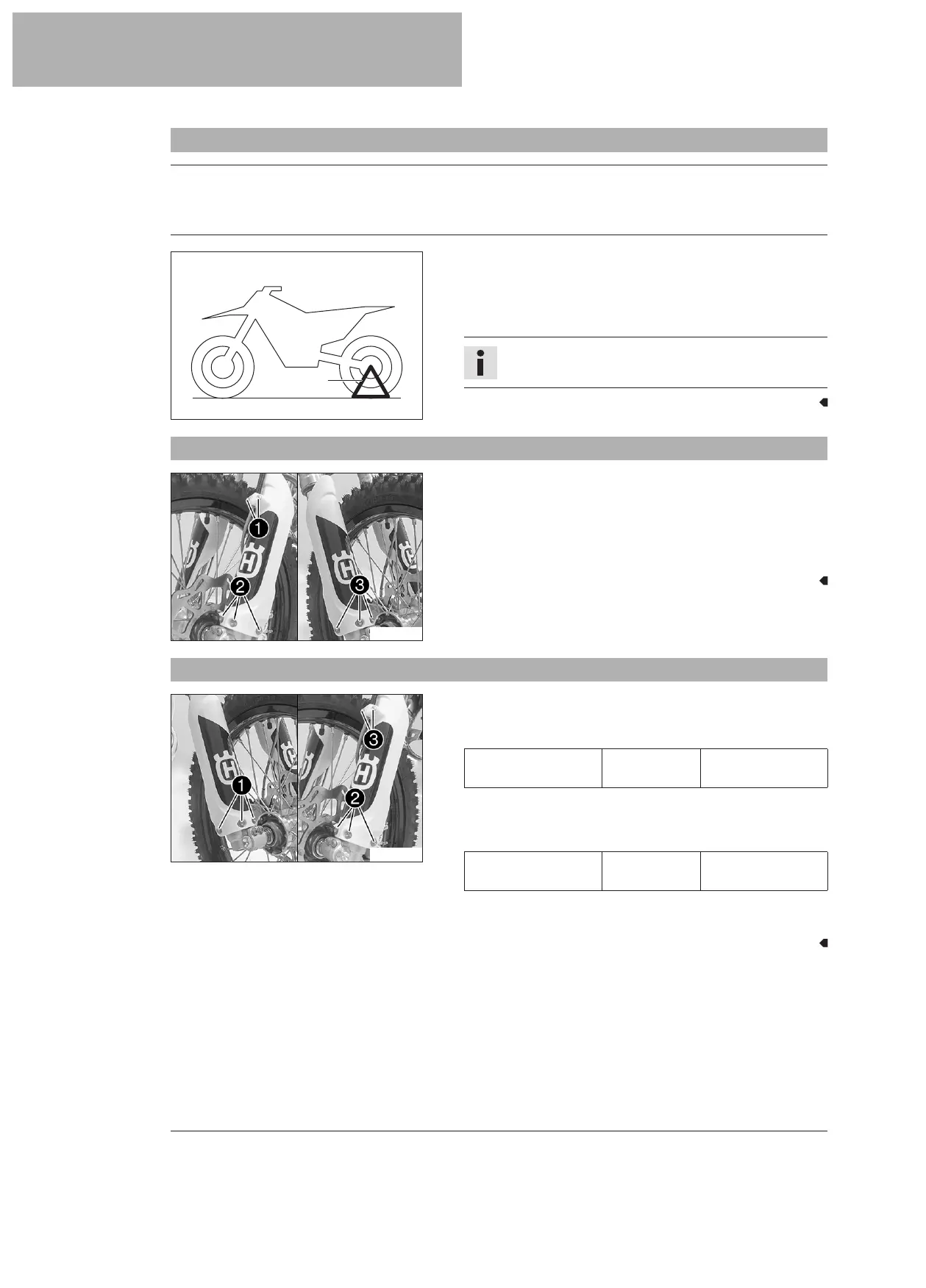

8.6 Removing the motorcycle from the lift stand
Note
Danger of damage The parked vehicle can roll away or fall over.
– Park the vehicle on a firm and level surface.
0
0
11
402001-10
– Remove the motorcycle from the lift stand.
– Remove the lift stand.
–
To park the motorcycle, insert plug-in stand
1
into the left
side of the wheel spindle.
Info
Remove the plug-in stand before riding.
8.7 Removing the fork protector
A00140-10
–
Remove screws
1
and take off the clamp.
–
Remove screws
2
on the left fork leg. Take off the fork pro-
tector.
–
Remove screws
3
on the right fork leg. Take off the fork pro-
tector.
8.8 Installing the fork protector
A00141-10
– Position the fork protector on the right fork leg. Mount and
tighten screws
1
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
– Position the fork protector on the left fork leg. Mount and
tighten screws
2
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
– Position the brake line and clamp. Mount and tighten
screws
3
.
