– Adjust the air pressure as specified.
Guideline
Air pressure 5 bar (73 psi)
Changing of the air pressure
in steps of
0.2 bar (3 psi)
Minimum air pressure 4 bar (58 psi)
Maximum air pressure 8 bar (116 psi)
Info
Never adjust the air pressure to a value outside the
stated range.
– Disconnect the fork pump from the left fork leg.
When disconnecting, excess pressure will escape from the
hose – the fork leg does not lose any air.
The fork pump indicator switches off automatically after
80 seconds.
– Mount the protection cap.
Finishing work
– Remove the motorcycle from the lift stand. ( p. 14)

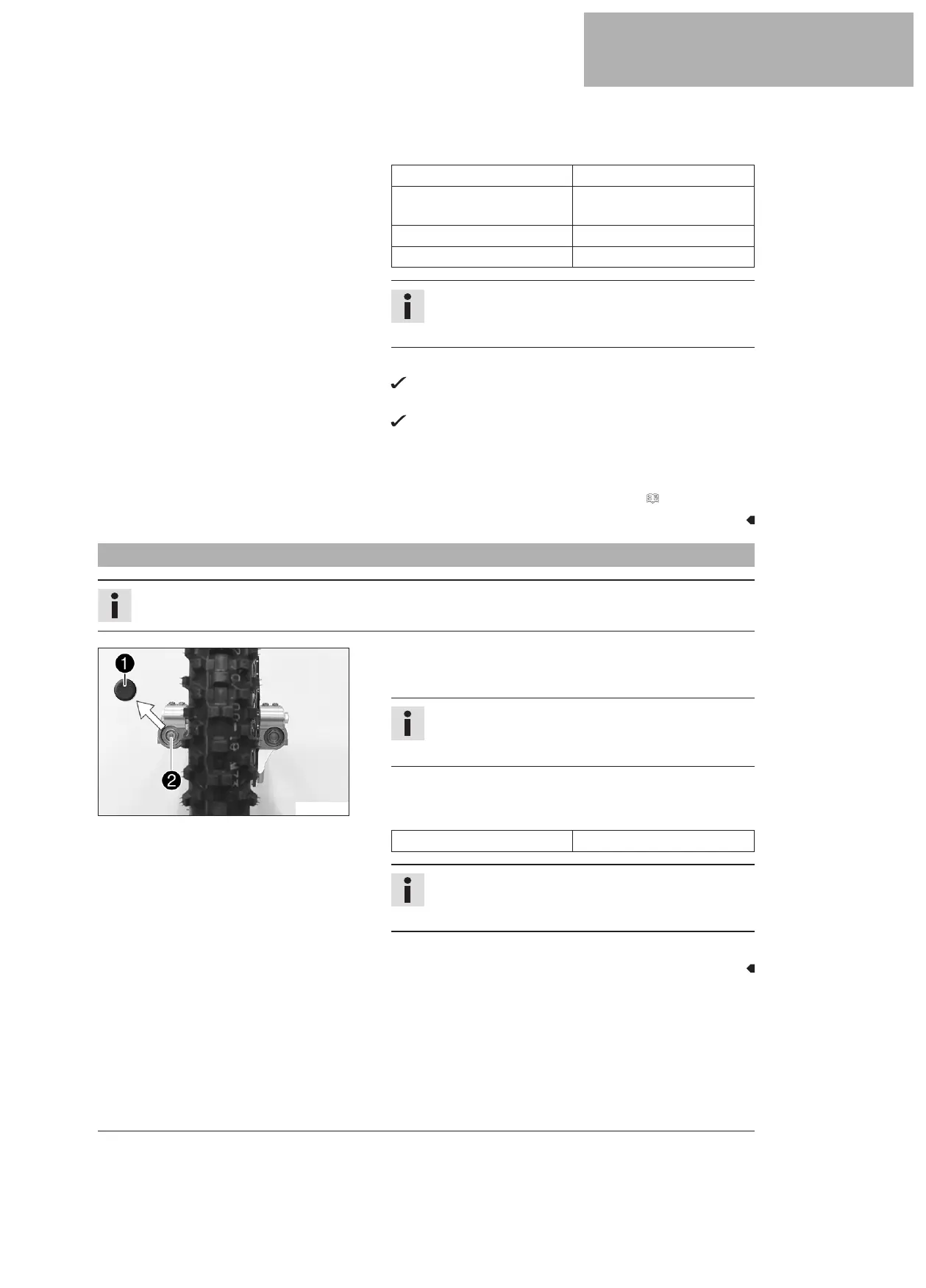

9.5 Adjusting the compression damping of the fork
Info
The hydraulic compression damping determines the fork suspension behavior.
H02544-10
–
Remove protection cap
1
.
–
Turn adjusting screw
2
clockwise all the way.
Info
The adjusting screw
2
is located at the lower end of
the right fork leg.
– Turn counterclockwise by the number of clicks corresponding
to the fork type.
Guideline
Compression damping 16 clicks
Info
Turn clockwise to increase damping; turn counterclock-
wise to reduce damping.
–
Mount protection cap
1
.
