Wren Kitchens BASE UNIT 600 - Deep Drawer Assembly

BASE UNIT
600 - 1000 Hob
2/3 Drawer
Deep Drawer
Assembly
For Internal Use: FI.WR.INS.058_WKIN00112_BASE_600-1000_2-3Drw_Hob_Rev1.inddPage 3

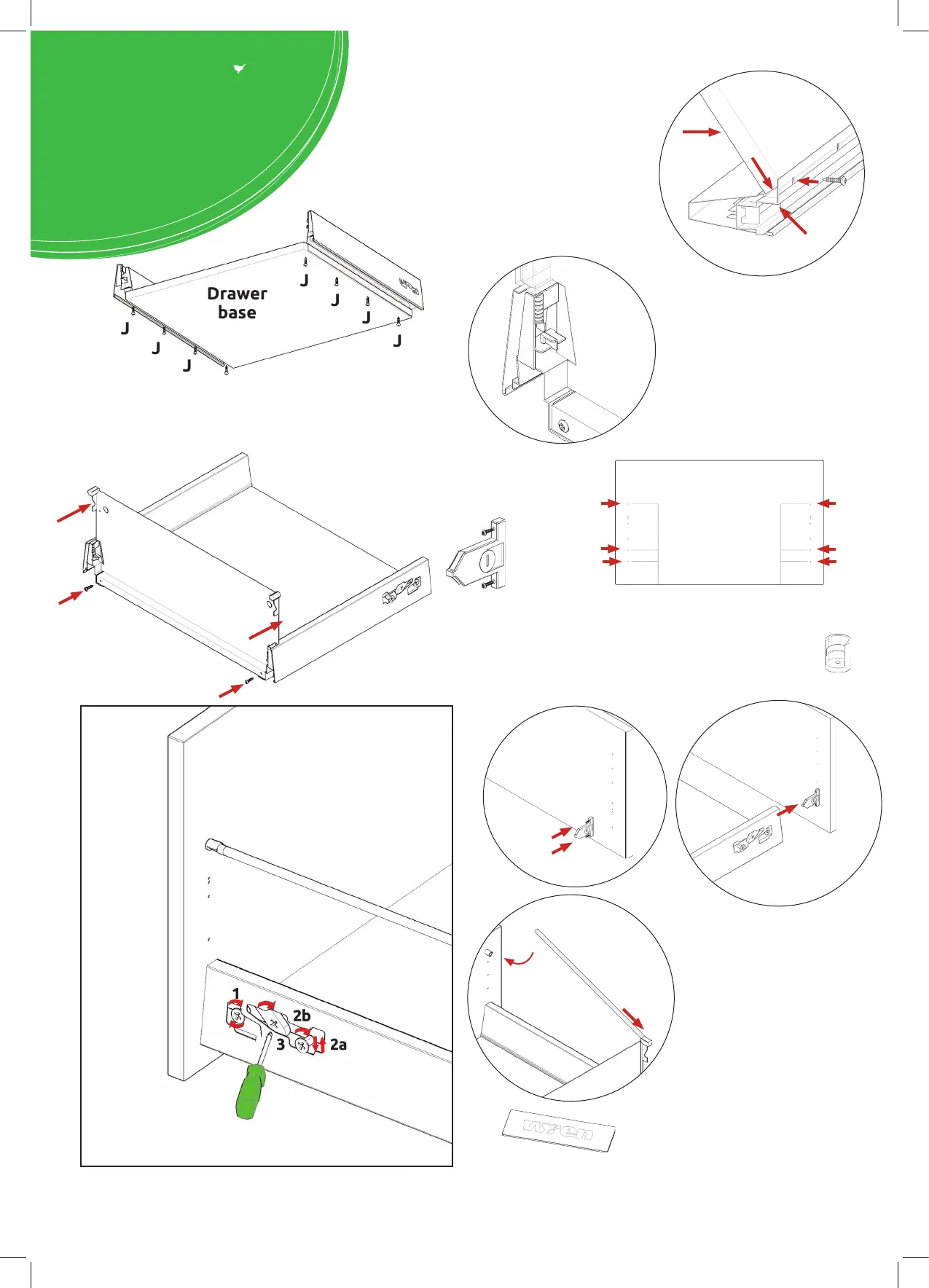

Step 1.
Secure drawer base to drawer side using
4 x 16mm drawer runner screws (J) in
holes provided.
Seat the edge of drawerbase tight
into corner ofcasing, as shown.
The decorative face of drawer base
to be positioned as shown.
J
J
J
J
J
J
Drawer
base
Fixing
clip
& (Q)
Fixing
clip
& (Q)
Drawer
side
Drawer side
xing clip
Q
Q
2
1
J
J
Step 2.
Clip on metal back
panel to drawer base
& drawer sides.
Y & L
Y & L
Step 5.
Draw Adjustment
Screw point 1 as shown to
adjust drawer frontal
right & left.
Step 6.
Fit Gallery Rail into the
top corners of Metal
BackPanel.
Locate front end of the
Gallery Rail into the
opening of the gallery
Head, which is secured to
the frontal as shown
Step 7.
Fit Drawer Cover Caps
over drawer side adjustment.
Drawer Cover Cap
Drawer Frontal
Adjustment
Screw point 2a
as shown to adjust
drawer frontal up & down.
Tighten 2b
once in position.
Releasing 
Screw point 3
whilst applying downward pressure as
shown to release.
View on side of drawer side
Deep
drawer
Front of drawer
Decorative
face
Drawer
base
J
J
Metal back
panel
Drawer base
white decorative
face up
Step 3.
Screw back panel in position using
2 x 16mm screws to drawer base in holes provided.
Step 4.
Frontal Attachment
Secure 
using 2 x 21mm screws (Q) in pilot holes provided as
shown.
Fixing clip
Gallery Head
Repeat step 1 so both drawer
sides are attached to drawer base.
Drawer
frontal
Drawer
frontal
View from
back
Metal
back
panel
J
231mm
99mm
67mm
231mm
