Wren Kitchens BASE UNIT 600 - Drawer Runner Installation Guide

BASE UNIT
600 - 1000 Hob
2/3 Drawer
Assembly Guide
For Internal Use: FI.WR.INS.058_WKIN00112_BASE_600-1000_2-3Drw_Hob_Rev1.indd
Page 5
2 drawer
3 drawer

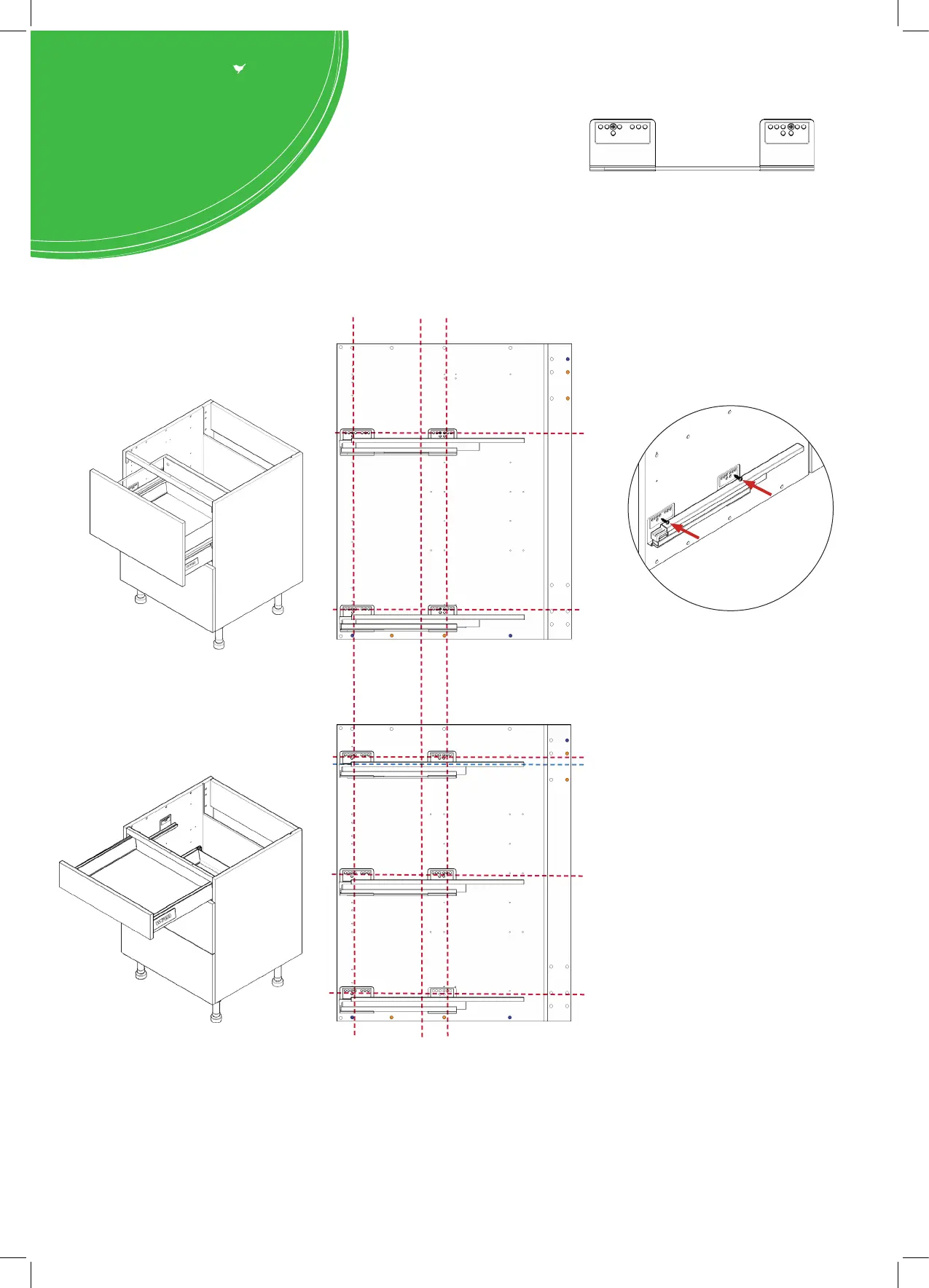

Step 1.
To attach drawer runner
screw into end panels (B)
using 2 x 16mm screws (J)
per drawer rail, into
pilot holes provided,
3rd hole from front,
as shown.
In the case of a 140 Dummy
drawer, utilise secondary
drilling
(blue)
to secure
xing clips.
B
B
37mm 261mm
74mm
646mm
360mm
431mm
74mm
from front
from front
from base
Drawer runner bracket screw position
JJ
J
J
from base
636mm
