BASE UNIT
600 - 1000 Hob
2/3 Drawer
Assembly Guide
For Internal Use: FI.WR.INS.058_WKIN00112_BASE_600-1000_2-3Drw_Hob_Rev1.indd
Page 8

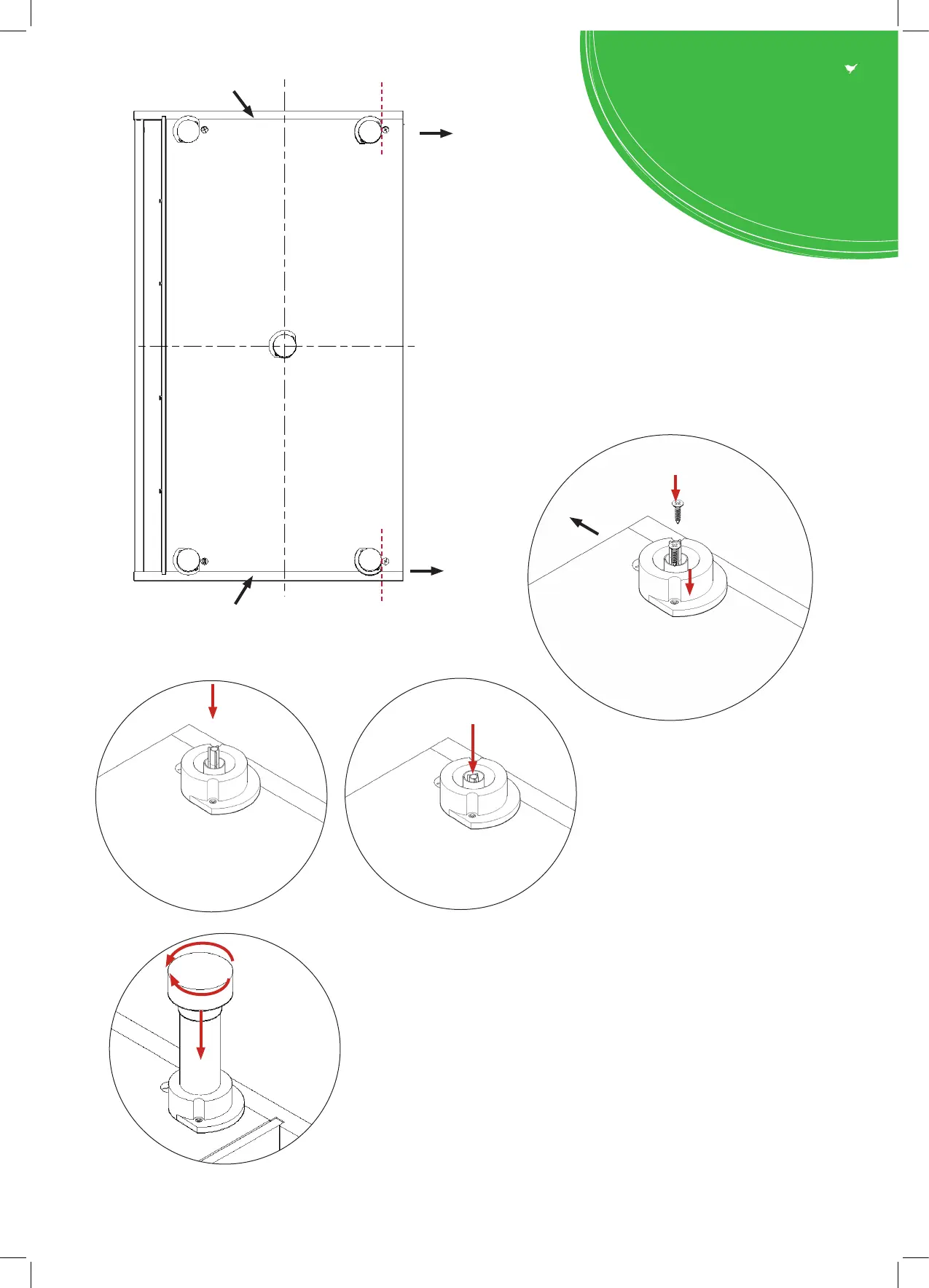

Step 9.
Secure each of the legs into place
with 2 x 15mm screws (L).
600-800 Width Cabinets, 4 legs
1000 with Cabinets, 5 legs
Step 11.
Push leg rmly down into leg base.
Adjust legs to 155mm before turning carcass
upright. Once in situ level accordingly.
Ensure legs are rotated as shown so that part
of it is supporting the end panels (B).
Front legs should have at edge to the front.
Leg position diagram
1000 Carcase used for example
C
C
B
L
L
B
B
B
Front
Front
Front
C
C
B
B
Step 10.
Lightly hit centre peg of leg
base with hammer until ush.
