BASE UNIT
600 - 1000 Hob
2/3 Drawer
Assembly Guide
For Internal Use: FI.WR.INS.058_WKIN00112_BASE_600-1000_2-3Drw_Hob_Rev1.indd
Page 7
9mm

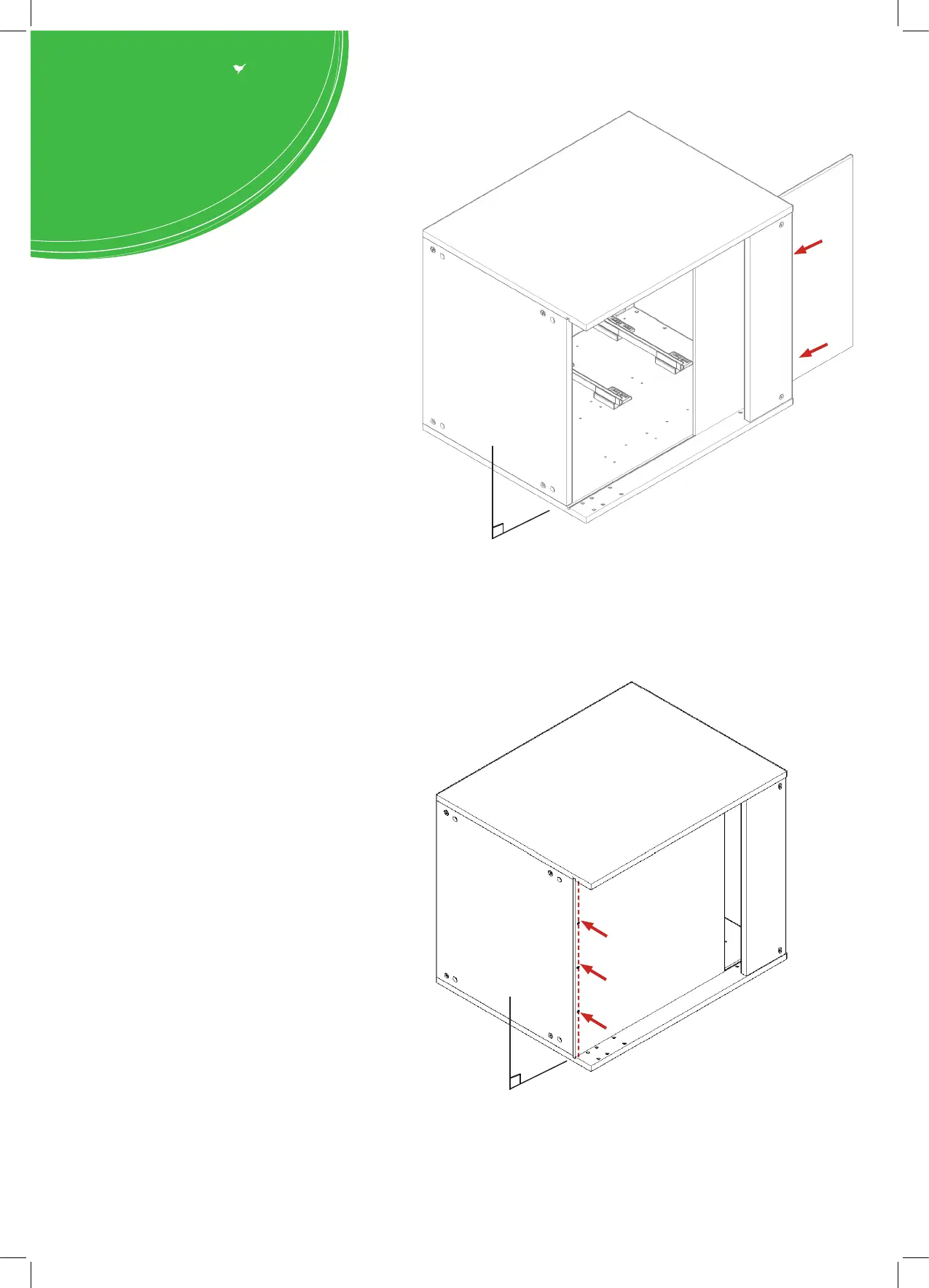

Step 6.
Slide back panel (A) into
groove of end panels (B).
The back Panel (A) is to be modied accordingly
to suit Customer Requirements,prior to inserting
into cabinet. for 1000 width cabinets,
the Back panel.
Once back panel (A) is in position, ensure the
panel is ush & square with bottom of
end panels (B).
Step 7.
Hand tighten all cam locks , this will
expand cam dowels (G) and tighten the
unit together.
Step 8.
Ensure carcass is square. Secure back panel (A)
with 3 or 4 x 30mm screws (K) equally spaced at
the bottom of back panel (A) into base panel (C),
as shown.
Ensure you screw into the centre of the base
panels (C) (9mm from the edge).
B
E
C
A
K
B
C
A
600 Carcase used for example
