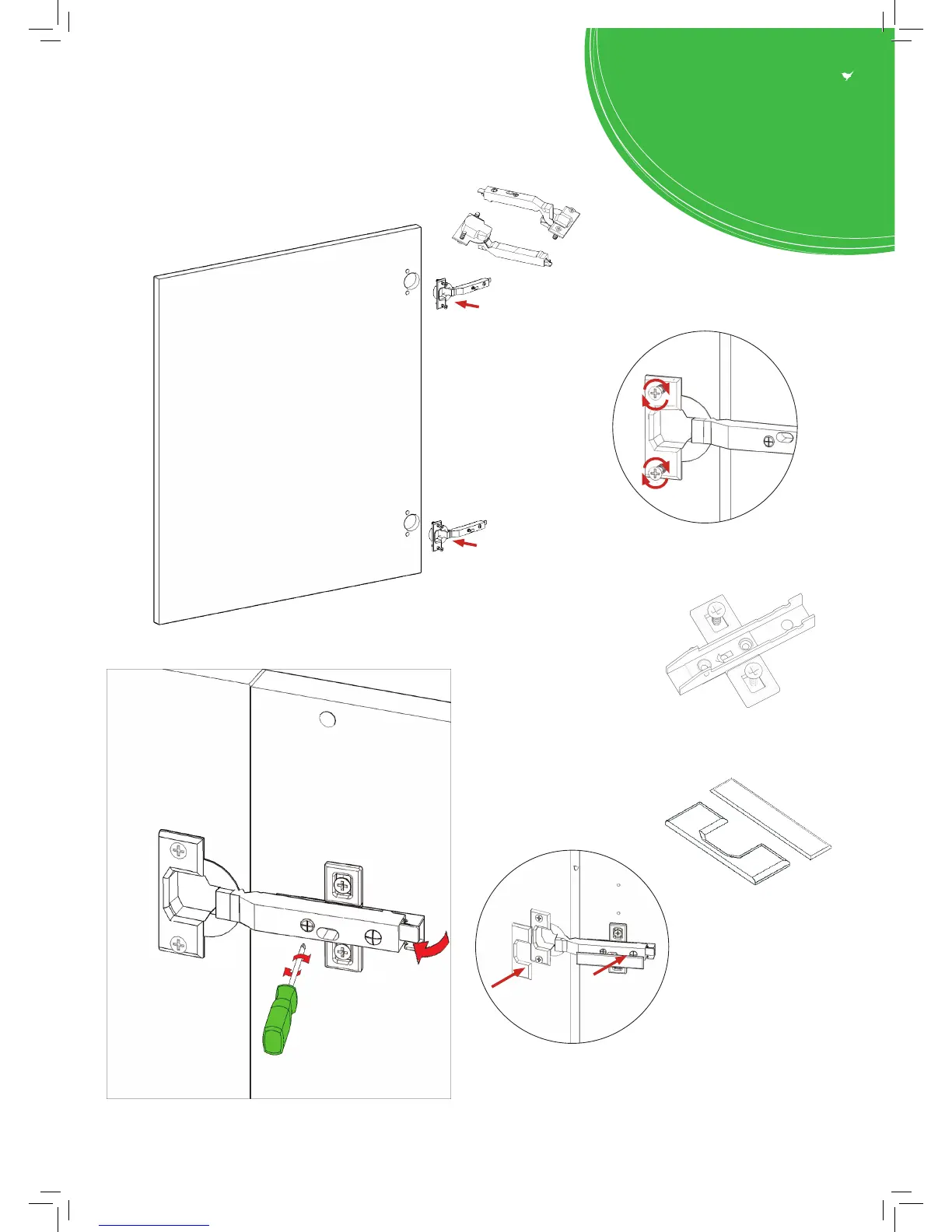

Step 14.
Insert hinge in top & bottom
holes as shown.
Step 15.
Secure hinges by tightening
2 x screws with hinge dowels
attached. These are already
positioned within the hinges.
Step 16.
Attach the door to unit
where required. Adjust
hinges to suit. See below.
To attach door
clip hinge onto hinge
plate and click to secure.
Hinges
Hinge Cover Caps
Step 18.
Fit cover caps to hinge.
Step 17.
Adjust hinge to suit. As shown below.
To adjust hinge using a screw
driver, tighten or loosen as
required at points 1 & 2.
Point 1 - left - right
Point 2 - side - side
1
2
FRONTAL HINGE
ADJUSTMENT
Hinge Plates
Hinges
To Release door
Pull catch as shown,
to release hinge
from the hinge
plate.
