Wren TOWER UNIT - Hinge and Runner Plate Attachment; Appliance Shelf Brackets

For Internal Use: FI.WR.INS.043_WKIN00143_TOWER_600_2AppIncDr+Drw_Rev3.indd Page 4
TOWER UNIT
600 Double Appliances
Inc Dr+Drw
Assembly Guide 2070

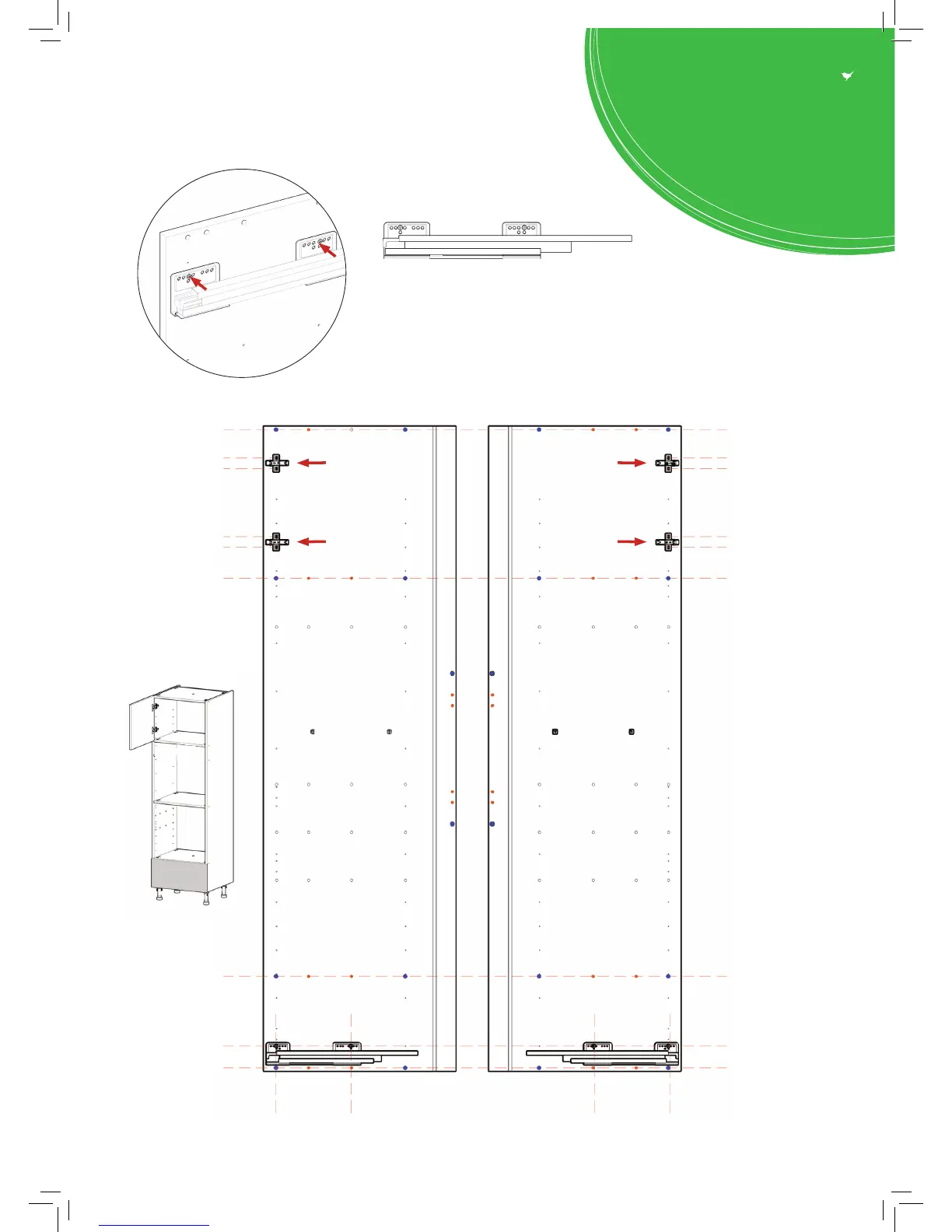

Step 1.
Hinge Mounting Plate
Attach hinge plates onto end panels (B) in locations shown using 4x 15mm
screws (L).
Hinge side to be mounted in accordance to customer kitchen plan.
600+450 Appliance
Inc 1 Door + 1 Drawer
N.B. L Bracket
For appliance shelf, secure
to panel (B) using
4 x brackets (FF)
locate according to
customer appliance
requirements.
1826mm
1794mm
1826mm
1794mm
1592mm
1560mm
1592mm
1560mm
Fixed Shelf 1468mm Fixed Shelf 1468mm
Fixed Shelf 282mm Fixed Shelf 282mm
BTM BTM
TOP
TOP
74mm 74mm
37mm 37mm
261mm 261mm
from base from base
from front from front
B
LEFT HAND RIGHT HAND
L L
L L
L L
L L
B
Example
Locations
ONLY
Example
Locations
ONLY
FF FFFF FF
J
J
Drawer runner position
J
J
