600+450 Appliance
Inc 1 Door + 1 Drawer
For Internal Use: FI.WR.INS.043_WKIN00143_TOWER_600_2AppIncDr+Drw_Rev3.inddPage 5
TOWER UNIT
600 Double Appliances
Inc Dr+Drw
Assembly Guide
2250 Tall

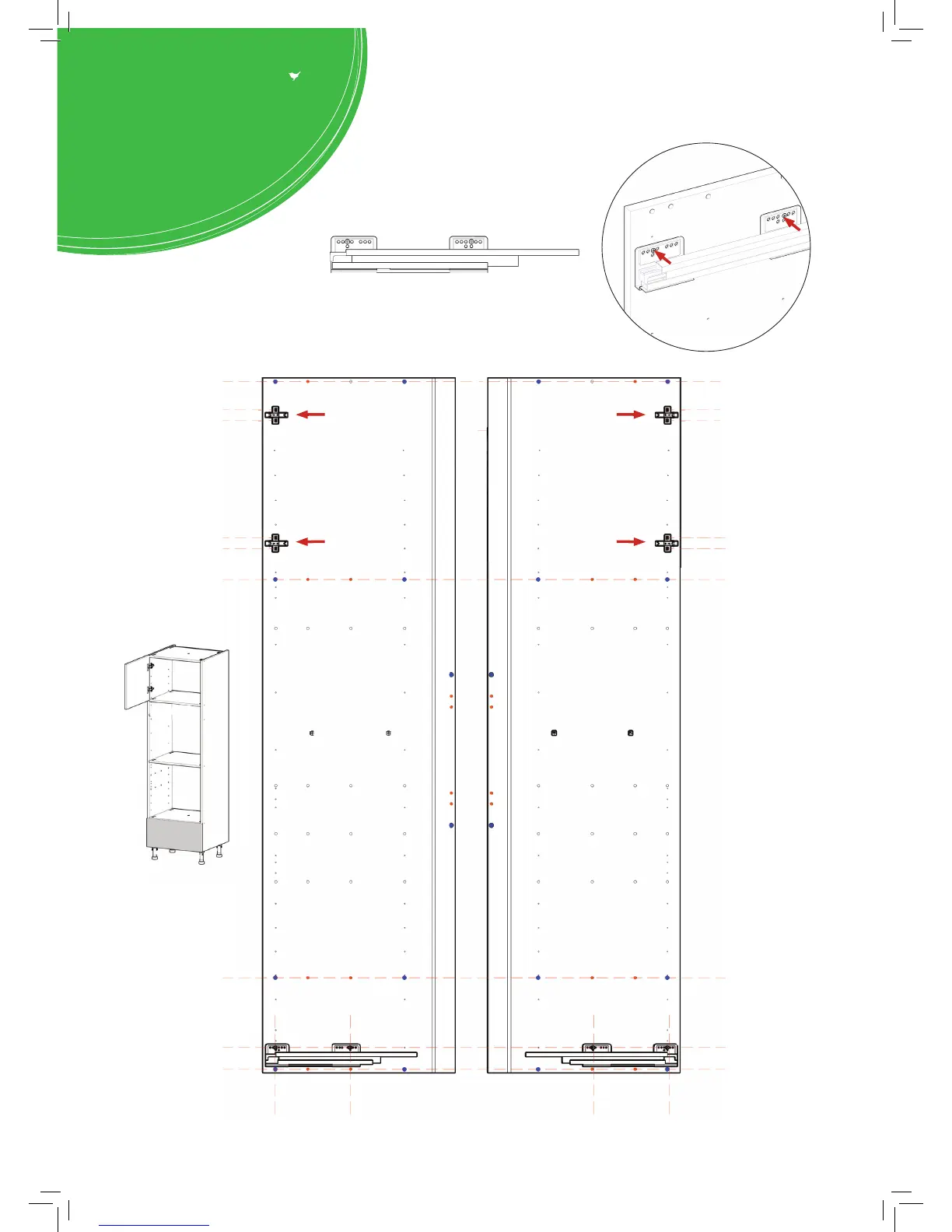

Step 2.
Hinge Mounting Plate
Attach hinge plates onto end panels (B) in locations shown using
4x 15mm screws (L).
Hinge side to be mounted in accordance to customer kitchen plan.
N.B. L Bracket
For appliance shelf, secure
to panel (B) using
4 x brackets (FF)
locate according to
customer appliance
requirements.
2006mm
1974mm
2006mm
1974mm
1485mm
1453mm
1485mm
1453mm
Fixed Shelf 1367mm Fixed Shelf 1367mm
Fixed Shelf 282mm Fixed Shelf 282mm
BTM BTM
TOP TOP
74mm 74mm
37mm
37mm
261mm
261mm
from base from base
from front
from front
B
LEFT HAND RIGHT HAND
L L
L L
L L
L L
B
Example
Locations
ONLY
Example
Locations
ONLY
FF FFFF FF
J
J
Drawer runner position
J
J
Step 1.
To attach drawer runner screw into end panels (B) using
2 x 16mm screws (J) per drawer rail, into pilot holes provided,3rd hole from
front, as shown.
