Wren TOWER UNIT - Unit Securing and Frontal Assembly; Securing the Unit

For Internal Use: FI.WR.INS.043_WKIN00143_TOWER_600_2AppIncDr+Drw_Rev3.indd
Page 9
TOWER UNIT
600 Double Appliances
Inc Dr+Drw
Assembly Guide

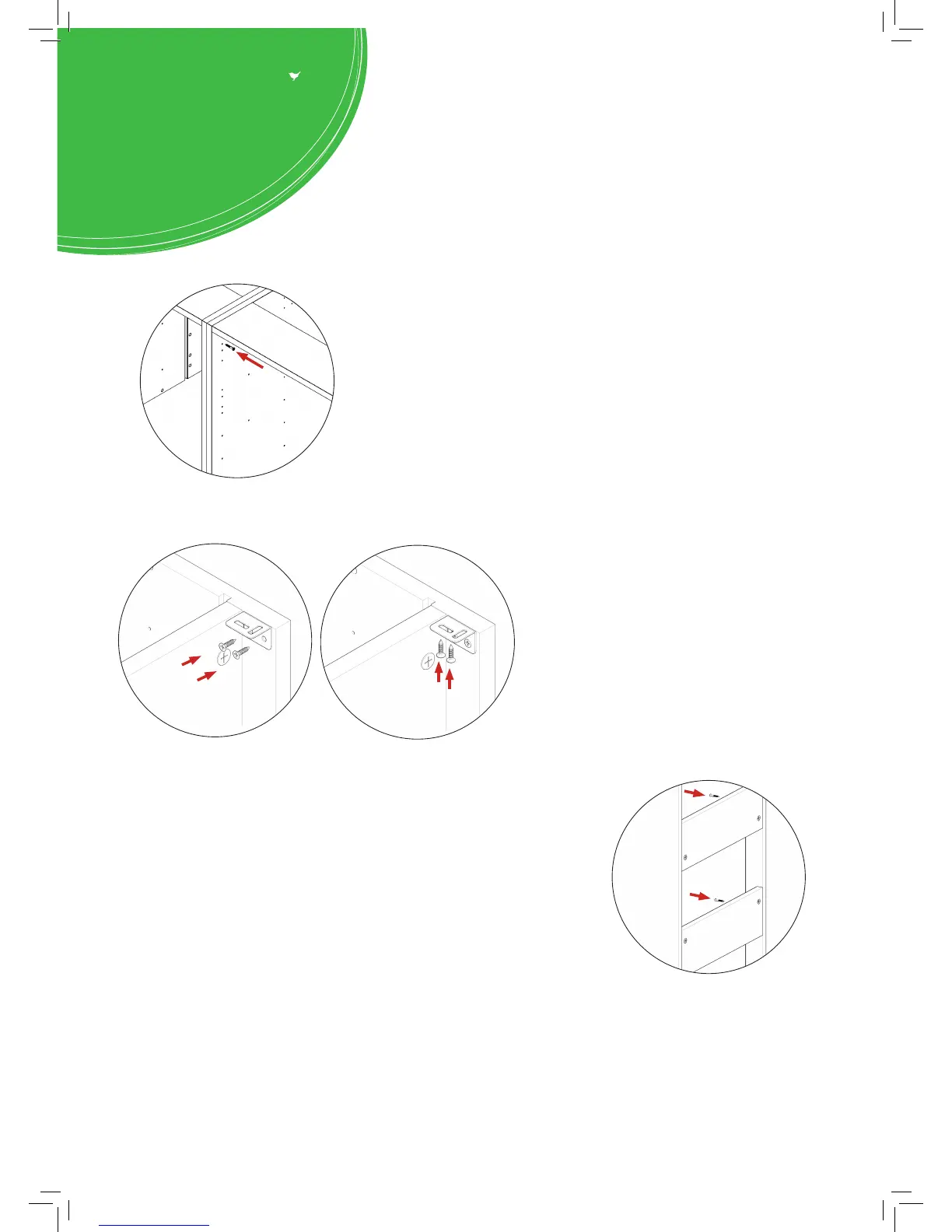

Secure tower to the wall using L brackets.
Use 2 x 15mm screws (L) to secure each of the L
brackets to the cabinets at either side. Then screw
through into the wall as shown.
Screws for xing to walls are not provided as
these vary depending on your wall material and
construction. Ensure appropriate xings for
wall constructions are used.
Secure tower to the wall using screws through rail panel (E) into the
wall as shown.
Screws for xing to walls are not provided as these vary
depending on your wall material and construction. Ensure
appropriate xings for wall constructions are used.
L
E
E
L
K
Securing to Adjacent Units
Screw into any side units using
the 30mm screws (K) provided to secure to unit.
Screw just to the rear of the Hinge Mounting Plate,
at the top and bottom of both sides of the unit,
place a cover cap on the head to conceal it.
