Hydraulic Oil Cooler Removal and Engine cooling area
cleaning Instructions
Sentar Sport and Rapid Height (RH) Stander mowers only

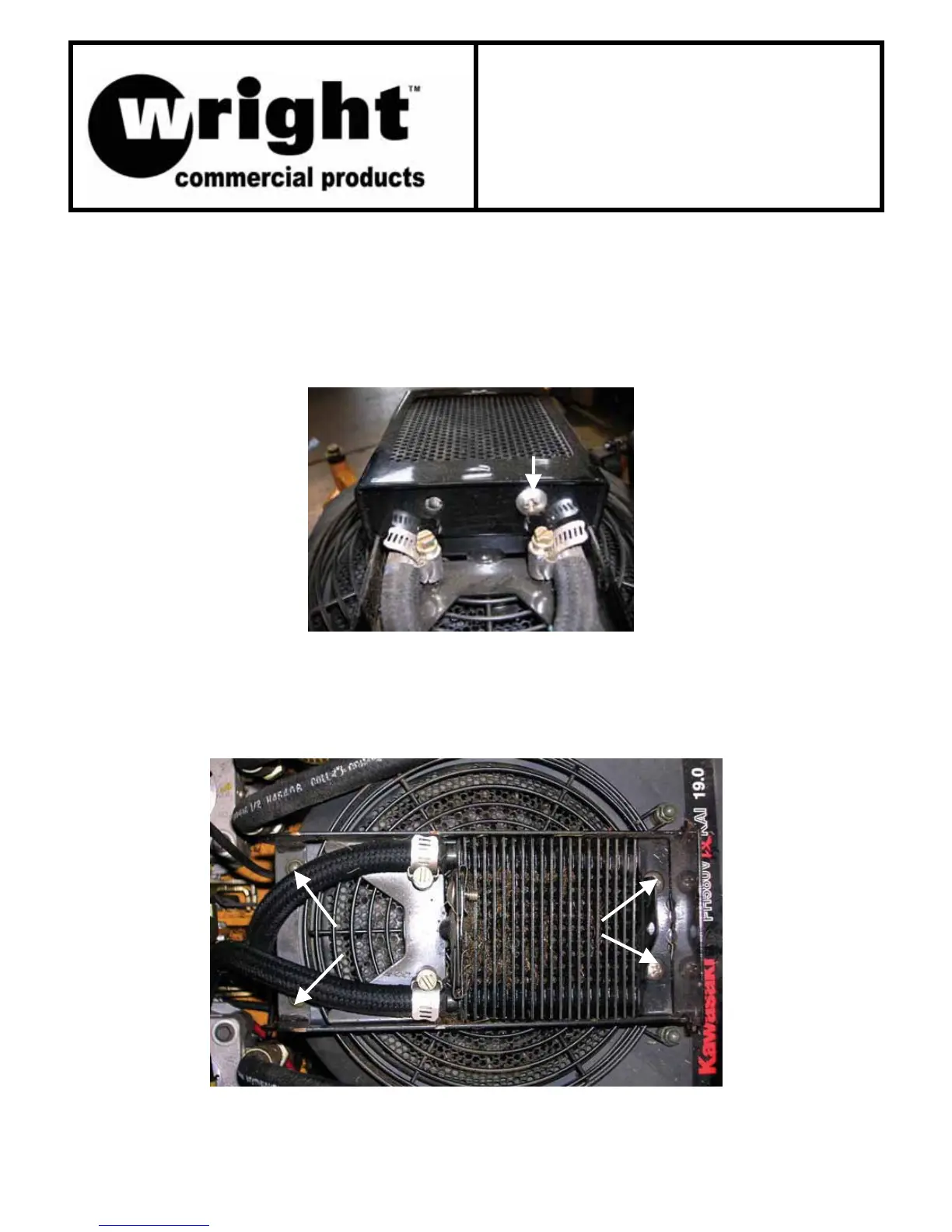

1. Remove cooler cover by removing truss-head screw (Fig 1, A).
2. Remove truss-head screws attaching front (Fig. 2, A) cooler bracket to engine guard
and 2 nuts attaching rear bracket to engine guard. (Fig. 2, B)
3. Lift cooler from engine, reinstall and tighten acorn nuts
4. Loosen hose clamp (Fig.2, hose 1)
5. Remove knee pad.
CAUTION: There are several cut wire ties behind knee pad that can cut you.
