Bulletin # 055
6 Pages
May 10, 2006

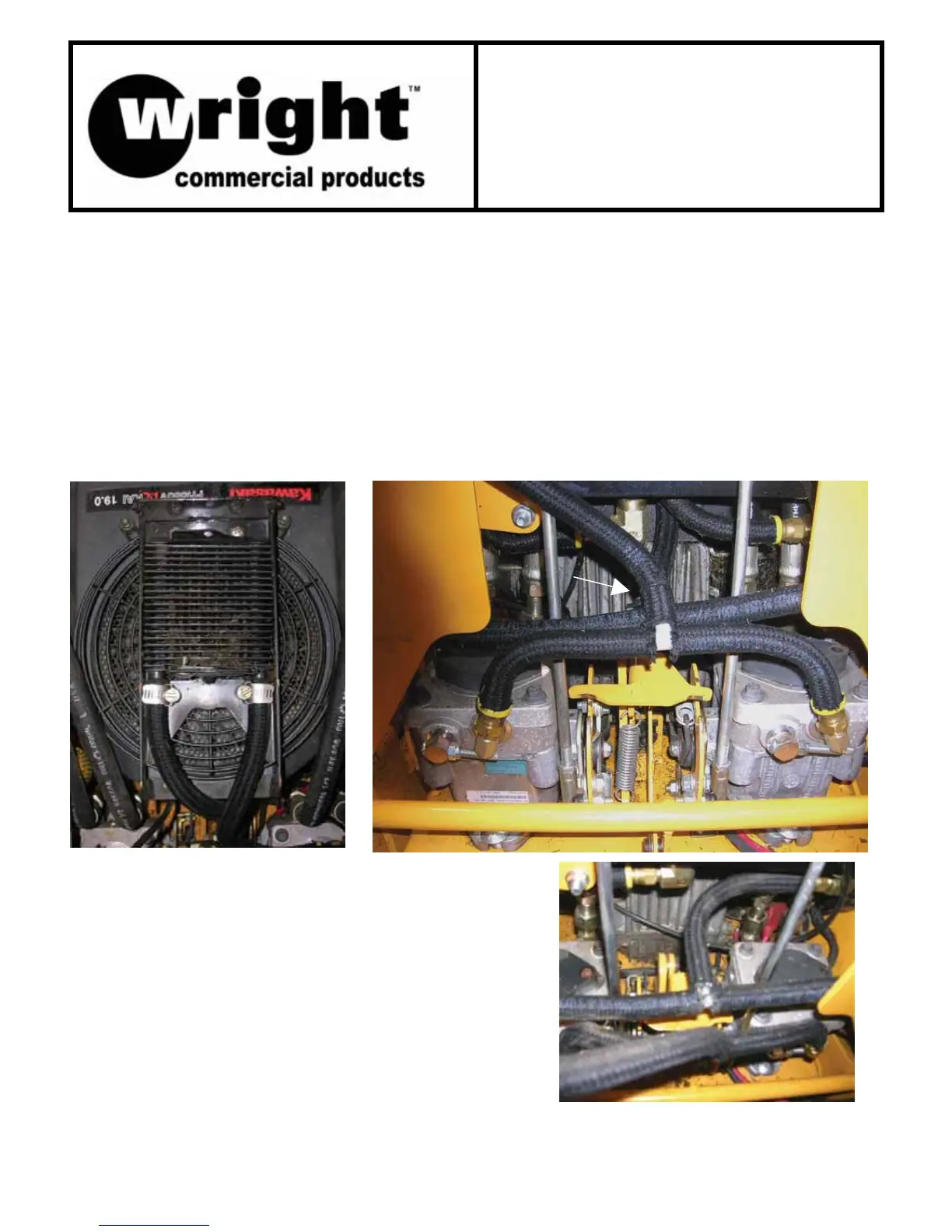

NOTE: The two photos below (Fig’s 3 & 4) are using the numbers 1 & 2 to indicate
which hose from Fig 3 will correspond with the hose from Fig 4.
6. Cut wire ties holding feed and return line together (see arrow in Fig 4)
7. Crimp hose at hydro tank return (Fig 4 hose 1)
NOTE: Crimping tool would be ideal, if you do not have, use care not to crush
hose.
8. Hose 2 needs to be cut from the return line tee. Use care not to cut yourself and
not to damage the tee.
NOTE: Oil may spill
9. Remove line 1 from cooler (Fig.3) and cut 5” from
end NOTE: Some oil may spill
10. Connect hose to return line tee (Fig 5 hose 1)
11. Check fluid level and fill as needed. Fig 5
12. Check for leaks and re-install knee pad.
13. FOR RETAILED MOWERS ONLY:
Remove engine shroud/fan housing and
thoroughly remove all grass and debris from
engine and fan using compressed air. This
bulletin provides an additional 0.4 hours of labor
for this step to be performed on retailed mowers.
* This is an engine manufacturer recommended service and should be
done regularly according to the engine manufacturer recommendations
1
2
2
Feed
Return
1
Fig 3 Fig 4
13
