2. Install Lift Bar Linkage:
a. Install lift bar linkage and attach with e-clip. (Fig. 12)
3. Reinstall Lift Handle.
4. Slide Unit Together.
5. Reattach Brake Interlock.
6. Install Front Pins on Lift Axle (Fig 13):
a. Lower jack, this eases in the alignment.
b. Use the deck lift handle to align the engine frame with the front pin holes on
the rear lift axle.
c. Install pin from outside, it may be helpful to disconnect the hydraulic hose retaining
clip for better access.
d. As before machined pin should be flush.
e. Install both sides before tightening.

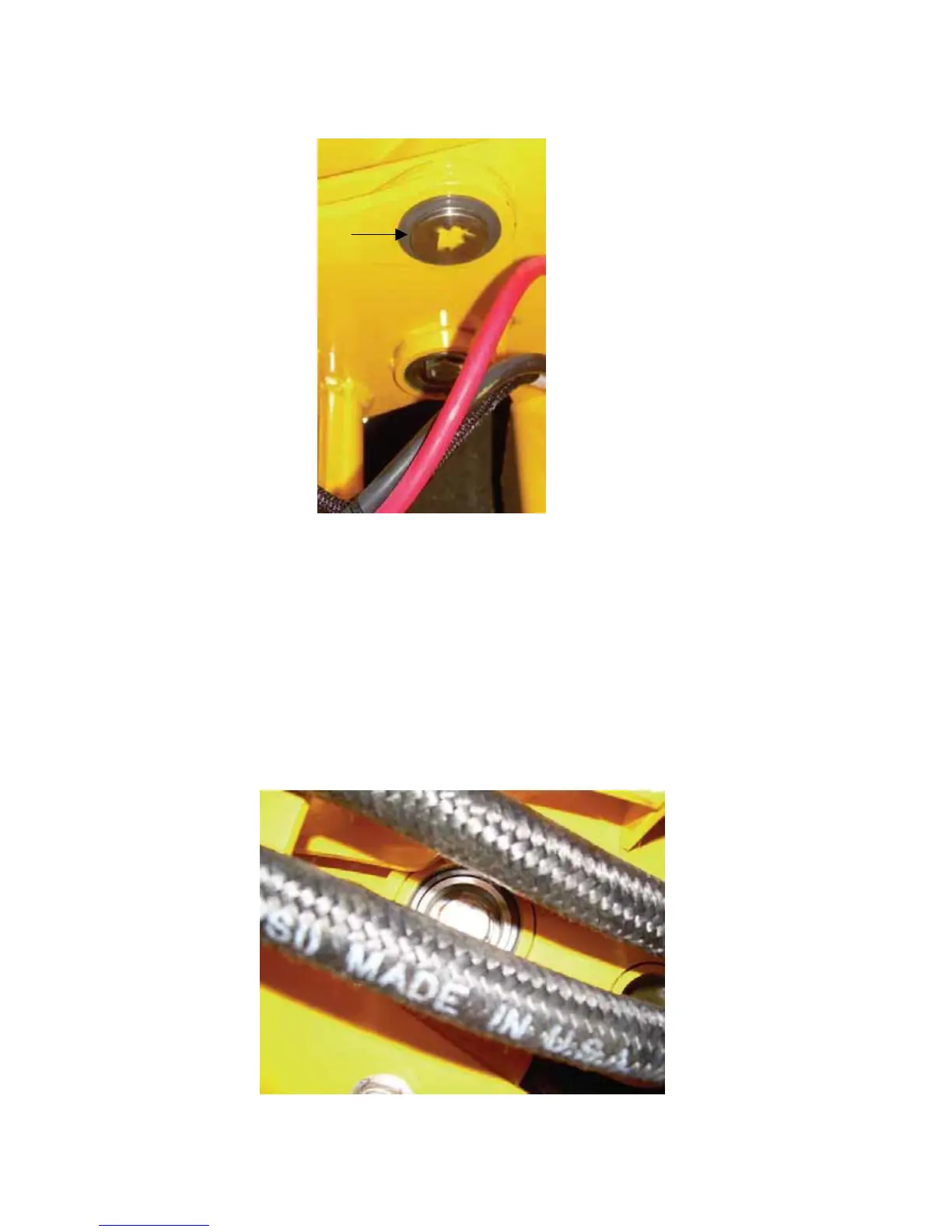

Fig. 12
Fig. 13
57
