Sentar Sport and Stander RH Deck-Lift System
Improvement
Kit-95460005 and 95460006
Removal of Original Lift System
1. Deck Lift Spring Removal:
CAUTION: Be certain to wear eye protection and use care.

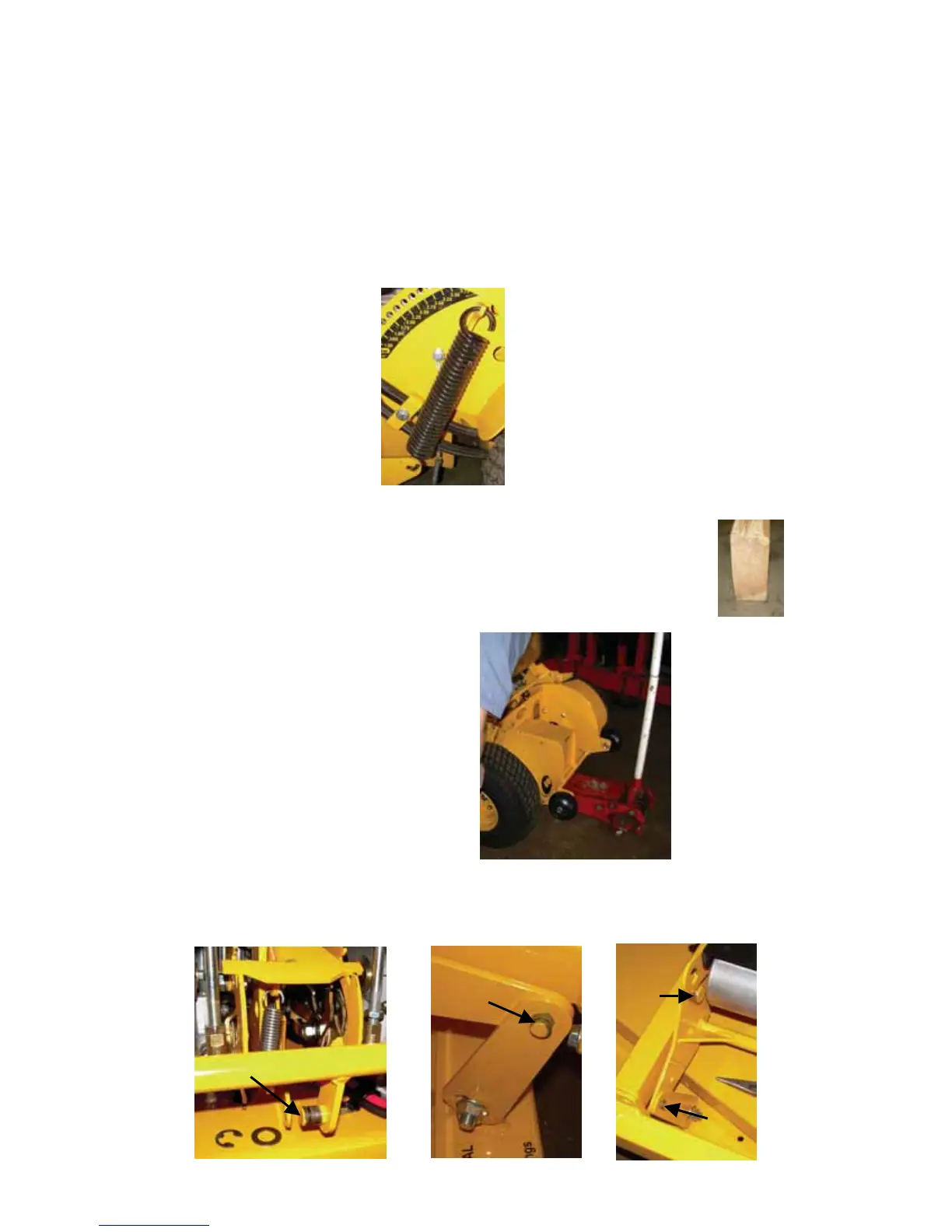

a. Place deck in the highest position and remove Deck-Lift assist spring. (Fig. 1)
2. Support Mower Deck on Boards:
a. Place two 2x4’s under the left and right sides of the deck.
The boards should span the length of the deck, front to rear.
Lower the deck such that it is resting on the 2x4’s. The 2x4’s
should be positioned on the floor as shown in Fig. 2.
3. Jack and Remove Rear Tires: (Fig. 3)
4. Remove E-Clips: (Fig. 4, A, B and C)
a. Remove E-clips from brake bar (A) deck lift hangers (B) and front deck lift linkage. (C)
b. Disconnect pump lock actuator at brake bar. (A)
Fig. 1
A
B
C
Fig. 3
Fig. 2
B
Fig. 4
