5. Disconnect Castor Frame and Frame Rail:
a. Remove the four bolts and nuts
connecting the right half of the front
castor frame to the mower main frame.
This will allow the frame to flex for the
removal of the front lift-axle. (Fig. 5)
6. Remove Front Deck Hangers: (Save Hangers) (Fig. 6)
7. Removing Front Lift Axle:
a. Pull on the side of the frame as shown in Figure 7, to remove the front lift-axle
from the frame.
b. Discard front lift axle.

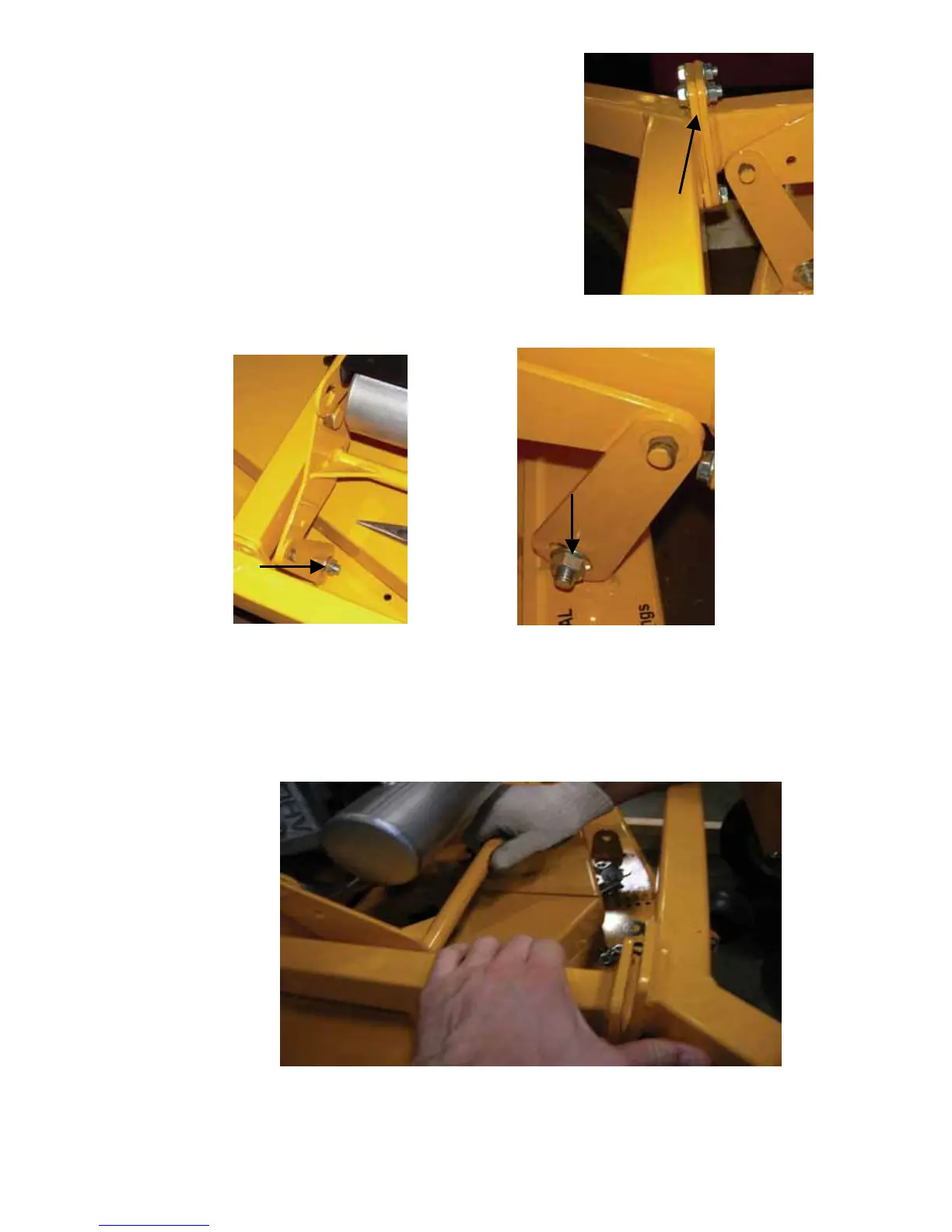

Fig. 5
Fig. 6
Fig. 7
