8. Remove Front Engine Deck Pins:
a. Using ½” socket and wrench remove bolts and nuts (Fig. 8, A) and use a punch
to remove pins. (Fig. 8, B)
9. Separate Fender/Main-Frame From the Engine/Deck Frame:
CAUTION: Use care, separating too far apart may cause fuel line to come off.
a. Kneeling in front of mower, use knees on front frame, hold muffler and push with
knees to slide frame back.
OR
b. Role jack back, use care so jack wont pull out from under mower.
10. Remove Deck Lift Handle and Remove E-Clip From Rear Deck Lift Linkage:
a. Remove 4 nuts and bolts holding deck lift handle. (Fig. 9, A)
b. Slide lift handle forward out of the way as in Fig. 9, B.
c. Remove e-clip from deck lift linkage and discard linkage arm. (Fig. 9, C)

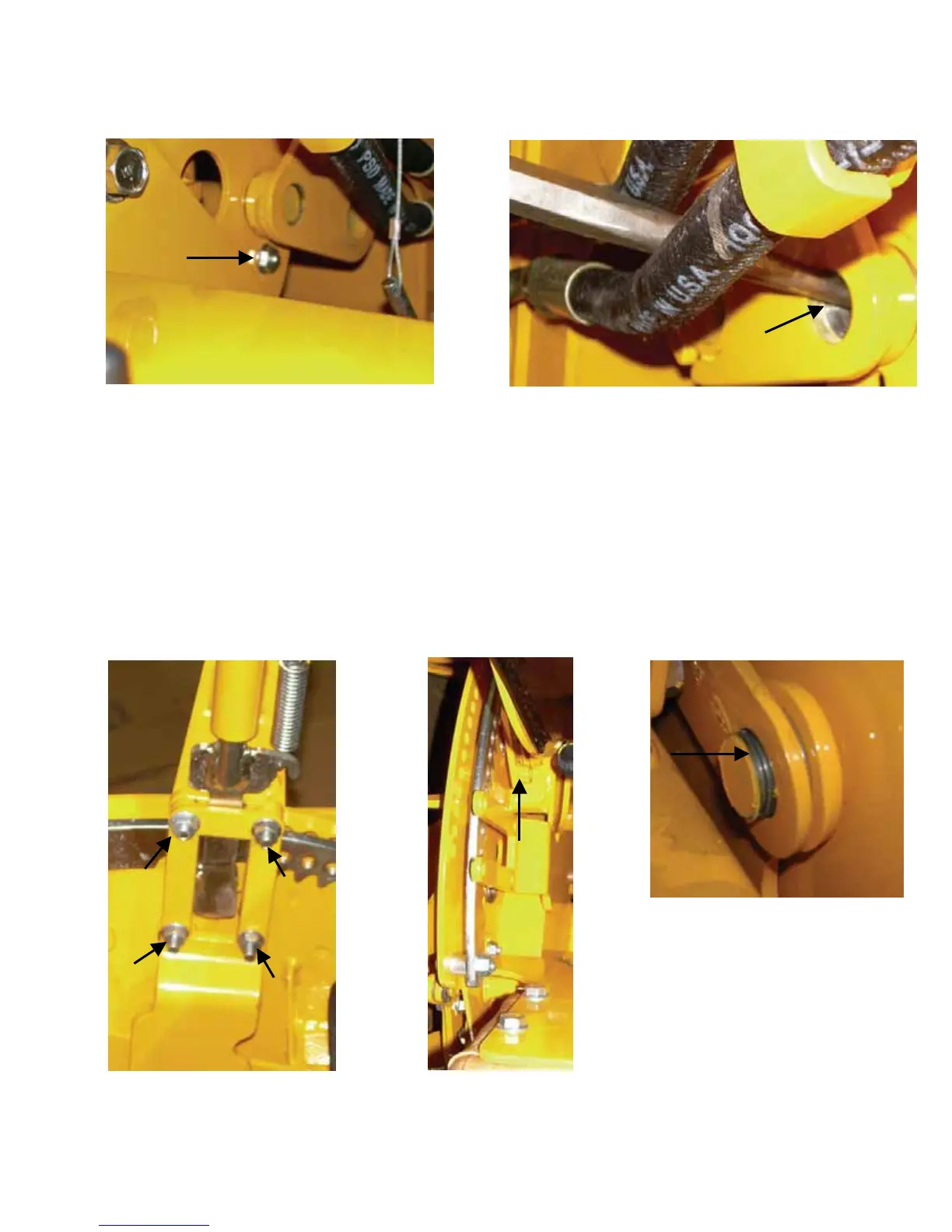

Fig. 8
A
B
Fig. 9, A
Fig. 9, B
Fig. 9, C
