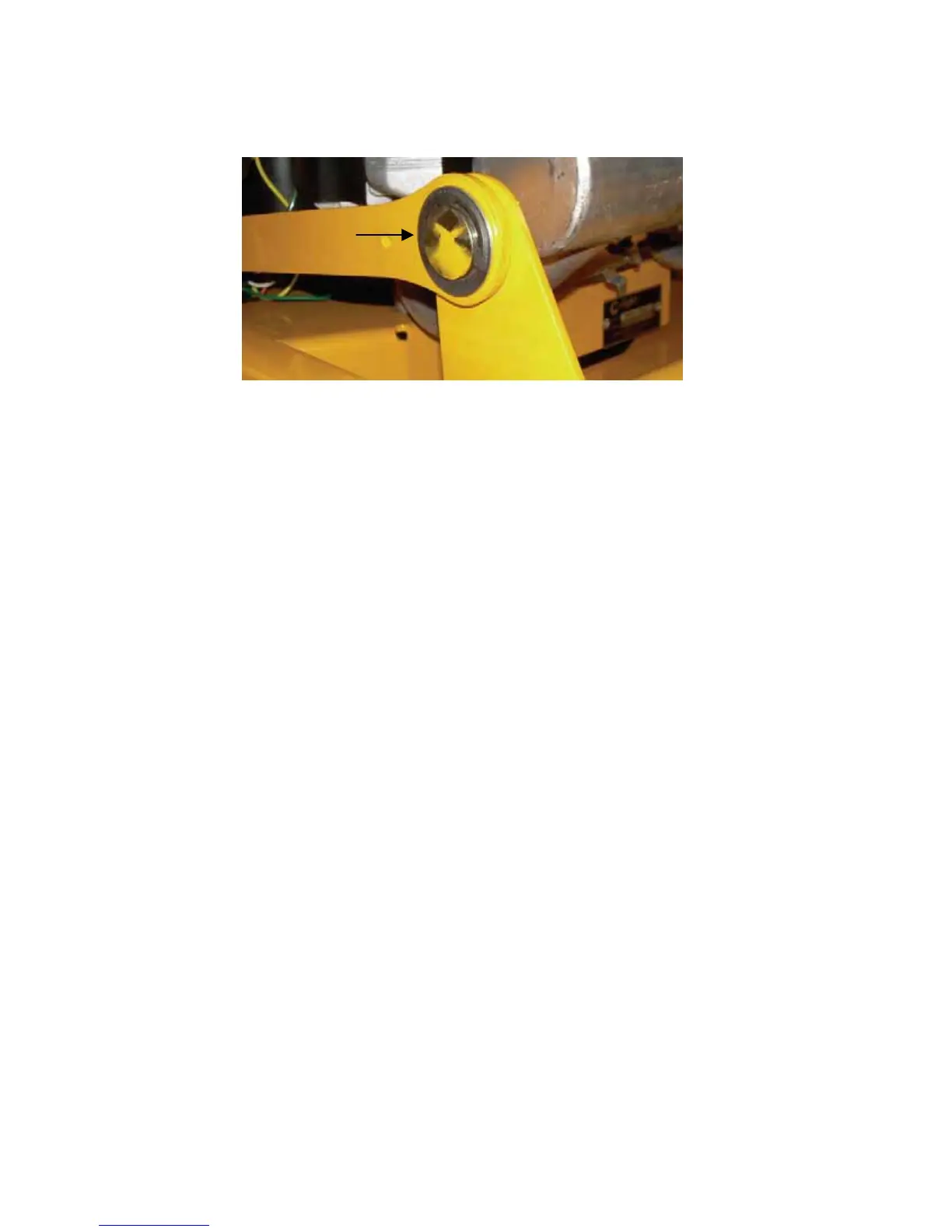

11. Install Connector Arm to the Groove Pin on the Front Lift Axle, Install E-Clip:
NOTE: Use deck lift handle to align. (Fig. 21)
12. Raise Jack and Put on Tires.
13. Raise Deck and Install Deck Lift Assist Springs.
NOTE: The use of a pry bar or a section of angle iron will aid in attaching springs.
a. Remove 2x4’s from under deck.
b. Remove jack
14. Check for Free Movement:
a. Raise the deck up and down feeling for any obstruction.
b. Raise deck in highest position and tighten front deck hanger bolts.
Fig. 21
