S-57

V3307-DI-T-E2B, WSM

ENGINE

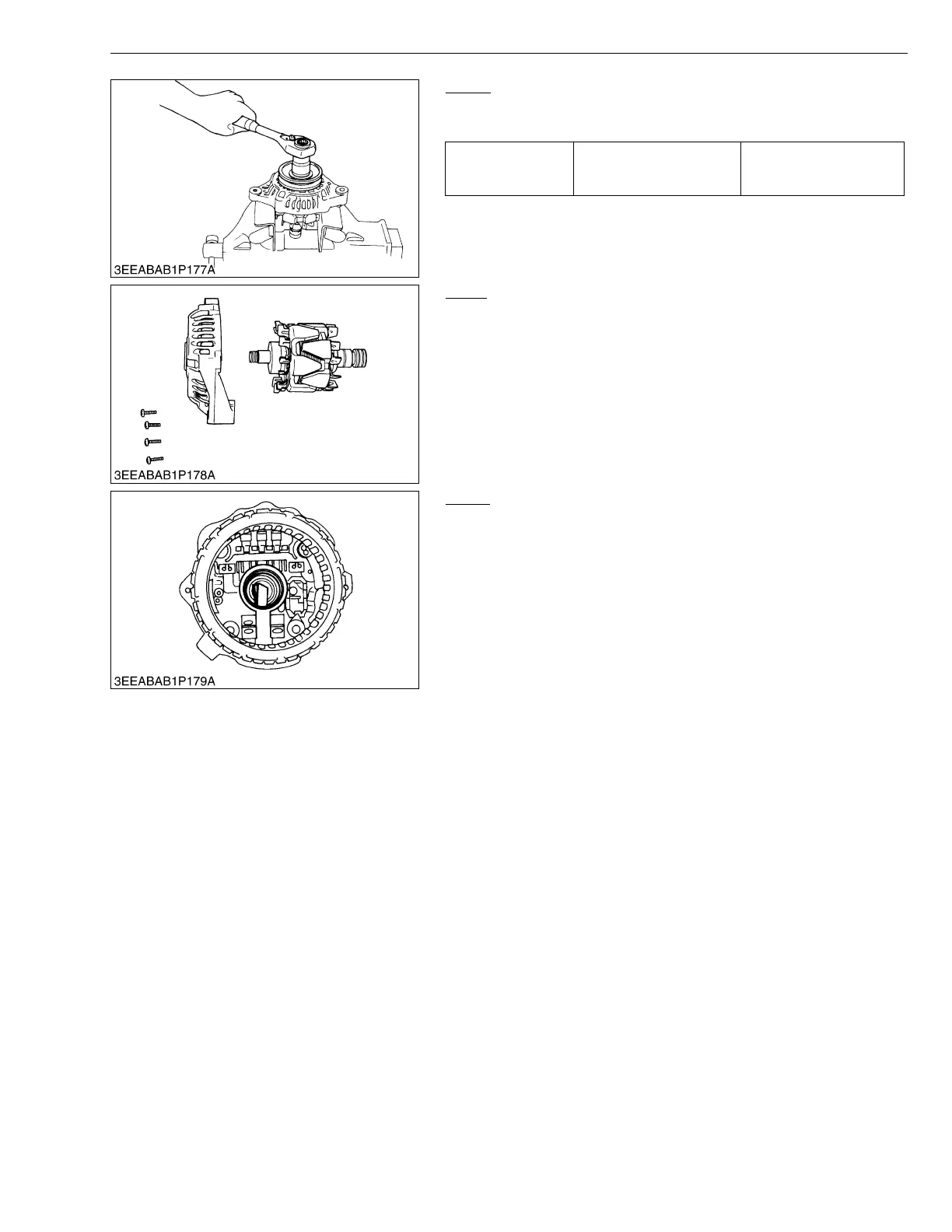

Pulley

1. Hold the rotor (base of the claw) in a vise. Loosen the lock nut

using a M24 box wrench.

W1074849

Rotor

1. Remove the 4 screws and detach the bearing retainer.

2. Temporarily install the nut on the pulley screw, and detach the

rotor.

W1074920

Brush

1. When the rotor is detached, the 2 brushes are found to stretch

out of the shaft hole.

W1075045

Tightening torque Alternator pulley nut

58.4 to 78.9 N·m

5.95 to 8.05 kgf·m

43.1 to 58.2 lbf·ft

KiSC issued 01, 2009 A
