S-76
V3307-DI-T-E2B, WSM
ENGINE

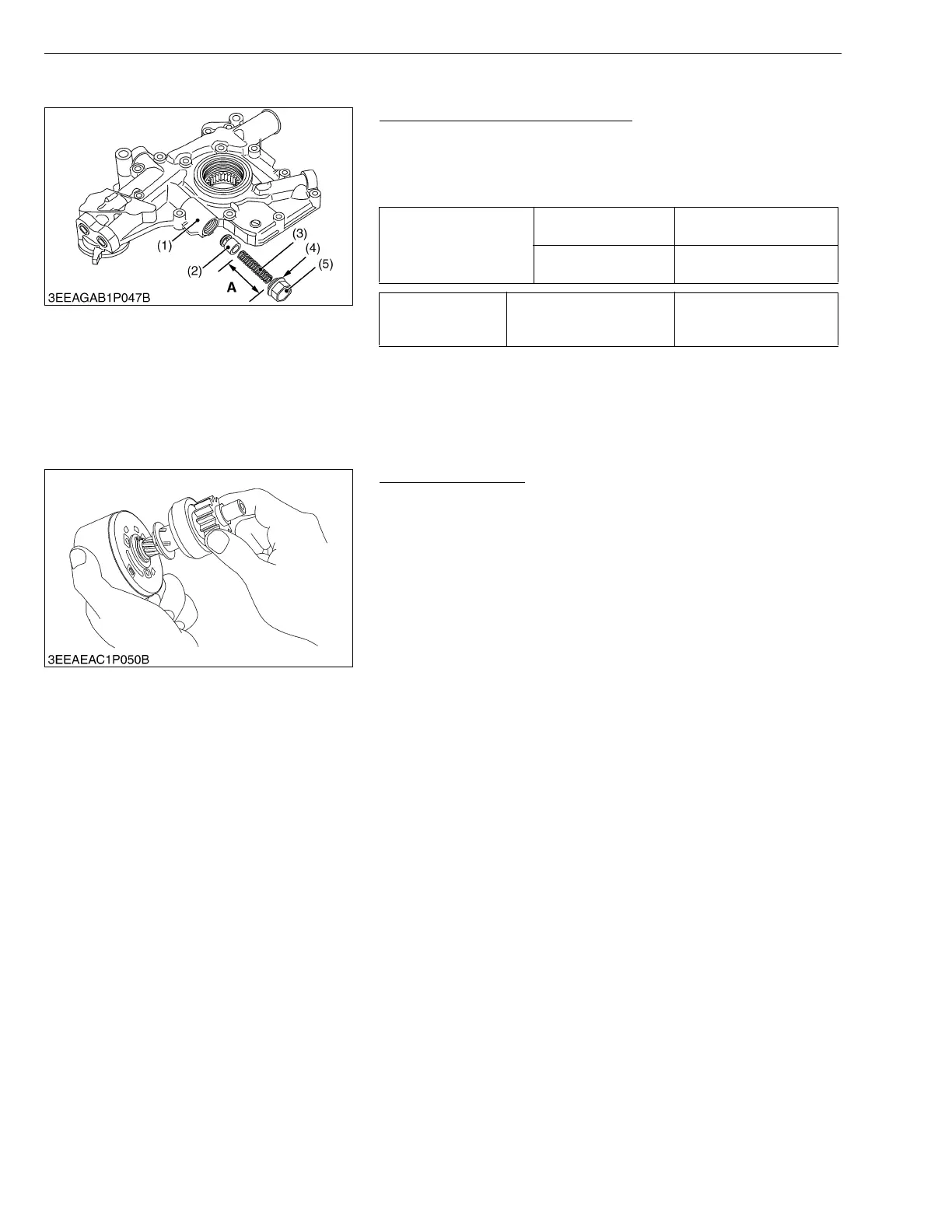

(7) Relief Valve
Free Length of Relief Valve Spring
1. Measure the free length (A) with vernier calipers. If the
measurement is less than the allowable limit, replace it.
2. Check the entire surface of the spring for scratches. Replace it,
if any.
W1265606
(8) Starter
Overrunning Clutch
1. Inspect the pinion for wear or damage.
2. If there is any defect, replace the overrunning clutch assembly.
3. Check that the pinion turns freely and smoothly in the
overrunning direction and does not slip in the cranking direction.
4. If the pinion slips or does not rotate in the both directions, replace
the overrunning clutch assembly.
W1075769
Free length (A)
Factory spec.
60.0 to 60.5 mm
2.37 to 2.38 in.
Allowable limit
55.0 mm
2.17 in.
Tightening torque
Relief valve retaining
screw
69 to 78 N·m
7.0 to 8.0 kgf·m
51 to 57 lbf·ft
(1) Front Cover
(2) Relief Valve
(3) Spring
(4) Packing
(5) Relief Valve Retaining Screw
A : Free Length
KiSC issued 01, 2009 A
