S-17
V3307-DI-T-E2B, WSM
ENGINE
(2) Lubricating System

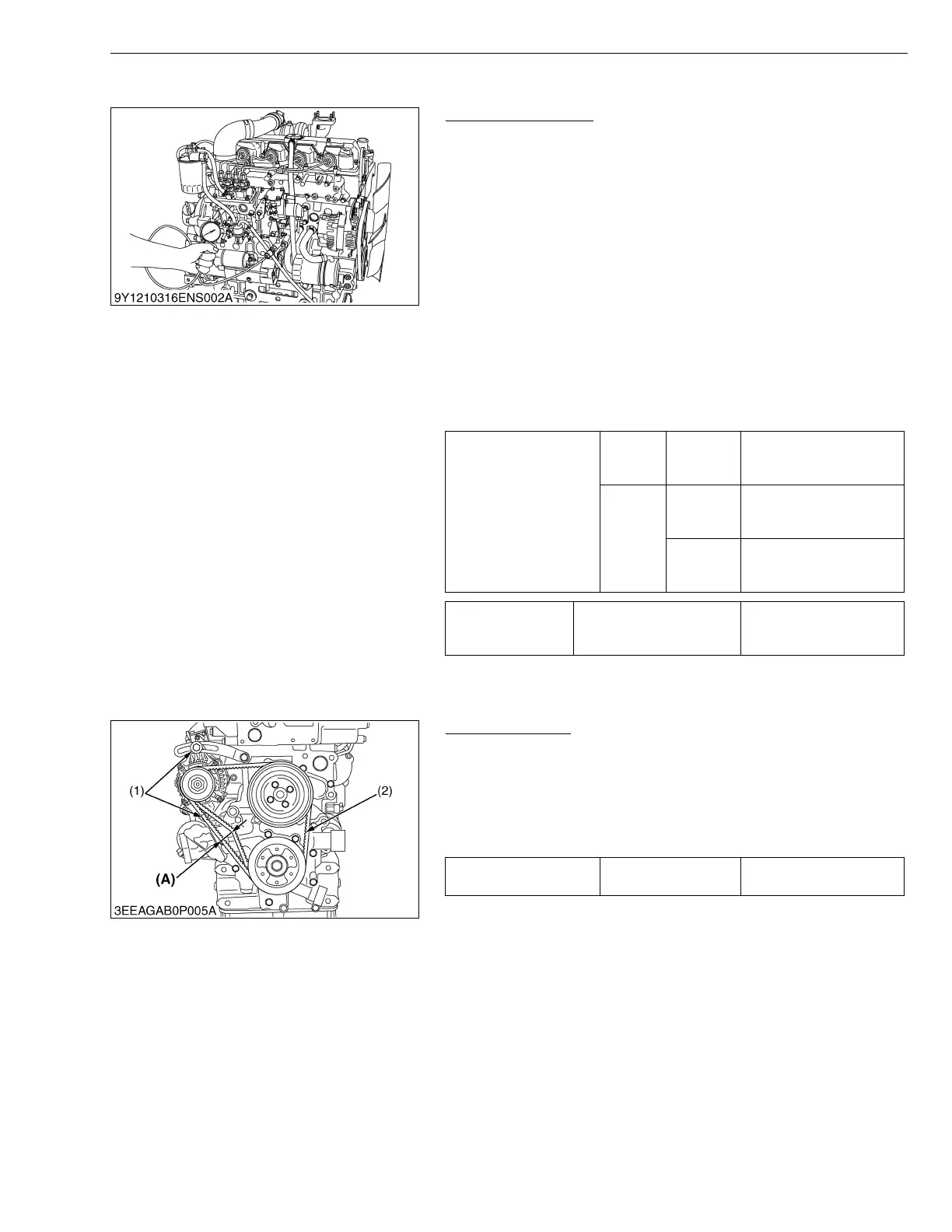

Engine Oil Pressure
1. Remove the oil switch and set a pressure tester (Code No.
07916-32032).
2. Start the engine. After warming up, measure the oil pressure of
both idling and rated speeds.
3. If the oil pressure is less than the allowable limit, check the
following.
• Engine oil insufficient
• Oil pump defective
• Oil strainer clogged
• Oil filter cartridge clogged
• Oil gallery clogged
• Excessive oil clearance
• Foreign matter in the relief valve
(When reassembling)
• After checking the engine oil pressure, tighten the engine oil
pressure switch to the specified torque.
W10349520
(3) Cooling System
Fan Belt Tension
1. Measure the deflection (A), depressing the fan belt (2) halfway
between the fan drive pulley and alternator pulley at specified
force 98 N (10 kgf, 22 lbf).
2. If the measurement is not within the factory specifications, loosen
the alternator mounting screws (1) and relocate the alternator to
adjust.
W1082347
Engine oil pressure
At idle
speed
Allowable
limit
49 kPa
0.50 kgf/cm
2
7.1 psi
At rated
speed
Factory
spec.
197 to 392 kPa
2.00 to 4.00 kgf/cm
2
28.5 to 56.8 psi
Allowable
limit
147 kPa
1.50 kgf/cm
2
21.3 psi
Tightening torque Oil switch taper screw
15 to 19 N·m
1.5 to 2.0 kgf·m
11 to 14 lbf·ft
Deflection (A) Factory spec.
10.0 to 12.0 mm
0.394 to 0.472 in.
(1) Alternator Mounting Screw
(2) Fan Belt
(A) Deflection
To Next Page
