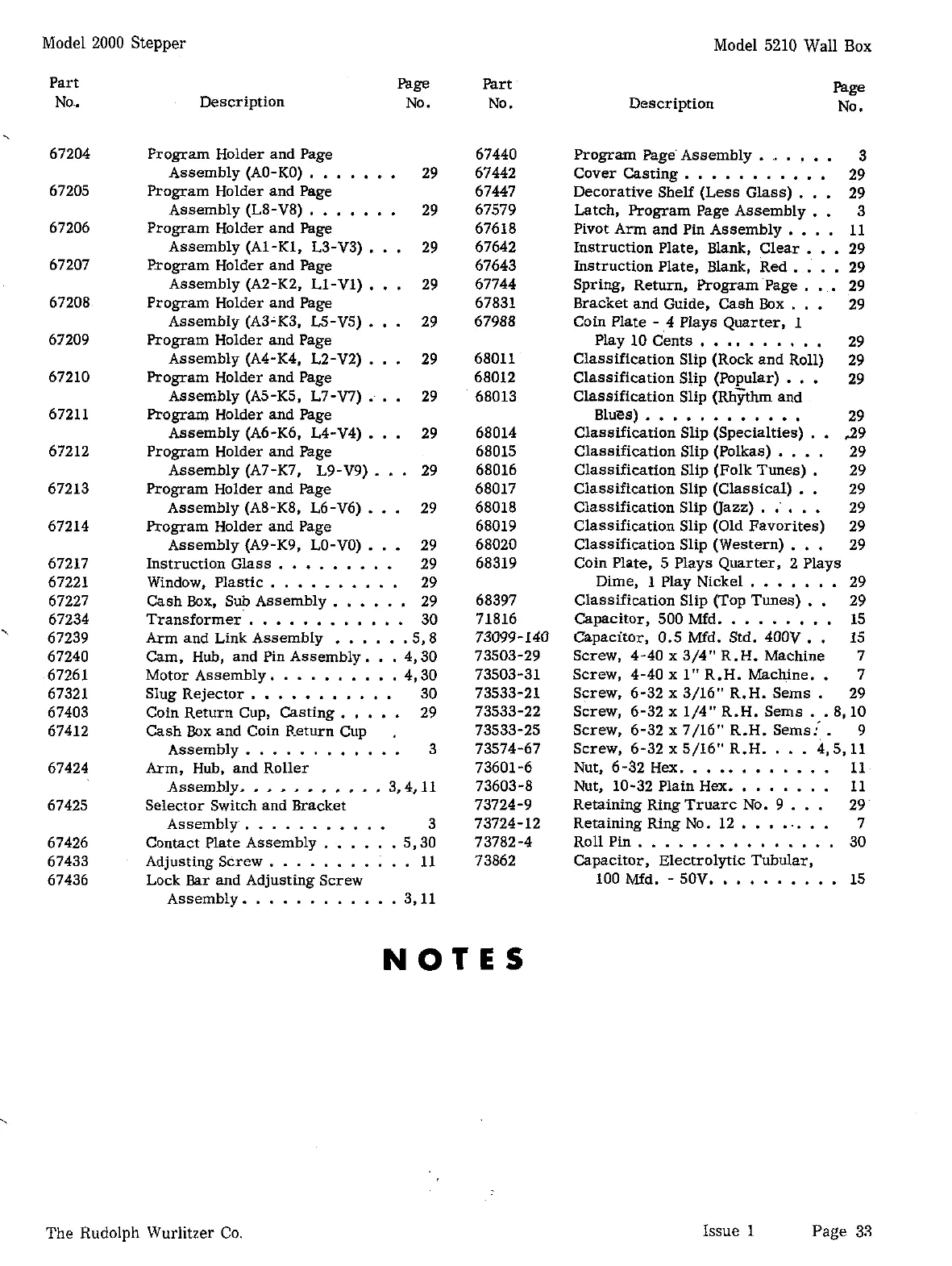

Wurlitzer 5210 - Page 35

Model 2000
Part
No.
Stepper
Model
5210 Wall Box
Page Part
Description
Page
No. No. Description No.
Program Holder and Page
Assembly (AO-KO)
. . . . . . . 29
Program Holder and Page
Assembly
(L8-V8) . . . . . . . 29
Program Holder and Page
Assembly
(Al-K1, L3-V3) . . .
29
Program Holder and Page
Assembly
(A2-K2, L1-Vl) . . .
29
Program Holder and
Page
Assembly (A3-K3, L5-V5) . . .
29
Program Holder and Page
Assembly (A4-K4,
L2-V2) . . .
29
Program Holder and Page
Assembly
(A5-K5, L7-V7). . .
29
Program Holder and
Page
Assembly (A6-K6, L4-V4) . . .
29
Program Holder and
Page
Assembly (A7-K7, L9-V9). . . 29
Program Holder and
Page
Assembly (A8-K8, L6-V6) . . .
29
Program Holder and Page
Assembly (A9-K9, LO-VO)
. . .
29
Instruction Glass
. . . . . . . . . 29
Window, Plastic
. . . . . . . . . . 29
Cash Box, Sub Assembly
. . . . . .
29
Transformer
. . . . . . . . . . . . 30
Arm and Link Assembly
. . . . . .5,8
Cam. Hub, and Pin Assembly. . . 4,30
Motor Assembly. . . . . .
.
. . . 4,30
Slug Rejector . . . . . . . . . . . 30
Coin Return Cup, Casting
. . . . . 29
Cash Box and Coin
R.eturn Cup
.
Assembly. . . . . . . . . . . .
3
Arm, Hub, and Roller
Assembly.
. . . . . . . . . . 3,4,11
Selector Switch and Bracket
Assembly
. . . . . . . . . . . 3
Contact Plate Assembly
. . . . . . 5.30
Adjusting Screw
. . . . . . . . . . . 11
Lock Bar and Adjusting Screw
Assembly.
. . . . . . . . . . . 3.11
Program Page Assembly
. . . . . . 3
Cover Casting
. . . . . . . . . . . 29
Decorative Shelf (Less Glass)
. . . 29
Latch, Program Page Assembly
. . 3
Pivot Arm and Pin Assembly . . . . 11
Instruction Plate, Blank, Clear . . . 29
Instruction Plate, Blank, Red
. . . . 29
Spring, Return, Program Page
. . . 29
Bracket and Guide, Cash Box
. . . 29
Coin Plate
- 4 Plays Quarter, 1
Play 10 Cents . . . . . . . . . .
29
Classification Slip (Rock and Roll)
29
Classification Slip (Popular)
. . .
29
Classification Slip
(~h-ythm and
Blues)
. . . . . . . . . . . .
29
Classification Slip (Specialties)
. . 29
Classification Slip (Polkas) . . . . 29
Classification Slip (Folk Tunes)
. 29
Classification Slip (Classical)
. . 29
Classification Slip (Jazz)
. : . . . 29
Classification Slip (Old Favorites) 29
Classification Slip (Western)
. . . 29
Coin Plate, 5 Plays Quarter, 2 Plays
Dime,
1 Play Nickel . . . . . . . 29
Classification Slip (Top Tunes)
. . 29
Capacitor, 500 Mfd.
. . . . . . . . 15
Capacitor, 0.5 Mfd. Std. 400V
. . 15
Screw, 4-40 x
3/4" R.H. Machine 7
Screw,4-40xl"R.H.Machine.. 7
Screw, 6-32 x
3/16" R.H. Sems . 29
Screw, 6-32 x
1/4" R.H. Sems . . 8.10
Screw, 6-32 x 7/16" R.H. Sems: . 9
Screw, 6-32 x 5/16" R.H.
. . . 4.5.11
Nut, 6-32Hex. . . .. . . . . . . . 11
Nut, 10-32 Plain Hex. . . . . . . . 11
Retaining Ring Truarc No. 9 . . . 29
Retaining Ring No. 12
. . . . . . . 7
Roll Pin
. . . . . . . . . . . . . . . 30
Capacitor, Electrolytic Tubular,
100 Mfd.
- 50V. . . . . . . . . . 15
