MODEL 5210 - 200 SELECTION WALL BOX

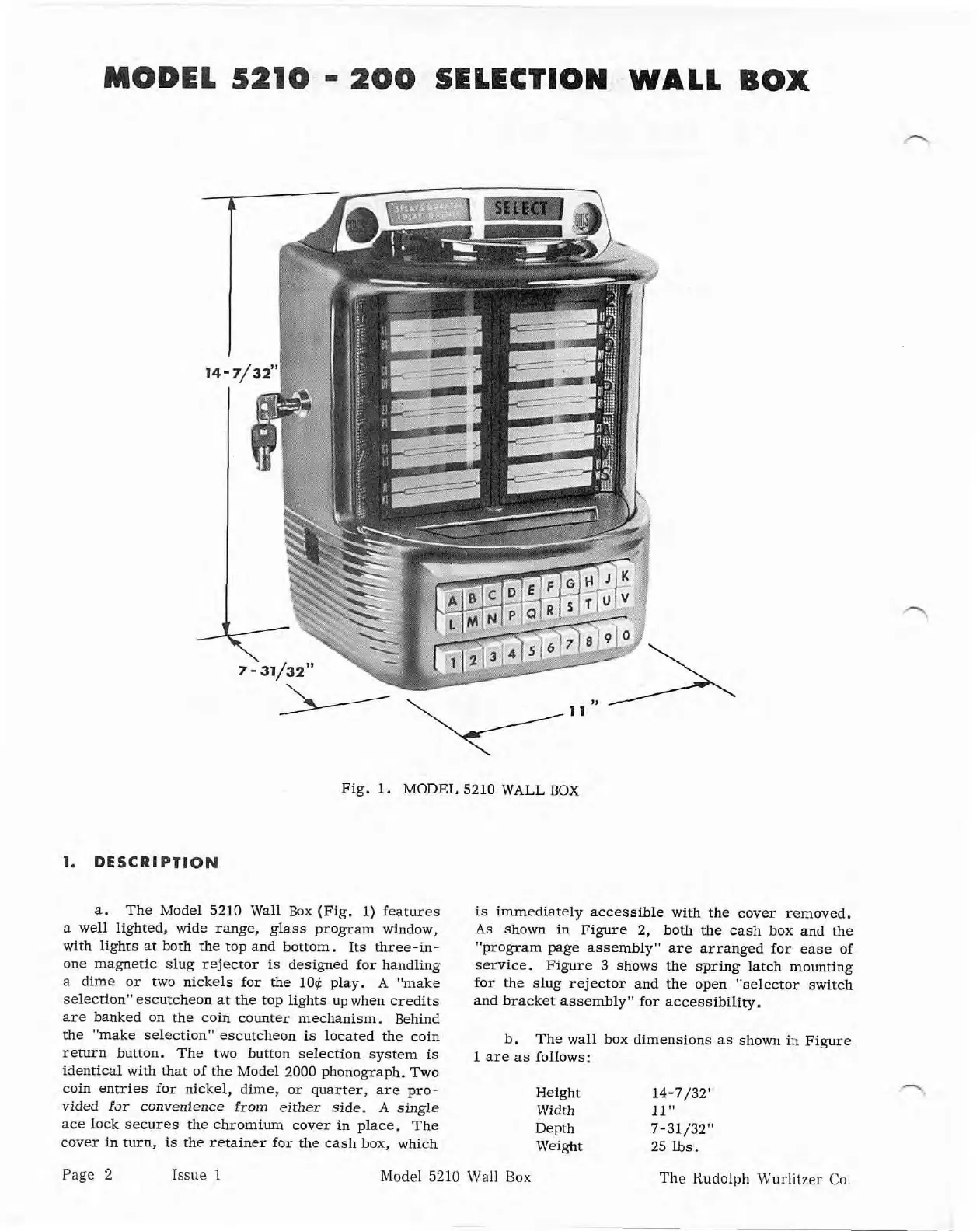

Fig. 1. MODEL 5210 WALL BOX
1. DESCRIPTION
a. The Model 5210 Wall Box (Fig. 1) features is immediately accessible with the cover removed.
a well lighted, wide range, glass program window, As shown in Figure
2, both the cash box and the
with lights at both the top and bottom. Its three-in-
"program page assembly" are arranged for ease of
one magnetic slug rejector
is designed for handling
service. Figure
3 shows the spring latch mounting
a dime or two nickels for the
10$ play. A "make
for the slug rejector and the open "selector switch
selection" escutcheon at the top lights upwben credits
and bracket assembly" for accessibility.
are banked on the coin counter mechanism. Behind
the "make selection" escutcheon
is located the coin
b.
The wall box dimensions as shown in Figure
return button. The two button selection system is
1 are as follows:
identical with that of the Model 2000 phonograph. Two
coin entries for nickel, dime, or quarter,
are pro- Height 14-7/32" ?
vided for convenience from either side. A single Width 11"
ace lock secures the chromium cover in place. The
Depth
7-31/32"
cover in turn, is the retainer for the cash box, which
Weight
25 lbs.
Page 2 Issue 1 Model 5210 Wall Box The Rudolph Wurlitzer Co.
