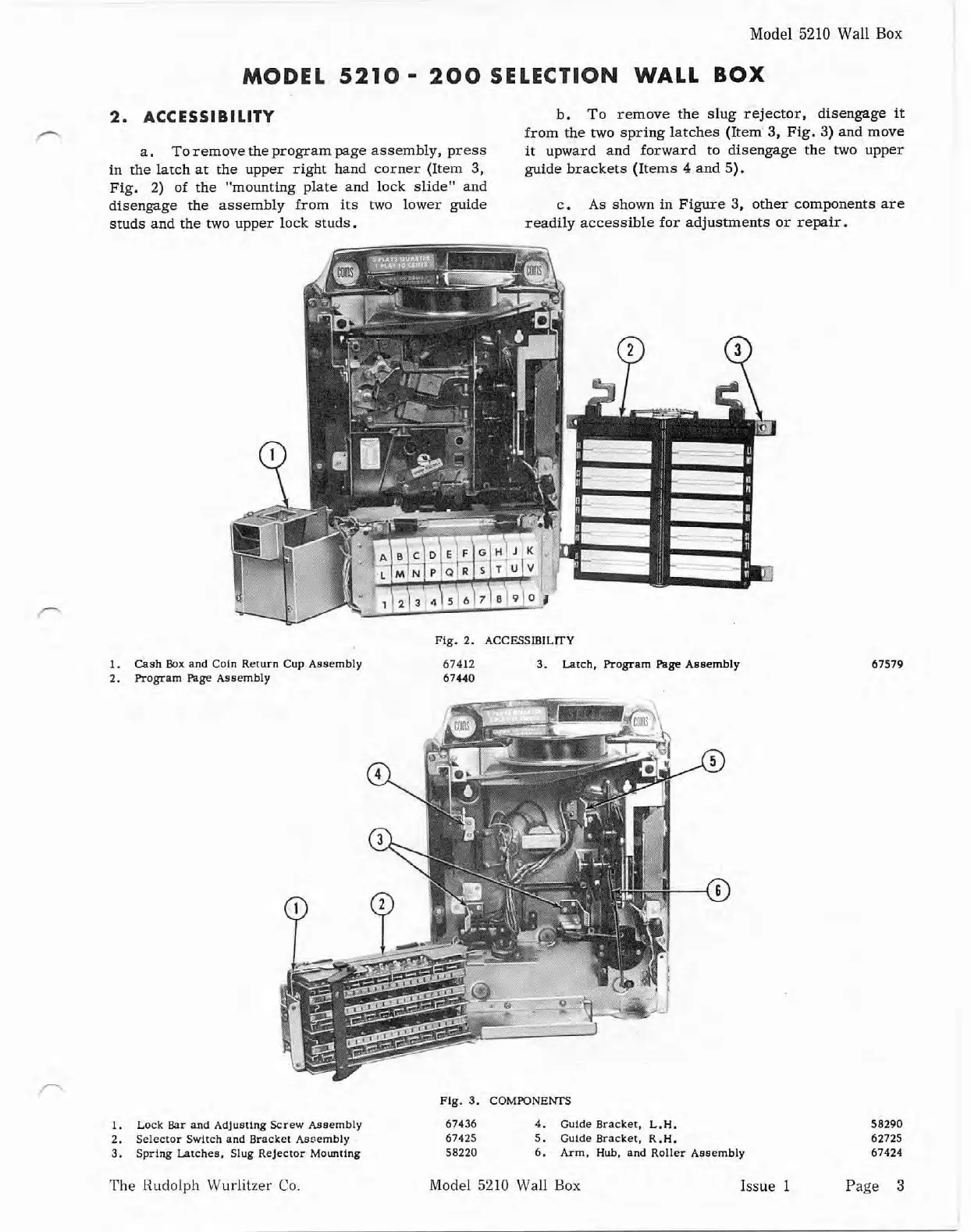

MODEL 5210 - 200 SELECTION WALL BOX
2. ACCESSIBILITY b. To remove the slug rejector, disengage it
P.
from the two spring latches (Item' 3, Fig. 3) and move
a. To remove the program page assembly, press it upward and forward to disengage the two upper
in the latch at the upper right hand corner (Item 3,
guide brackets (Items
4 and 5).
Fig. 2) of the "mounting plate and lock slide" and
disengage the assembly from its
two lower guide c. As shown in Figure 3, other components are
studs and the two upper lock studs.
readily accessible for adjustments or repair.
Pfg. 2. ACCFSSIBIL~Y
1. Cash Box and Cotn Rerurn Cup Assembly 67412 3. Latch. Rogram Fag Assembly
2. Rogram Pap Assembly 67440
1.
Lock Bar and Adlustlng Screw Assembly 67436 4. Gulde Bracket, L.H.
2. Selector Switch and Bracket Assembly 67425 5.
Gulde Bracket. R.H.
3. Spring Latches. Slug Relector Mormrlng 58220 6.
Arm, Hub, end Roller
Aasembly
The Rudolph Wurlitzer Co. Model 5210 Wall Box Issue 1 Page 3
